Defines the content and apply logic of transactional operatrions. More...

Detailed Description

Defines the content and apply logic of transactional operatrions.

Each loggable operation defines a struct XxxLogType that has the following methods:

"populate" method to populate all properties, but the method is not overridden and its signature varies. This is just to have a uniform method name for readability.
One of the 3 apply methods as follows. These also populate xct_order in log if applicable (remember, XctId or xct_order is finalized only at commit time, so populate() can't do it).
void apply_engine(Thread*) : For engine-wide operation.
void apply_storage(Engine*, StorageId) : For storage-wide operation.
void apply_record(Thread*, StorageId, RwLockableXctId*, char*) : For record-wise operation.
void assert_valid() : For debugging (should have no cost in NDEBUG).
is_engine_log()/is_storage_log()/is_record_log()
ostream operator, preferably in xml format.

For non-applicable apply-type, the implmentation class should abort. Remember that these are all non-virtual methods. See the next section for more details.

No polymorphism: There is no polymorphism guaranteed for log types. Because we read/write just a bunch of bytes and do reinterpret_cast, there is no dynamic type information. We of course can't afford instantiating objects for each log entry, either. Do not use any override in log type classes. You should even delete all constructors to avoid misuse (see LOG_TYPE_NO_CONSTRUCT(clazz) ). We do have base classes (EngineLogType, StorageLogType, and RecordLogType), but this is only to reduce typing. No virtual methods.

Current List of LogType: See foedus::log::LogCode

log_type.hpp and log_type_invoke.hpp: This file defines only log codes and names, so quite compact even after preprocessing. On the other hand, log_type_invoke.hpp defines more methods that need to include a few more headers, so its size is quite big after proprocessing. Most places should need only log_type.hpp. Include log_type_invoke.hpp only where we invoke apply/ostream etc.

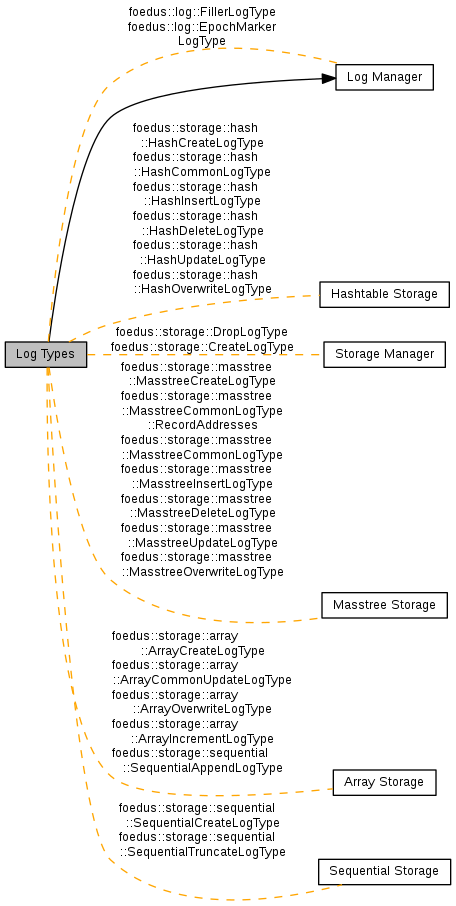

Collaboration diagram for Log Types:

Classes
struct	foedus::log::LogHeader
	A common header part for all log types. More...

struct	foedus::log::BaseLogType
	Base class for log type. More...

struct	foedus::log::EngineLogType
	Base class for log type of engine-wide operation. More...

struct	foedus::log::StorageLogType
	Base class for log type of storage-wide operation. More...

struct	foedus::log::RecordLogType
	Base class for log type of record-wise operation. More...

struct	foedus::log::FillerLogType
	A dummy log type to fill up a sector in log files. More...

struct	foedus::log::EpochMarkerLogType
	A log type to declare a switch of epoch in a logger or the engine. More...

struct	foedus::storage::array::ArrayCreateLogType
	Log type of CREATE ARRAY STORAGE operation. More...

struct	foedus::storage::array::ArrayCommonUpdateLogType
	A base class for ArrayOverwriteLogType/ArrayIncrementLogType. More...

struct	foedus::storage::array::ArrayOverwriteLogType
	Log type of array-storage's overwrite operation. More...

struct	foedus::storage::array::ArrayIncrementLogType
	Log type of array-storage's increment operation. More...

struct	foedus::storage::hash::HashCreateLogType
	Log type of CREATE HASH STORAGE operation. More...

struct	foedus::storage::hash::HashCommonLogType
	A base class for HashInsertLogType/HashDeleteLogType/HashOverwriteLogType. More...

struct	foedus::storage::hash::HashInsertLogType
	Log type of hash-storage's insert operation. More...

struct	foedus::storage::hash::HashDeleteLogType
	Log type of hash-storage's delete operation. More...

struct	foedus::storage::hash::HashUpdateLogType
	Log type of hash-storage's update operation. More...

struct	foedus::storage::hash::HashOverwriteLogType
	Log type of hash-storage's overwrite operation. More...

struct	foedus::storage::masstree::MasstreeCreateLogType
	Log type of CREATE MASSTREE STORAGE operation. More...

struct	foedus::storage::masstree::MasstreeCommonLogType::RecordAddresses

struct	foedus::storage::masstree::MasstreeCommonLogType
	A base class for MasstreeInsertLogType/MasstreeDeleteLogType/MasstreeOverwriteLogType. More...

struct	foedus::storage::masstree::MasstreeInsertLogType
	Log type of masstree-storage's insert operation. More...

struct	foedus::storage::masstree::MasstreeDeleteLogType
	Log type of masstree-storage's delete operation. More...

struct	foedus::storage::masstree::MasstreeUpdateLogType
	Log type of masstree-storage's update operation. More...

struct	foedus::storage::masstree::MasstreeOverwriteLogType
	Log type of masstree-storage's overwrite operation. More...

struct	foedus::storage::sequential::SequentialCreateLogType
	Log type of CREATE SEQUENTIAL STORAGE operation. More...

struct	foedus::storage::sequential::SequentialTruncateLogType
	Log type of TRUNCATE SEQUENTIAL STORAGE operation. More...

struct	foedus::storage::sequential::SequentialAppendLogType
	Log type of sequential-storage's append operation. More...

struct	foedus::storage::DropLogType
	Log type of DROP STORAGE operation. More...

struct	foedus::storage::CreateLogType
	Base type for CREATE STORAGE operation. More...

Macros
#define	LOG_TYPE_NO_CONSTRUCT(clazz)
	Macro to delete all constructors/destructors to prevent misuse for log type classes. More...

Enumerations
enum	foedus::log::LogCode { foedus::log::kLogCodeInvalid = 0, foedus::log::kLogCodeFiller = 0x3001, foedus::log::kLogCodeEpochMarker = 0x3002, foedus::log::kLogCodeDropLogType = 0x1011, foedus::log::kLogCodeArrayCreate = 0x1021, foedus::log::kLogCodeArrayOverwrite = 0x0022, foedus::log::kLogCodeArrayIncrement = 0x0023, foedus::log::kLogCodeSequentialTruncate = 0x1024, foedus::log::kLogCodeSequentialCreate = 0x1025, foedus::log::kLogCodeSequentialAppend = 0x0026, foedus::log::kLogCodeHashCreate = 0x1027, foedus::log::kLogCodeHashOverwrite = 0x0028, foedus::log::kLogCodeHashInsert = 0x0029, foedus::log::kLogCodeHashDelete = 0x002A, foedus::log::kLogCodeHashUpdate = 0x002B, foedus::log::kLogCodeMasstreeCreate = 0x1031, foedus::log::kLogCodeMasstreeOverwrite = 0x0032, foedus::log::kLogCodeMasstreeInsert = 0x0033, foedus::log::kLogCodeMasstreeDelete = 0x0034, foedus::log::kLogCodeMasstreeUpdate = 0x0035 }
	A unique identifier of all log types. More...

enum	foedus::log::LogCodeKind { foedus::log::kRecordLogs = 0, foedus::log::kStorageLogs = 1, foedus::log::kEngineLogs = 2, foedus::log::kMarkerLogs = 3 }
	Represents the kind of log types. More...

Functions
LogCodeKind	foedus::log::get_log_code_kind (LogCode code)
	Returns the kind of the given log code. More...

bool	foedus::log::is_valid_log_type (LogCode code)
	Returns if the LogCode value exists. More...

const char *	foedus::log::get_log_type_name (LogCode code)
	Returns the names of LogCode enum defined in log_type.xmacro. More...

template<typename LOG_TYPE >
constexpr LogCode	foedus::log::get_log_code ()
	Returns LogCode for the log type defined in log_type.xmacro. More...

void	foedus::log::invoke_apply_engine (void log_buffer, thread::Thread context)
	Invokes the apply logic for an engine-wide log type. More...

void	foedus::log::invoke_apply_storage (void log_buffer, Engine engine, storage::StorageId id)
	Invokes the apply logic for a storage-wide log type. More...

void	foedus::log::invoke_apply_record (void log_buffer, thread::Thread context, storage::StorageId storage_id, xct::RwLockableXctId owner_id_address, char payload_address)
	Invokes the apply logic for a record-wise log type. More...

void	foedus::log::invoke_assert_valid (void *log_buffer)
	Invokes the assertion logic of each log type. More...

void	foedus::log::invoke_ostream (const void buffer, std::ostream ptr)
	Invokes the ostream operator for the given log type defined in log_type.xmacro. More...

Class Documentation

struct foedus::storage::masstree::MasstreeCommonLogType::RecordAddresses

Definition at line 211 of file masstree_log_types.hpp.

Class Members
char *	record_payload_
PayloadLength *	record_payload_count_

Macro Definition Documentation

#define LOG_TYPE_NO_CONSTRUCT ( clazz )

Value:

clazz() CXX11_FUNC_DELETE;\
  clazz(const clazz &other) CXX11_FUNC_DELETE;\
  ~clazz() CXX11_FUNC_DELETE;

Macro to delete all constructors/destructors to prevent misuse for log type classes.

Definition at line 103 of file common_log_types.hpp.

Enumeration Type Documentation

enum foedus::log::LogCode

A unique identifier of all log types.

Log code values must follow the convention. Most significant 4 bits are used to denote the kind of the log:

0x0000: record targetted logs
0x1000: storage targetted logs
0x2000: engine targetted logs
0x3000: markers/fillers
~0xF000 (reserved for future use)

Enumerator
kLogCodeInvalid	0 is reserved as a non-existing log type.
kLogCodeFiller	0x3001 : foedus::log::FillerLogType . A dummy log type to fill up a sector in log files. As we do direct I/O, we must do file I/O in multiply of 4kb. We pad the log buffer we are about to write with this log type. Log gleaner simply skips this log. This is the only log type whose size might be smaller than sizeof(FillerLogType). This happens because the common log header is 16 bytes but we have to make this log type 8 bytes able to fill every gap. For this reason, the xct_id_ property of this log must not be used.
kLogCodeEpochMarker	0x3002 : foedus::log::EpochMarkerLogType . A log type to declare a switch of epoch in a logger or the engine. Each logger puts this marker when it switches epoch. When applied, this just adds epoch switch history which is maintained until related logs are gleaned and garbage collected. The epoch switch history is used to efficiently identify the beginning of each epoch in each logger. This is useful for example when we take samples from each epoch. Now that we contain XctId in every log, it's not necessary to put this marker. However, having this log makes a few things easier; the epoch history management for seeking to beginning of a specific epoch and several sanity checks. So, we still keep this log. It's anyway only occadionally written, so no harm. Every log file starts with an epoch mark for this reason, too.
kLogCodeDropLogType	0x1011 : foedus::storage::DropLogType . Log type of DROP STORAGE operation. This log corresponds to StorageManager::drop_storage() opereation. DROP STORAGE has no in-epoch transaction order. It is always processed in a separate epoch from operations for the storage. Thus, we advance epoch before and after dropping a storage.
kLogCodeArrayCreate	0x1021 : foedus::storage::array::ArrayCreateLogType . Log type of CREATE ARRAY STORAGE operation. This log corresponds to StorageManager::create_array() opereation. CREATE ARRAY STORAGE has no in-epoch transaction order. It is always processed in a separate epoch from operations for the storage. Thus, we advance epoch right after creating a storage (before following operations). This log type is infrequently triggered, so no optimization. All methods defined in cpp.
kLogCodeArrayOverwrite	0x0022 : foedus::storage::array::ArrayOverwriteLogType . Log type of array-storage's overwrite operation. This is a modification operation in array. It simply invokes memcpy to the payload.
kLogCodeArrayIncrement	0x0023 : foedus::storage::array::ArrayIncrementLogType . Log type of array-storage's increment operation. This is similar to overwrite, but different in a sense that this can do value-increment without relying on the current value. For that, we remember the addendum in primitive format.
kLogCodeSequentialTruncate	0x1024 : foedus::storage::sequential::SequentialTruncateLogType . Log type of TRUNCATE SEQUENTIAL STORAGE operation. This log corresponds to SequentialStorage::truncate() operation. Like SequentialCreateLogType, this is a metadata operation. This log type is infrequently triggered, so no optimization. All methods defined in cpp.
kLogCodeSequentialCreate	0x1025 : foedus::storage::sequential::SequentialCreateLogType . Log type of CREATE SEQUENTIAL STORAGE operation. This log corresponds to StorageManager::create_sequential() operation. CREATE STORAGE has no in-epoch transaction order. It is always processed in a separate epoch from operations for the storage. Thus, we advance epoch right after creating a storage (before following operations). This log type is infrequently triggered, so no optimization. All methods defined in cpp.
kLogCodeSequentialAppend	0x0026 : foedus::storage::sequential::SequentialAppendLogType . Log type of sequential-storage's append operation. This is the only record-level operation in sequential storage. It simply appends the the end with an atomic operation.
kLogCodeHashCreate	0x1027 : foedus::storage::hash::HashCreateLogType . Log type of CREATE HASH STORAGE operation. This log corresponds to StorageManager::create_hash() opereation. CREATE HASH STORAGE has no in-epoch transaction order. It is always processed in a separate epoch from operations for the storage. Thus, we advance epoch right after creating a storage (before following operations). This log type is infrequently triggered, so no optimization. All methods defined in cpp.
kLogCodeHashOverwrite	0x0028 : foedus::storage::hash::HashOverwriteLogType . Log type of hash-storage's overwrite operation. This is one of the modification operations in hash. It simply invokes memcpy to the payload.
kLogCodeHashInsert	0x0029 : foedus::storage::hash::HashInsertLogType . Log type of hash-storage's insert operation. Applying this log just flips the delete flag and installs the payload. Allocating the slot and modifying the bloom filter is already done by a system transaction.
kLogCodeHashDelete	0x002A : foedus::storage::hash::HashDeleteLogType . Log type of hash-storage's delete operation. This one does nothing but flipping delete bit.
kLogCodeHashUpdate	0x002B : foedus::storage::hash::HashUpdateLogType . Log type of hash-storage's update operation. Applying this log changes the logical payload size and installs the payload, keeping the delete flag (which must be false). Allocating the slot and modifying the bloom filter is already done by a system transaction. Also, the record's physical size must be guaranteed to be enough spacious.
kLogCodeMasstreeCreate	0x1031 : foedus::storage::masstree::MasstreeCreateLogType . Log type of CREATE MASSTREE STORAGE operation. This log corresponds to StorageManager::create_masstree() opereation. CREATE STORAGE has no in-epoch transaction order. It is always processed in a separate epoch from operations for the storage. Thus, we advance epoch right after creating a storage (before following operations). This log type is infrequently triggered, so no optimization. All methods defined in cpp.
kLogCodeMasstreeOverwrite	0x0032 : foedus::storage::masstree::MasstreeOverwriteLogType . Log type of masstree-storage's overwrite operation. Same as insert log.
kLogCodeMasstreeInsert	0x0033 : foedus::storage::masstree::MasstreeInsertLogType . Log type of masstree-storage's insert operation. This is different from hash. In MasstreeBorderPage, we atomically increment the physical record count, set the key, set slot, leaves it as deleted, then unlock the page lock. When we get to here, the record already has key set and has reserved slot.
kLogCodeMasstreeDelete	0x0034 : foedus::storage::masstree::MasstreeDeleteLogType . Log type of masstree-storage's delete operation. This one does nothing but flipping delete bit.
kLogCodeMasstreeUpdate	0x0035 : foedus::storage::masstree::MasstreeUpdateLogType . Log type of masstree-storage's update operation. Almost same as insert except this keeps the delete-flag, which must be off.

Definition at line 87 of file log_type.hpp.

              {
   kLogCodeInvalid = 0,
 #include "foedus/log/log_type.xmacro" // NOLINT
 };

enum foedus::log::LogCodeKind

Represents the kind of log types.

This is the most significant 4 bits of LogCode.

Enumerator
kRecordLogs	record targetted logs
kStorageLogs	storage targetted logs
kEngineLogs	engine targetted logs
kMarkerLogs	markers/fillers

Definition at line 101 of file log_type.hpp.

                  {
   kRecordLogs = 0,
   kStorageLogs = 1,
   kEngineLogs = 2,
   kMarkerLogs = 3,
 };

Function Documentation

template<typename LOG_TYPE >

constexpr LogCode foedus::log::get_log_code ( )

Returns LogCode for the log type defined in log_type.xmacro.

This is inlined below because it's called VERY frequently. This method is declared as constexpr if C++11 is enabled, in which case there should be really no overheads to call this method.

LogCodeKind foedus::log::get_log_code_kind ( LogCode code )

inline

Returns the kind of the given log code.

This is inlined here because it's called frequently.

Definition at line 118 of file log_type.hpp.

Referenced by foedus::log::LogHeader::get_kind().

                                                    {
   return static_cast<LogCodeKind>(code >> 12);
 }

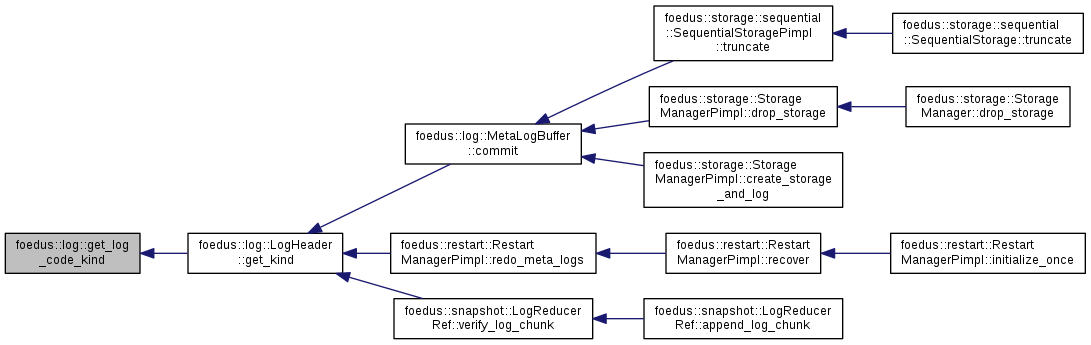

Here is the caller graph for this function:

const char * foedus::log::get_log_type_name ( LogCode code )

Returns the names of LogCode enum defined in log_type.xmacro.

This is NOT inlined because this is used only in debugging situation.

Definition at line 28 of file log_type.cpp.

References foedus::log::kLogCodeInvalid.

Referenced by foedus::log::operator<<().

                                             {
   switch (code) {
     case kLogCodeInvalid: return "kLogCodeInvalid";
 #include "foedus/log/log_type.xmacro" // NOLINT
     default: return "UNKNOWN";
   }
 }

Here is the caller graph for this function:

void foedus::log::invoke_apply_engine	(	void *	log_buffer,
		thread::Thread *	context
	)

Invokes the apply logic for an engine-wide log type.

This is not inlined because this log kind appears much more infrequently.

Definition at line 26 of file log_type_invoke.cpp.

References ASSERT_ND, foedus::log::LogHeader::get_type(), and foedus::log::invoke_assert_valid().

                                                               {
   invoke_assert_valid(buffer);
   LogHeader* header = reinterpret_cast<LogHeader*>(buffer);
   LogCode code = header->get_type();
   switch (code) {
 #include "foedus/log/log_type.xmacro" // NOLINT
     default:
       ASSERT_ND(false);
       return;
   }
 }

Here is the call graph for this function:

void foedus::log::invoke_apply_record	(	void *	log_buffer,
		thread::Thread *	context,
		storage::StorageId	storage_id,
		xct::RwLockableXctId *	owner_id_address,
		char *	payload_address
	)

inline

Invokes the apply logic for a record-wise log type.

This is inlined because this is invoked for every single record type log.

Definition at line 89 of file log_type_invoke.hpp.

References ASSERT_ND, foedus::log::LogHeader::get_type(), and foedus::log::invoke_assert_valid().

Referenced by foedus::xct::XctManagerPimpl::precommit_xct_apply().

                  {
   invoke_assert_valid(buffer);
   LogHeader* header = reinterpret_cast<LogHeader*>(buffer);
   LogCode code = header->get_type();
   switch (code) {
 #include "foedus/log/log_type.xmacro" // NOLINT
     default:
       ASSERT_ND(false);
       return;
   }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void foedus::log::invoke_apply_storage	(	void *	log_buffer,
		Engine *	engine,
		storage::StorageId	id
	)

Invokes the apply logic for a storage-wide log type.

This is not inlined because this log kind appears much more infrequently.

Definition at line 41 of file log_type_invoke.cpp.

References ASSERT_ND, foedus::log::LogHeader::get_type(), and foedus::log::invoke_assert_valid().

                                                                                      {
   invoke_assert_valid(buffer);
   LogHeader* header = reinterpret_cast<LogHeader*>(buffer);
   LogCode code = header->get_type();
   switch (code) {
 #include "foedus/log/log_type.xmacro" // NOLINT
     default:
       ASSERT_ND(false);
       return;
   }
 }

Here is the call graph for this function:

void foedus::log::invoke_assert_valid ( void * log_buffer )

inline

Invokes the assertion logic of each log type.

This is inlined because this is invoked for every single record type log. In non-debug mode, this is anyway empty.

Definition at line 111 of file log_type_invoke.hpp.

References ASSERT_ND, and foedus::log::LogHeader::get_type().

Referenced by foedus::xct::Xct::add_related_write_set(), foedus::xct::Xct::add_to_lock_free_write_set(), foedus::xct::Xct::add_to_read_and_write_set(), foedus::xct::Xct::add_to_write_set(), foedus::log::invoke_apply_engine(), foedus::log::invoke_apply_record(), and foedus::log::invoke_apply_storage().

                                               {
   LogHeader* header = reinterpret_cast<LogHeader*>(buffer);
   LogCode code = header->get_type();
   switch (code) {
 #include "foedus/log/log_type.xmacro" // NOLINT
     default:
       ASSERT_ND(false);
       return;
   }
 }

Here is the call graph for this function:

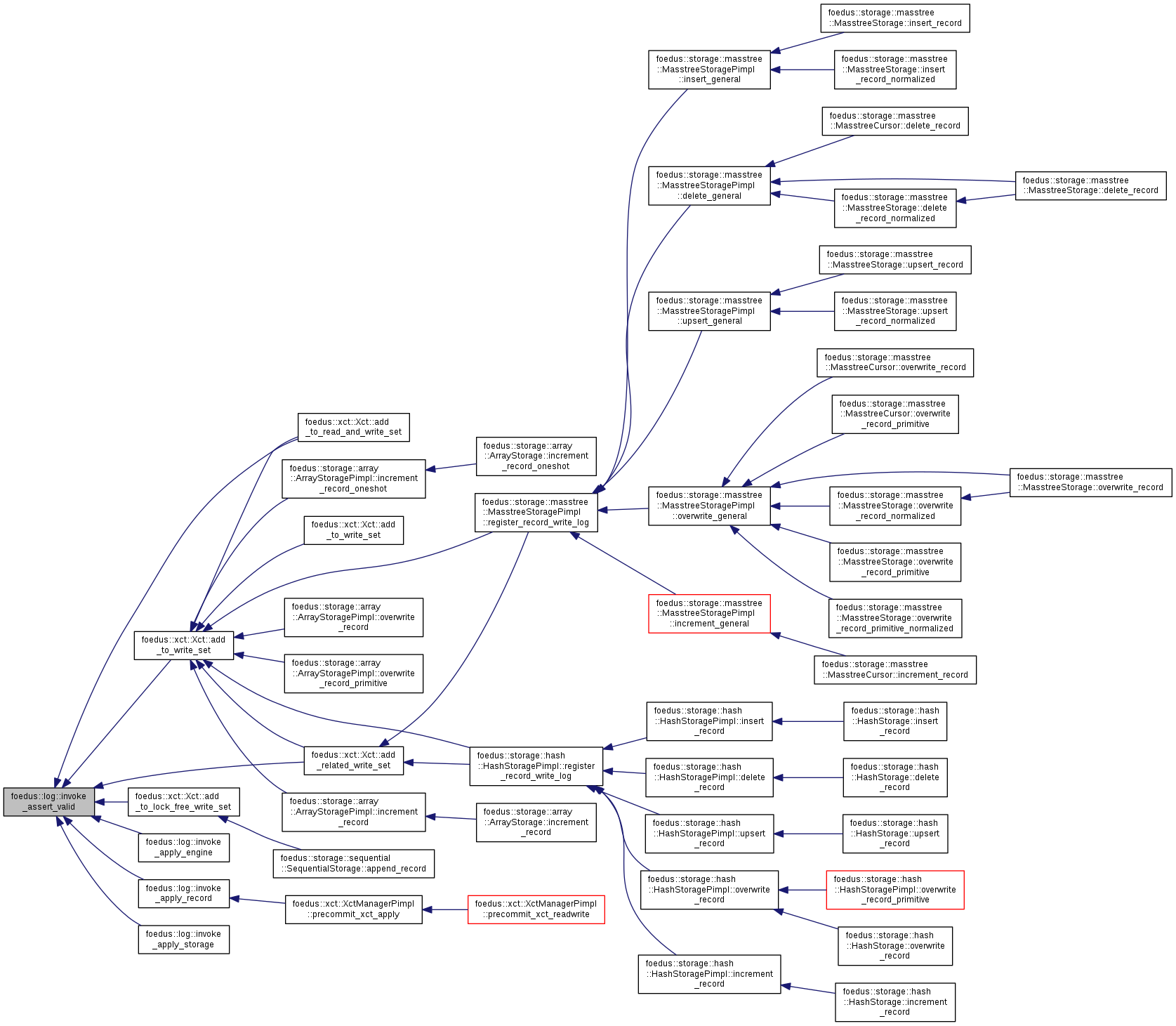

Here is the caller graph for this function:

void foedus::log::invoke_ostream	(	const void *	buffer,
		std::ostream *	ptr
	)

Invokes the ostream operator for the given log type defined in log_type.xmacro.

This is only for debugging and analysis use, so does not have to be optimized. Thus not inlined here. This writes out an XML representation of the log entry.

Definition at line 56 of file log_type_invoke.cpp.

References foedus::log::LogHeader::get_type(), and foedus::log::kLogCodeInvalid.

Referenced by foedus::log::on_non_durable_meta_log_found(), and foedus::xct::operator<<().

                                                          {
   const LogHeader* header = reinterpret_cast<const LogHeader*>(buffer);
   LogCode code = header->get_type();
   std::ostream &o = *ptr;
   switch (code) {
     case kLogCodeInvalid: break;
 #include "foedus/log/log_type.xmacro" // NOLINT
   }
 }

Here is the call graph for this function:

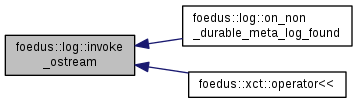

Here is the caller graph for this function:

bool foedus::log::is_valid_log_type ( LogCode code )

inline

Returns if the LogCode value exists.

This is inlined here because it's called frequently.

Definition at line 128 of file log_type.hpp.

Referenced by foedus::log::LogHeader::is_valid_type().

                                             {
   switch (code) {
 #define X(a, b, c) case a: return true;
 #include "foedus/log/log_type.xmacro" // NOLINT
 #undef X
     default: return false;
   }
 }

Here is the caller graph for this function:

Detailed Description

Classes

Macros

Enumerations

Functions

Class Documentation

Macro Definition Documentation

Enumeration Type Documentation

Function Documentation
