Storage Manager, which implements a couple of key/value stores. More...

Detailed Description

Storage Manager, which implements a couple of key/value stores.

This package contains core classes that store key/value pairs. This layer has no idea about what is stored, thus no notion of columns either.

Types of Storage

So far we provide four types of storages; Array Storage, Hashtable Storage, Sequential Storage, and Masstree Storage. Choose the type of storage based on the data to store and access patterns.

Array Storage is extremely simple, fast, and compact (doesn't even store keys), but it only works for arrays that are fix-sized, dense, and regular.
Hashtable Storage is also simple, fast, and yet general except it can't process range accesses.
Sequential Storage is very simple and fast, but it can do only appends and full scans.
Masstree Storage is the most general, addressing all the issues above. But, it's not as simple/fast as others (though optimized as much as possible for many-cores).

General Recommendation: In general, you should use Hashtable Storage or Masstree Storage for most tables/indexes. If the access pattern contains no range accesses, equality on prefix, nor non-equality, then pick Hashtable Storage. Otherwise, Masstree Storage. Use Array Storage and Sequential Storage where they shine; when you literally needs arrays and append-only data.

Collaboration diagram for Storage Manager:

Modules
	Array Storage
	Array Storage, a dense and regular array.

	Hashtable Storage
	Hashtable Storage, a concurrent hashtable.

	Masstree Storage
	Masstree Storage, 64-bit B-tries with internal B-trees.

	Sequential Storage
	Sequential Storage, an append/scan only data structure.

Files
file	fwd.hpp
	Forward declarations of classes in storage package.

file	storage_id.hpp
	Definitions of IDs in this package and a few related constant values.

file	storage_log_types.hpp
	Declares common log types for all (or at least multiple) storage types.

Classes
struct	foedus::storage::Composer::ComposeArguments
	Arguments for compose() More...

struct	foedus::storage::Composer::ConstructRootArguments
	Arguments for construct_root() More...

struct	foedus::storage::Composer::DropVolatilesArguments
	Arguments for drop_volatiles() More...

struct	foedus::storage::Composer::DropResult
	Retrun value of drop_volatiles() More...

class	foedus::storage::Composer
	Represents a logic to compose a new version of data pages for one storage. More...

struct	foedus::storage::Metadata::SnapshotThresholds
	Tuning parameters related to snapshotting. More...

struct	foedus::storage::Metadata
	Metadata of one storage. More...

struct	foedus::storage::PageVersion
	Just a synonym of XctId to be used as a page lock mechanism. More...

struct	foedus::storage::PageHeader
	Just a marker to denote that a memory region represents a data page. More...

struct	foedus::storage::Page
	Just a marker to denote that the memory region represents a data page. More...

struct	foedus::storage::VolatilePageInitArguments
	Set of arguments, both inputs and outputs, given to each volatile page initializer. More...

struct	foedus::storage::Partitioner::DesignPartitionArguments
	Arguments for design_partition() More...

struct	foedus::storage::Partitioner::PartitionBatchArguments
	Arguments for partition_batch() More...

struct	foedus::storage::Partitioner::SortBatchArguments
	Arguments for sort_batch() More...

class	foedus::storage::Partitioner
	Partitioning and sorting logic for one storage. More...

struct	foedus::storage::PartitionerMetadata
	Tiny metadata of partitioner for every storage used while log gleaning. More...

struct	foedus::storage::Record
	Represents one record in our key-value store. More...

struct	foedus::storage::StorageControlBlock
	A base layout of shared data for all storage types. More...

class	foedus::storage::Storage< CONTROL_BLOCK >
	Represents one key-value store. More...

struct	foedus::storage::VolatilePagePointer
	Represents a pointer to a volatile page with modification count for preventing ABA. More...

struct	foedus::storage::DualPagePointer
	Represents a pointer to another page (usually a child page). More...

struct	foedus::storage::DropLogType
	Log type of DROP STORAGE operation. More...

struct	foedus::storage::CreateLogType
	Base type for CREATE STORAGE operation. More...

class	foedus::storage::StorageManager
	Storage Manager class that provides API to create/open/close/drop key-value stores. More...

class	foedus::storage::StorageManagerPimpl
	Pimpl object of StorageManager. More...

struct	foedus::storage::StorageOptions
	Set of options for storage manager. More...

Typedefs
typedef void(*	foedus::storage::VolatilePageInit) (const VolatilePageInitArguments &args)
	A function pointer to initialize a volatile page. More...

typedef uint32_t	foedus::storage::StorageId
	Unique ID for storage. More...

typedef thread::ThreadGroupId	foedus::storage::PartitionId
	As partition=NUMA node, this is just a synonym of foedus::thread::ThreadGroupId. More...

typedef uint64_t	foedus::storage::SnapshotPagePointer
	Page ID of a snapshot page. More...

typedef uint64_t	foedus::storage::SnapshotLocalPageId
	Represents a local page ID in each one snapshot file in some NUMA node. More...

typedef uint32_t	foedus::storage::Checksum
	Checksum of a snapshot page. More...

Enumerations
enum	foedus::storage::PageType { foedus::storage::kUnknownPageType = 0, foedus::storage::kArrayPageType = 1, foedus::storage::kMasstreeIntermediatePageType = 2, foedus::storage::kMasstreeBorderPageType = 3, foedus::storage::kSequentialPageType = 4, foedus::storage::kSequentialRootPageType = 5, foedus::storage::kHashIntermediatePageType = 6, foedus::storage::kHashDataPageType = 7, foedus::storage::kHashComposedBinsPageType = 8, foedus::storage::kDummyLastPageType }
	The following 1-byte value is stored in the common page header. More...

enum	foedus::storage::StorageType { foedus::storage::kInvalidStorage = 0, foedus::storage::kArrayStorage, foedus::storage::kHashStorage, foedus::storage::kMasstreeStorage, foedus::storage::kSequentialStorage }
	Type of the storage, such as hash. More...

enum	foedus::storage::StorageStatus { foedus::storage::kNotExists = 0, foedus::storage::kExists, foedus::storage::kMarkedForDeath }
	Status of a storage. More...

Functions
Page *	foedus::storage::to_page (const void *address)
	super-dirty way to obtain Page the address belongs to. More...

void	foedus::storage::prefetch_page_l2 (const void *page)
	Prefetch a page to L2/L3 cache. More...

const char *	foedus::storage::to_storage_type_name (StorageType type)
	Gives a string representation of StorageType. More...

Variables
const uint16_t	foedus::storage::kPageSize = 1 << 12
	A constant defining the page size (in bytes) of both snapshot pages and volatile pages. More...

Class Documentation

struct foedus::storage::Composer::ComposeArguments

Arguments for compose()

Definition at line 95 of file composer.hpp.

Collaboration diagram for foedus::storage::Composer::ComposeArguments:

[legend]

Class Members
Epoch	base_epoch_	All log entries in this inputs are assured to be after this epoch. Also, it is assured to be within 2^16 from this epoch.
SortedBuffer const	log_streams_	Sorted runs.
uint32_t	log_streams_count_	Number of sorted runs.
SnapshotFileSet *	previous_snapshot_files_	To read existing snapshots.
Page *	root_info_page_	[OUT] Returns pointers and related information that is required to construct the root page. The data format depends on the composer. In all implementations, the information must fit in one page (should be, otherwise we can't have a root page)
SnapshotWriter *	snapshot_writer_	Writes out composed pages.
AlignedMemory *	work_memory_	Working memory to be used in this method. Automatically expand if needed.

struct foedus::storage::Composer::ConstructRootArguments

Arguments for construct_root()

Definition at line 124 of file composer.hpp.

Collaboration diagram for foedus::storage::Composer::ConstructRootArguments:

[legend]

Class Members
LogGleanerResource *	gleaner_resource_	All pre-allocated resouces to help run construct_root(), such as memory buffers.
SnapshotPagePointer *	new_root_page_pointer_	[OUT] Returns pointer to new root snapshot page/
SnapshotFileSet *	previous_snapshot_files_	To read existing snapshots.
const Page const	root_info_pages_	Root info pages output by compose()
uint32_t	root_info_pages_count_	Number of root info pages.
SnapshotWriter *	snapshot_writer_	Writes out composed pages.

struct foedus::storage::VolatilePageInitArguments

Set of arguments, both inputs and outputs, given to each volatile page initializer.

Definition at line 365 of file page.hpp.

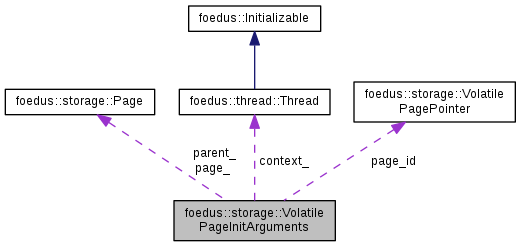

Collaboration diagram for foedus::storage::VolatilePageInitArguments:

[legend]

Class Members
Thread *	context_	[IN] Thread on which the procedure is running
uint16_t	index_in_parent_	[IN] Some index (meaning depends on page type) of pointer in parent page to the new page.
Page *	page_	[IN, OUT] The new page to initialize.
VolatilePagePointer	page_id	[IN] New page ID
const Page *	parent_	[IN] Parent of the new page.

struct foedus::storage::Partitioner::DesignPartitionArguments

Arguments for design_partition()

Definition at line 101 of file partitioner.hpp.

Collaboration diagram for foedus::storage::Partitioner::DesignPartitionArguments:

[legend]

Class Members
SnapshotFileSet *	snapshot_files_
AlignedMemory *	work_memory_	Working memory to be used in this method. Automatically expand if needed.

struct foedus::storage::Partitioner::PartitionBatchArguments

Arguments for partition_batch()

Definition at line 116 of file partitioner.hpp.

Collaboration diagram for foedus::storage::Partitioner::PartitionBatchArguments:

[legend]

Class Members
PartitionId	local_partition_	The node the caller (mapper) resides in.
const LogBuffer &	log_buffer_	Converts from positions to physical pointers.
const BufferPosition *	log_positions_	positions of log records. All of them must be logs of this storage.
uint32_t	logs_count_	number of entries to process.
PartitionId *	results_	[OUT] this method will set the partition of logs[i] to results[i].

struct foedus::storage::Partitioner::SortBatchArguments

Arguments for sort_batch()

Definition at line 140 of file partitioner.hpp.

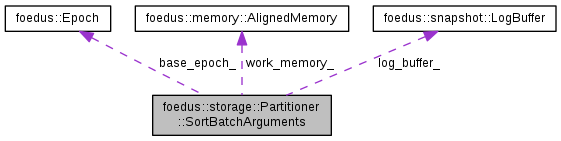

Collaboration diagram for foedus::storage::Partitioner::SortBatchArguments:

[legend]

Class Members
Epoch	base_epoch_	All log entries in this inputs are assured to be after this epoch. Also, it is assured to be within 2^16 from this epoch. Even with 10 milliseconds per epoch, this corresponds to more than 10 hours. Snapshot surely happens more often than that.
const LogBuffer &	log_buffer_	Converts from positions to physical pointers.
const BufferPosition *	log_positions_	positions of log records. All of them must be logs of this storage.
uint32_t	logs_count_	number of entries to process.
uint32_t	longest_key_length_	[masstree/hash] longest key length in the log entries.
BufferPosition *	output_buffer_	sorted results are written to this variable. the buffer size is at least of log_positions_count_.
uint32_t	shortest_key_length_	[masstree/hash] shortest key length in the log entries.
AlignedMemory *	work_memory_	Working memory to be used in this method. Automatically expand if needed.
uint32_t *	written_count_	[OUT] how many logs written to output_buffer. If there was no compaction, this will be same as log_positions_count_.

Typedef Documentation

typedef uint32_t foedus::storage::Checksum

Checksum of a snapshot page.

Each snapshot page contains this checksum to be verified when we read it from media or occasionally.

Definition at line 174 of file storage_id.hpp.

typedef thread::ThreadGroupId foedus::storage::PartitionId

As partition=NUMA node, this is just a synonym of foedus::thread::ThreadGroupId.

Definition at line 65 of file storage_id.hpp.

typedef uint64_t foedus::storage::SnapshotLocalPageId

Represents a local page ID in each one snapshot file in some NUMA node.

This is the low 40 bits of SnapshotPagePointer. Just an alias for readability. This value must not exceed 2^40. 0 means null pointer (which is a valid value).

Definition at line 89 of file storage_id.hpp.

typedef uint64_t foedus::storage::SnapshotPagePointer

Page ID of a snapshot page.

Snapshot Page ID is a 64-bit integer. The high 16 bits indicate which snapshot it is in (foedus::snapshot::SnapshotId). As we periodically merge all snapshots, we won't have 2^16 snapshots at one time. The mid 8 bits indicate the NUMA node ID, or which file it is in. We have one snapshot file per NUMA node, so it won't be more than 2^8. The last 40 bits indicate page offset in the file. So, one file in one snapshot must be within 4kb * 2^40 = 4PB, which is surely the case.

Definition at line 79 of file storage_id.hpp.

typedef uint32_t foedus::storage::StorageId

Unique ID for storage.

StorageId is an unsigned integer starting from 1. Value 0 is an always invalid ID (empty). Name of storage is also unique, but it's an auxiliary information for convenience. The primary way to identify storages is this StorageId.

Definition at line 55 of file storage_id.hpp.

typedef void(* foedus::storage::VolatilePageInit) (const VolatilePageInitArguments &args)

A function pointer to initialize a volatile page.

Used as a callback argument to follow_page_pointer. This is used when a method might initialize a volatile page (eg following a page pointer). Page initialization depends on page type and many of them need custom logic, so we made it a callback.

Definition at line 387 of file page.hpp.

Enumeration Type Documentation

enum foedus::storage::PageType

The following 1-byte value is stored in the common page header.

These values are stored in snapshot pages too, so we must keep values' compatibility. Specify values for that reason.

Enumerator
kUnknownPageType
kArrayPageType
kMasstreeIntermediatePageType
kMasstreeBorderPageType
kSequentialPageType
kSequentialRootPageType
kHashIntermediatePageType
kHashDataPageType
kHashComposedBinsPageType
kDummyLastPageType

Definition at line 46 of file page.hpp.

               {
   kUnknownPageType = 0,
   kArrayPageType = 1,
   kMasstreeIntermediatePageType = 2,
   kMasstreeBorderPageType = 3,
   kSequentialPageType = 4,
   kSequentialRootPageType = 5,
   kHashIntermediatePageType = 6,
   kHashDataPageType = 7,
   kHashComposedBinsPageType = 8,
   kDummyLastPageType,
 };

enum foedus::storage::StorageStatus

Status of a storage.

Enumerator

kNotExists

Initial state, which means the storage has not been created yet.

kExists

The storage has been created and ready for use.

kMarkedForDeath

The storage has been marked for drop and can't be used.

The status becomes kNotExists at next restart. the system. So far there is no path from this state to kNotExists. No reuse of StorageId.

Definition at line 154 of file storage_id.hpp.

                    {
   kNotExists = 0,
   kExists,
   kMarkedForDeath,
 };

enum foedus::storage::StorageType

Type of the storage, such as hash.

Enumerator
kInvalidStorage	0 indicates invalid type.
kArrayStorage	Array Storage
kHashStorage	Hashtable Storage
kMasstreeStorage	Masstree Storage
kSequentialStorage	Sequential Storage

Definition at line 122 of file storage_id.hpp.

                  {
   kInvalidStorage = 0,
   kArrayStorage,
   kHashStorage,
   kMasstreeStorage,
   kSequentialStorage,
 };

Function Documentation

void foedus::storage::prefetch_page_l2 ( const void * page )

inline

Prefetch a page to L2/L3 cache.

Parameters

[in] page page to prefetch.

In order to prefetch a specific part of the page to L1, directly use foedus::assorted::prefetch_cacheline().

Definition at line 34 of file page_prefetch.hpp.

References foedus::assorted::kCachelineSize, foedus::storage::kPageSize, and foedus::assorted::prefetch_l2().

Referenced by foedus::storage::array::ArrayStoragePimpl::prefetch_pages(), foedus::storage::masstree::MasstreeStoragePimpl::prefetch_pages_follow(), foedus::storage::masstree::MasstreeStoragePimpl::prefetch_pages_normalized(), and foedus::storage::array::ArrayStoragePimpl::prefetch_pages_recurse().

                                                {
   assorted::prefetch_l2(page, kPageSize / assorted::kCachelineSize);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

Page* foedus::storage::to_page ( const void * address )

inline

super-dirty way to obtain Page the address belongs to.

because all pages are 4kb aligned, we can just divide and multiply.

Definition at line 395 of file page.hpp.

References foedus::storage::kPageSize.

Referenced by foedus::storage::masstree::MasstreeCommonLogType::apply_record_prepare(), foedus::xct::SysxctLockList::assert_sorted_impl(), foedus::storage::assert_within_valid_volatile_page_impl(), foedus::xct::RetrospectiveLockList::construct(), foedus::storage::masstree::extract_page_layer(), foedus::xct::RwLockableXctId::hotter(), foedus::xct::RwLockableXctId::is_hot(), foedus::xct::lock_assert_sorted(), foedus::xct::Xct::on_record_read(), foedus::storage::masstree::MasstreeStoragePimpl::prefetch_pages_follow(), foedus::xct::to_universal_lock_id(), foedus::storage::hash::HashStoragePimpl::track_moved_record(), and foedus::storage::masstree::MasstreeStoragePimpl::track_moved_record().

                                           {
   uintptr_t int_address = reinterpret_cast<uintptr_t>(address);
   uint64_t aligned_address = static_cast<uint64_t>(int_address) / kPageSize * kPageSize;
   return reinterpret_cast<Page*>(
     reinterpret_cast<void*>(reinterpret_cast<uintptr_t>(aligned_address)));
 }

Here is the caller graph for this function:

const char* foedus::storage::to_storage_type_name ( StorageType type )

inline

Gives a string representation of StorageType.

Definition at line 139 of file storage_id.hpp.

References foedus::storage::kArrayStorage, foedus::storage::kHashStorage, foedus::storage::kInvalidStorage, foedus::storage::kMasstreeStorage, and foedus::storage::kSequentialStorage.

Referenced by foedus::storage::operator<<().

                                                           {
   switch (type) {
   case kInvalidStorage: return "Invalid";
   case kArrayStorage: return "Array";
   case kHashStorage: return "Hash";
   case kMasstreeStorage: return "Masstree";
   case kSequentialStorage: return "Sequential";
   default: return "Unknown";
   }
 }

Here is the caller graph for this function:

Variable Documentation

const uint16_t foedus::storage::kPageSize = 1 << 12

A constant defining the page size (in bytes) of both snapshot pages and volatile pages.

This number must be at least 4kb (2^12) because that's Linux's page alignment.

Definition at line 45 of file storage_id.hpp.

Detailed Description

Types of Storage

Modules

Files

Classes

Typedefs

Enumerations

Functions

Variables

Class Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
