foedus::storage::PageHeader Struct Reference

Just a marker to denote that a memory region represents a data page. More...

Detailed Description

Just a marker to denote that a memory region represents a data page.

Each storage page class contains this at the beginning to declare common properties. In other words, we can always reinterpret_cast a page pointer to this object and get/set basic properties.

Definition at line 184 of file page.hpp.

#include <page.hpp>

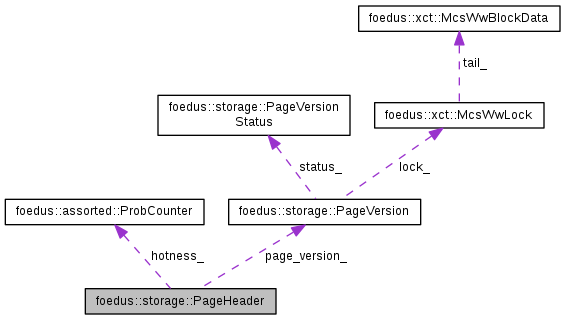

Collaboration diagram for foedus::storage::PageHeader:

Public Member Functions
	PageHeader ()=delete
	PageHeader (const PageHeader &other)=delete
PageHeader &	operator= (const PageHeader &other)=delete
PageType	get_page_type () const
uint8_t	get_in_layer_level () const
void	set_in_layer_level (uint8_t level)
void	init_volatile (VolatilePagePointer page_id, StorageId storage_id, PageType page_type) __attribute__((always_inline))
void	init_snapshot (SnapshotPagePointer page_id, StorageId storage_id, PageType page_type) __attribute__((always_inline))
void	increment_key_count () __attribute__((always_inline))
void	set_key_count (uint8_t key_count) __attribute__((always_inline))
bool	contains_hot_records (thread::Thread *context)

Public Attributes
uint64_t	page_id_
	Page ID of this page. More...
StorageId	storage_id_
	ID of the storage this page belongs to. More...
Checksum	checksum_
	Checksum of the content of this page to detect corrupted pages. More...
uint8_t	page_type_
	Actually of PageType. More...
bool	snapshot_
	Whether this page image is of a snapshot page. More...
uint16_t	key_count_
	physical key count (those keys might be deleted) in this page. More...
uint8_t	masstree_layer_
	used only in masstree. More...
uint8_t	masstree_in_layer_level_
	used only in masstree. More...
uint8_t	stat_last_updater_node_
	A loosely maintained statistics for volatile pages. More...
assorted::ProbCounter	hotness_
	Loosely maintained statistics on data temperature. More...
PageVersion	page_version_
	Used in several storage types as concurrency control mechanism for the page. More...

Friends
std::ostream &	operator<< (std::ostream &o, const PageHeader &v)

Constructor & Destructor Documentation

foedus::storage::PageHeader::PageHeader ( )

delete

foedus::storage::PageHeader::PageHeader ( const PageHeader &  other )

delete

Member Function Documentation

bool foedus::storage::PageHeader::contains_hot_records

(

thread::Thread *

context

)

Definition at line 81 of file page.cpp.

References foedus::thread::Thread::get_current_xct(), foedus::xct::Xct::get_hot_threshold_for_this_xct(), hotness_, and foedus::assorted::ProbCounter::value_.

Referenced by foedus::xct::RwLockableXctId::is_hot().

                                                           {
  return hotness_.value_ >= context->get_current_xct().get_hot_threshold_for_this_xct();
}

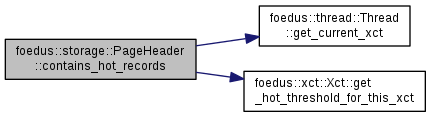

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t foedus::storage::PageHeader::get_in_layer_level ( ) const

inline

Definition at line 281 of file page.hpp.

References masstree_in_layer_level_.

Referenced by foedus::storage::hash::HashIntermediatePage::get_level(), foedus::storage::hash::HashIntermediatePage::release_pages_recursive(), and foedus::storage::hash::HashDataPage::release_pages_recursive().

{ return masstree_in_layer_level_; }

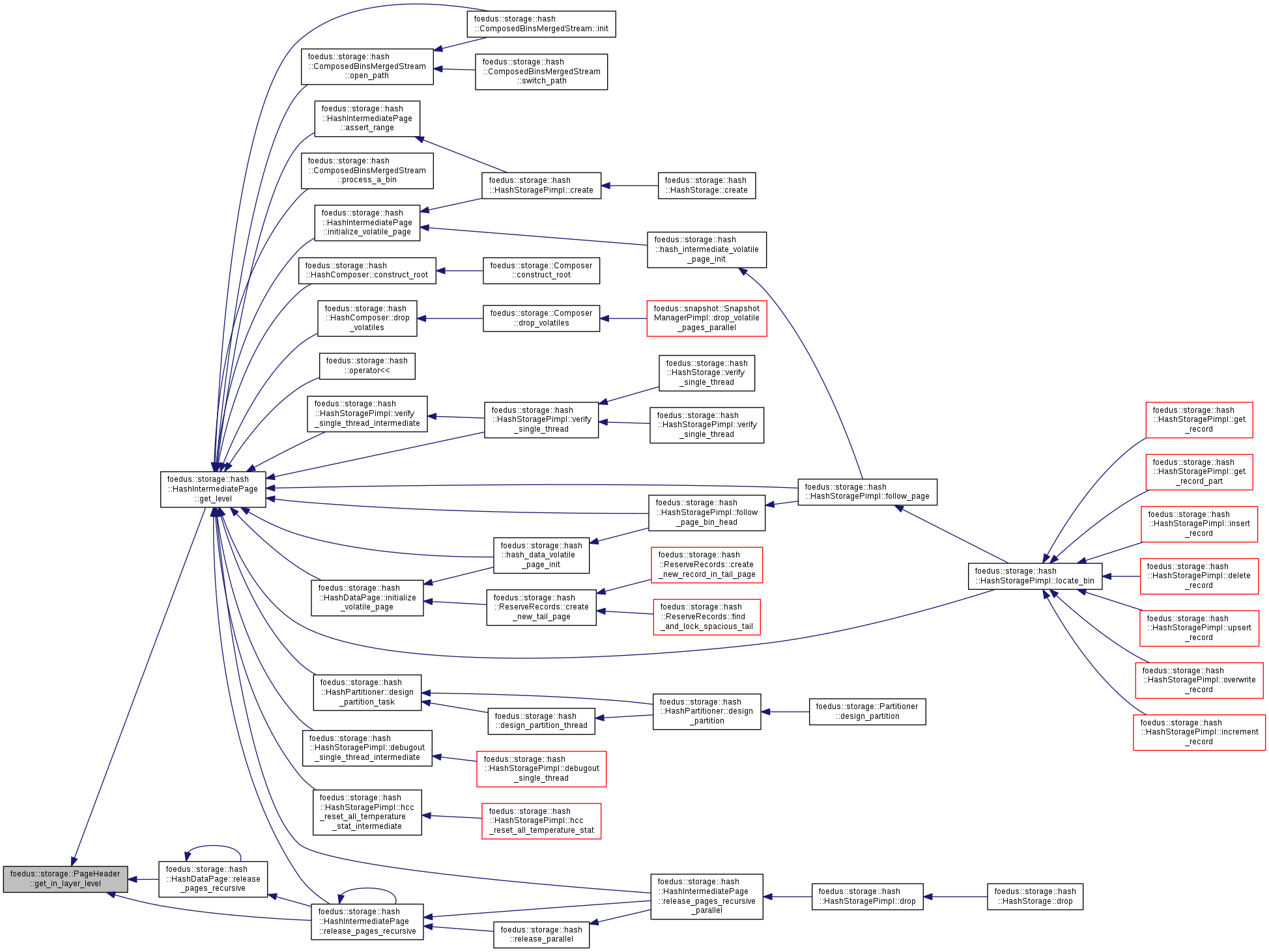

Here is the caller graph for this function:

PageType foedus::storage::PageHeader::get_page_type ( ) const

inline

Definition at line 280 of file page.hpp.

References page_type_.

Referenced by foedus::storage::assert_valid_volatile_page(), foedus::storage::masstree::MasstreeComposer::construct_root(), foedus::storage::hash::HashStoragePimpl::follow_page(), foedus::storage::hash::HashStoragePimpl::follow_page_bin_head(), foedus::storage::Page::get_page_type(), foedus::storage::hash::hash_data_volatile_page_init(), foedus::storage::hash::hash_intermediate_volatile_page_init(), foedus::storage::hash::HashDataPage::initialize_volatile_page(), foedus::storage::masstree::MasstreePage::is_border(), foedus::storage::masstree::MasstreeStoragePimpl::peek_volatile_page_boundaries_this_layer_recurse(), foedus::storage::hash::HashIntermediatePage::release_pages_recursive(), foedus::storage::masstree::MasstreePage::release_pages_recursive_common(), foedus::storage::hash::release_parallel(), foedus::storage::hash::resolve_data_impl(), foedus::storage::hash::resolve_intermediate_impl(), foedus::storage::masstree::verify_page_basic(), and foedus::storage::hash::HashStoragePimpl::verify_single_thread_intermediate().

{ return static_cast<PageType>(page_type_); }

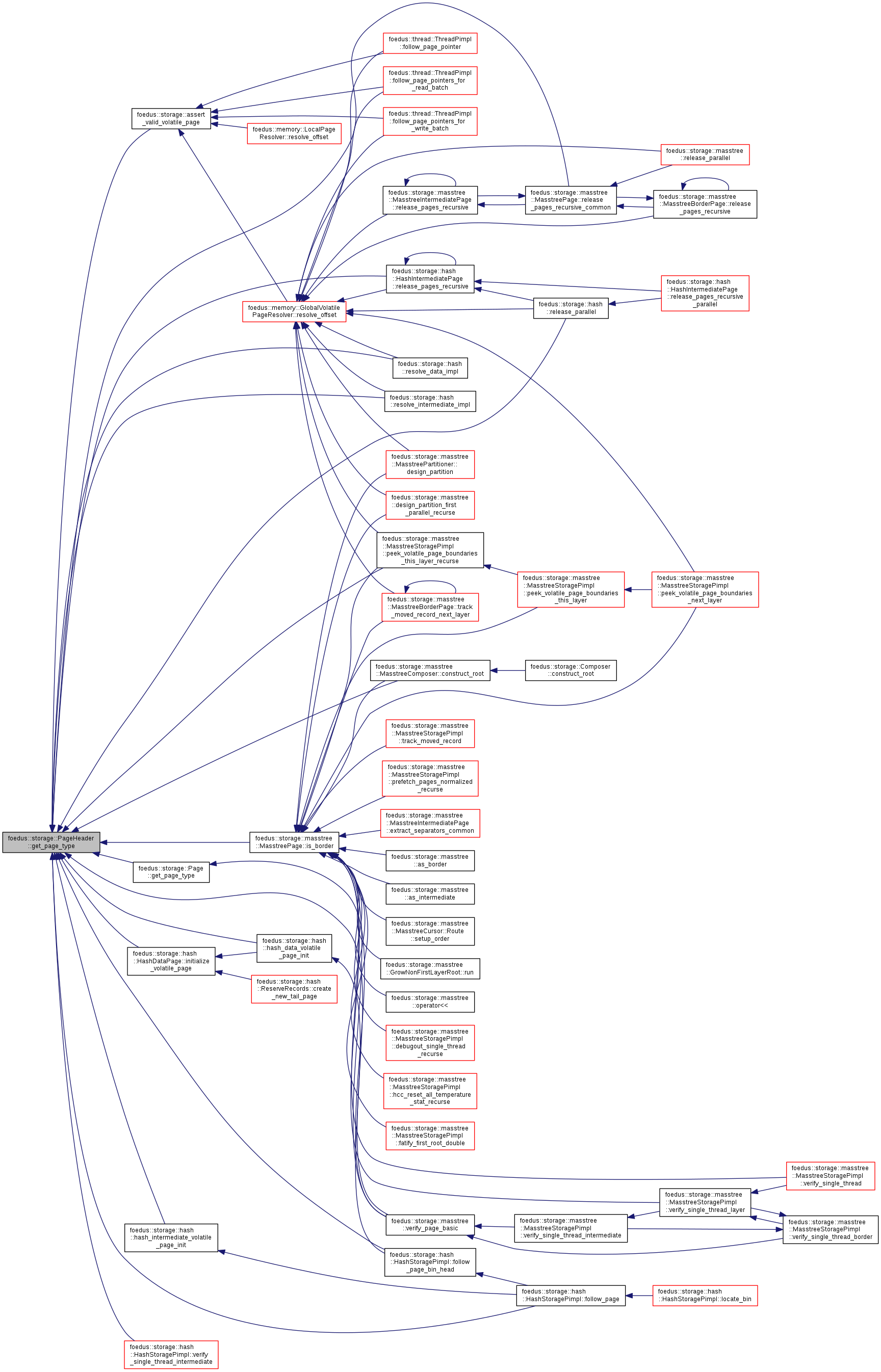

Here is the caller graph for this function:

void foedus::storage::PageHeader::increment_key_count ( )

inline

Definition at line 318 of file page.hpp.

References key_count_.

Referenced by foedus::storage::hash::ReserveRecords::append_record_to_page(), foedus::storage::hash::HashDataPage::create_record_in_snapshot(), foedus::storage::masstree::MasstreePage::increment_key_count(), and foedus::storage::hash::HashDataPage::reserve_record().

{ ++key_count_; }

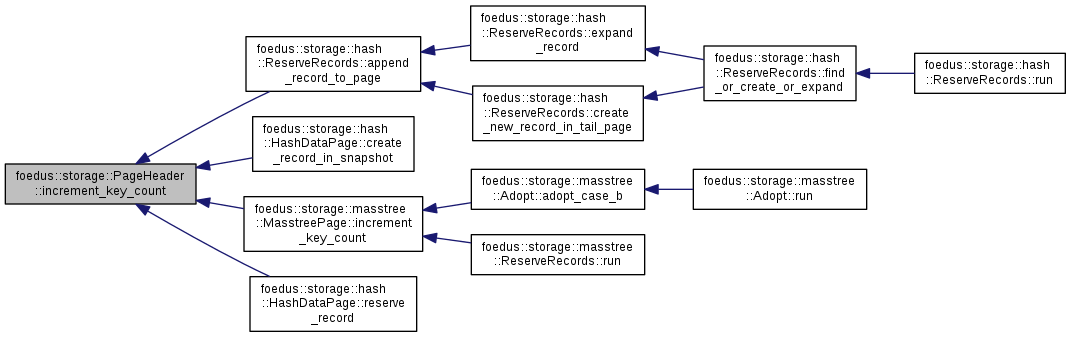

Here is the caller graph for this function:

void foedus::storage::PageHeader::init_snapshot ( SnapshotPagePointer  page_id, StorageId  storage_id, PageType  page_type  )

inline

Definition at line 301 of file page.hpp.

References foedus::storage::extract_numa_node_from_snapshot_pointer(), foedus::assorted::ProbCounter::reset(), and foedus::storage::PageVersion::reset().

Referenced by foedus::storage::masstree::MasstreePage::initialize_snapshot_common(), foedus::storage::array::ArrayPage::initialize_snapshot_page(), foedus::storage::hash::HashIntermediatePage::initialize_snapshot_page(), foedus::storage::sequential::SequentialPage::initialize_snapshot_page(), foedus::storage::hash::HashDataPage::initialize_snapshot_page(), and foedus::storage::sequential::SequentialRootPage::initialize_snapshot_page().

                                      {
    page_id_ = page_id;
    storage_id_ = storage_id;
    checksum_ = 0;
    page_type_ = page_type;
    snapshot_ = true;
    key_count_ = 0;
    masstree_layer_ = 0;
    masstree_in_layer_level_ = 0;
    stat_last_updater_node_ = extract_numa_node_from_snapshot_pointer(page_id);
    hotness_.reset();
    page_version_.reset();
  }

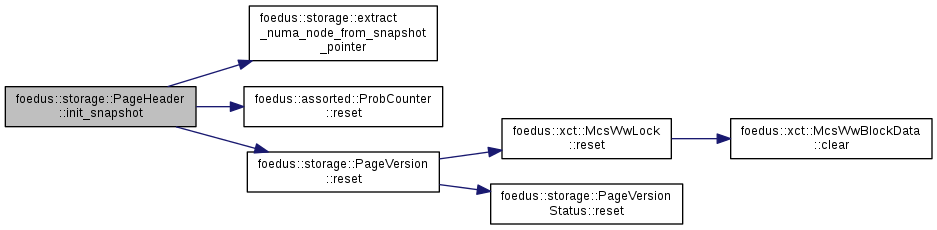

Here is the call graph for this function:

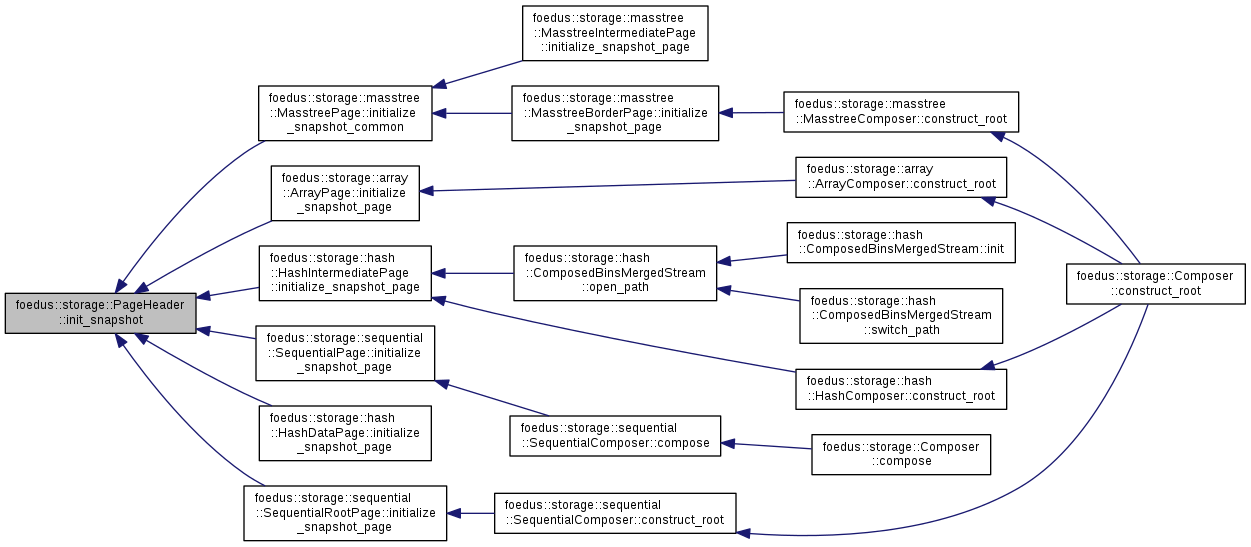

Here is the caller graph for this function:

void foedus::storage::PageHeader::init_volatile ( VolatilePagePointer  page_id, StorageId  storage_id, PageType  page_type  )

inline

Definition at line 284 of file page.hpp.

References foedus::assorted::ProbCounter::reset(), and foedus::storage::PageVersion::reset().

Referenced by foedus::xct::McsMockDataPage::init(), foedus::storage::masstree::MasstreePage::initialize_volatile_common(), foedus::storage::array::ArrayPage::initialize_volatile_page(), foedus::storage::hash::HashIntermediatePage::initialize_volatile_page(), foedus::storage::sequential::SequentialPage::initialize_volatile_page(), and foedus::storage::hash::HashDataPage::initialize_volatile_page().

                                      {
    page_id_ = page_id.word;
    storage_id_ = storage_id;
    checksum_ = 0;
    page_type_ = page_type;
    snapshot_ = false;
    key_count_ = 0;
    masstree_layer_ = 0;
    masstree_in_layer_level_ = 0;
    stat_last_updater_node_ = page_id.get_numa_node();
    hotness_.reset();
    page_version_.reset();
  }

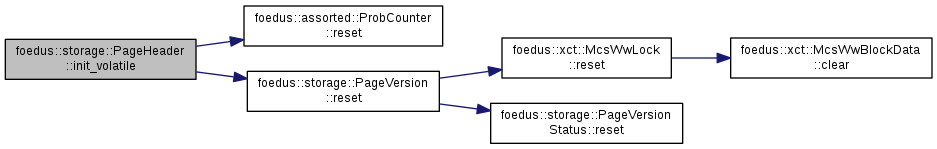

Here is the call graph for this function:

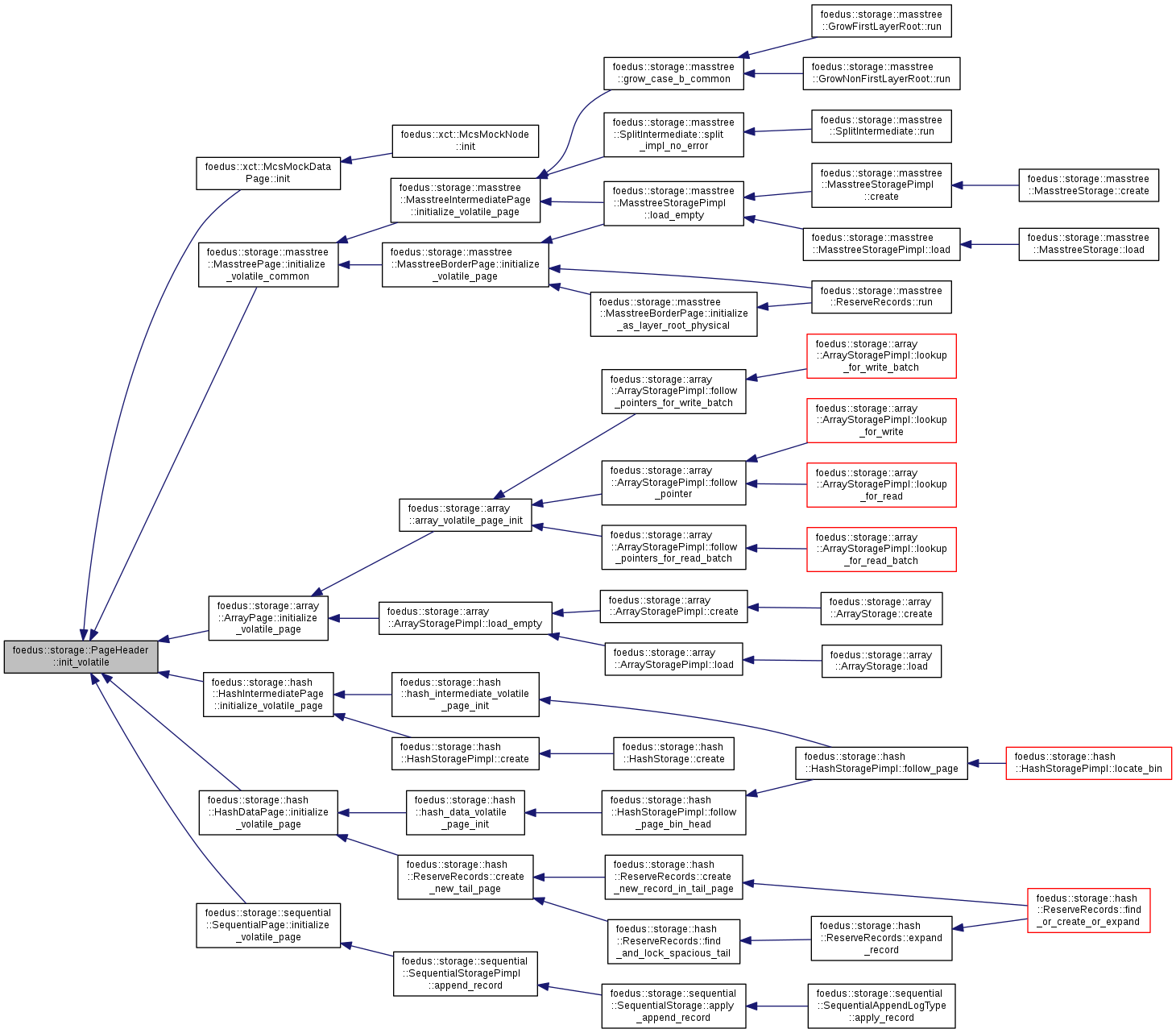

Here is the caller graph for this function:

PageHeader& foedus::storage::PageHeader::operator= ( const PageHeader &  other )

delete

void foedus::storage::PageHeader::set_in_layer_level ( uint8_t  level )

inline

Definition at line 282 of file page.hpp.

Referenced by foedus::storage::hash::HashIntermediatePage::initialize_snapshot_page(), and foedus::storage::hash::HashIntermediatePage::initialize_volatile_page().

{ masstree_in_layer_level_ = level; }

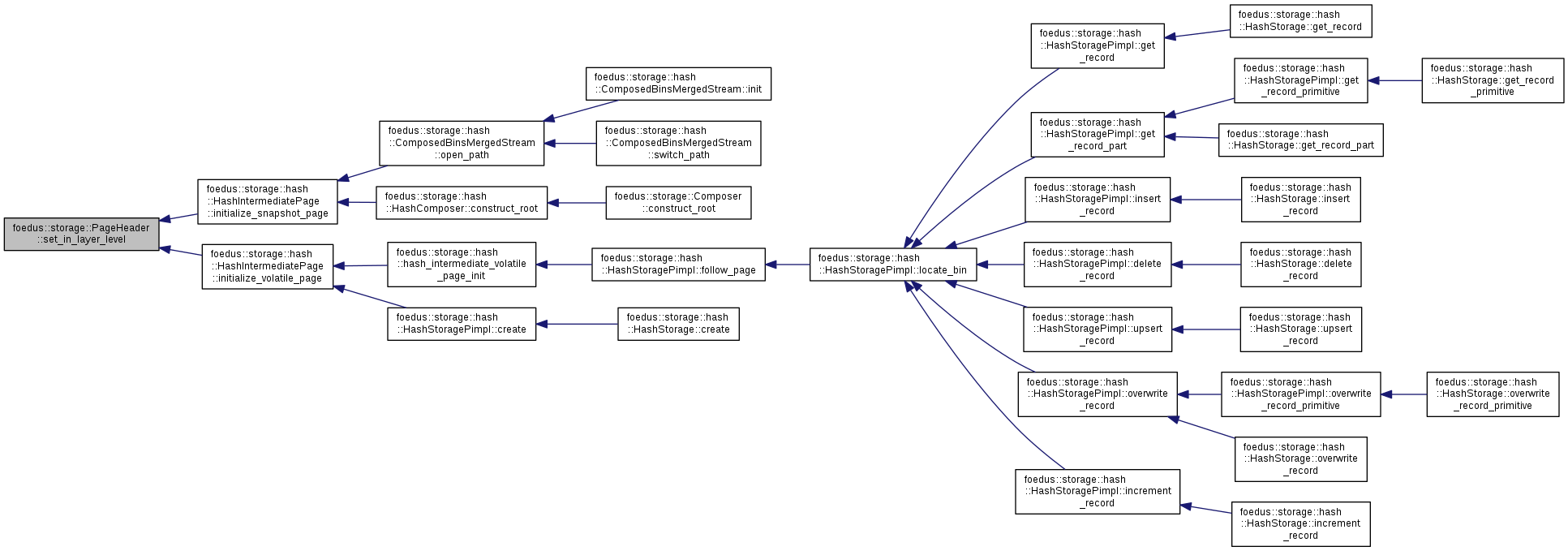

Here is the caller graph for this function:

void foedus::storage::PageHeader::set_key_count ( uint8_t  key_count )

inline

Definition at line 319 of file page.hpp.

Referenced by foedus::storage::masstree::SplitIntermediate::migrate_pointers(), and foedus::storage::masstree::MasstreePage::set_key_count().

{ key_count_ = key_count;  }

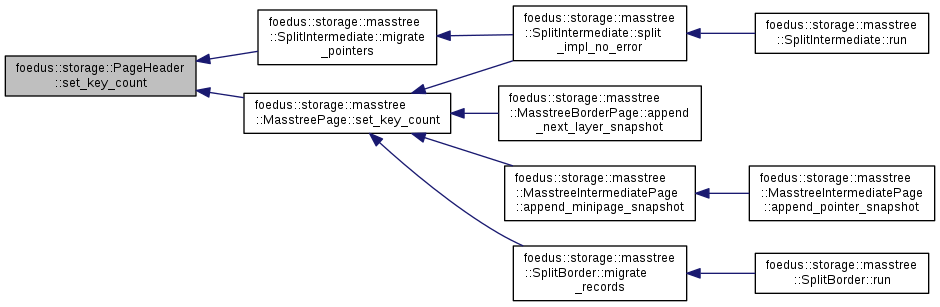

Here is the caller graph for this function:

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  o, const PageHeader &  v  )

friend

Definition at line 52 of file page.cpp.

                                                           {
  o << "<PageHeader>";
  o << std::endl << "<page_id>"
    << "<raw>" << assorted::Hex(v.page_id_, 16) << "</raw>";
  // Also write out interpreted version
  if (v.snapshot_) {
    describe_snapshot_pointer(&o, v.page_id_);
  } else {
    VolatilePagePointer pointer;
    pointer.word = v.page_id_;
    describe_volatile_pointer(&o, pointer);
  }
  o << "</page_id>";
  o << std::endl << "<storage_id_>" << v.storage_id_ << "</storage_id_>";
  o << "<checksum_>" << v.checksum_ << "</checksum_>";
  o << "<page_type_>" << static_cast<int>(v.page_type_) << "</page_type_>";
  o << std::endl << "<snapshot_>" << v.snapshot_ << "</snapshot_>";
  o << "<key_count_>" << v.key_count_ << "</key_count_>";
  o << "<masstree_layer_>" << static_cast<int>(v.masstree_layer_) << "</masstree_layer_>";
  o << "<masstree_in_layer_level_>" << static_cast<int>(v.masstree_in_layer_level_)
    << "</masstree_in_layer_level_>";
  o << "<hotness_>" << static_cast<int>(v.hotness_.value_) << "</hotness_>";
  o << std::endl << "<stat_last_updater_node_>" << static_cast<int>(v.stat_last_updater_node_)
    << "</stat_last_updater_node_>";
  o << v.page_version_;
  o << "</PageHeader>";
  return o;
}

Member Data Documentation

Checksum foedus::storage::PageHeader::checksum_

Checksum of the content of this page to detect corrupted pages.

Changes only when this page becomes a snapshot page.

Definition at line 202 of file page.hpp.

Referenced by foedus::snapshot::SnapshotWriter::open(), and foedus::storage::operator<<().

assorted::ProbCounter foedus::storage::PageHeader::hotness_

Loosely maintained statistics on data temperature.

This is a probabilistic counter: 0->1 = 100%, 1->2 = 50%, 2->3 = 25%, etc. So it grows exponentially, which should make it easy enough to tell an obviously hot record/page.

XXX(tzwang): This field only makes sense for volatile pages.

Among the preceeding word-size-algned fields (masstree_layer_, masstree_in_layer_level_, and stat_last_updater_node_), masstree_* are not changed once page constructed; stat_last_updater_node_ is loosely maintained stat. So we don't need to use atomic write for this field.

Assuming 4-byte word size ($getconf WORD_BIT).

Definition at line 268 of file page.hpp.

Referenced by foedus::xct::RetrospectiveLockList::construct(), contains_hot_records(), foedus::storage::hash::HashStoragePimpl::hcc_reset_all_temperature_stat_data(), foedus::storage::array::ArrayStoragePimpl::hcc_reset_all_temperature_stat_intermediate(), foedus::storage::masstree::MasstreeStoragePimpl::hcc_reset_all_temperature_stat_recurse(), foedus::xct::RwLockableXctId::hotter(), foedus::thread::Thread::is_hot_page(), and foedus::storage::operator<<().

uint16_t foedus::storage::PageHeader::key_count_

physical key count (those keys might be deleted) in this page.

It depends on the page type what "key count" exactly means. For example, in masstree interior page, key count is a separator count, so it contains pointers of key_count_+1. In many pages, key_count=record_count.

Definition at line 219 of file page.hpp.

Referenced by foedus::storage::sequential::SequentialPage::append_record_nosync(), foedus::storage::masstree::MasstreePage::get_key_count(), foedus::storage::hash::HashDataPage::get_record_count(), foedus::storage::masstree::grow_case_b_common(), increment_key_count(), foedus::storage::masstree::MasstreeBorderPage::initialize_layer_root(), and foedus::storage::operator<<().

uint8_t foedus::storage::PageHeader::masstree_in_layer_level_

used only in masstree.

Logical B-tree level of the page. Border pages are always level-0 whether they are foster-child or not. Intermediate pages right above border pages are level-1, their parents are level-2, ... Foster-child of an intermediate page has the same level as its foster parent. Again, this is a logical level, not physical.

Our implementation of masstree might have unbalanced sub-trees. In that case, an interemediate page's level is max(child's level) + 1. This imbalance can happen only at the root page of the first layer because of how the masstree composer work. Other than that, all B-tree nodes are balanced.

Todo:

this should be renamed to in_layer_level. now both masstree and hash use this.

Definition at line 243 of file page.hpp.

Referenced by foedus::storage::masstree::MasstreeComposer::construct_root(), foedus::storage::masstree::MasstreePage::get_btree_level(), get_in_layer_level(), foedus::storage::masstree::MasstreePage::initialize_snapshot_common(), foedus::storage::masstree::MasstreePage::initialize_volatile_common(), and foedus::storage::operator<<().

uint8_t foedus::storage::PageHeader::masstree_layer_

used only in masstree.

Layer-0 stores the first 8 byte slice, Layer-1 next 8 byte...

Note

This field is now used as "bin_shifts" in hash storage. should rename..

Definition at line 226 of file page.hpp.

Referenced by foedus::storage::masstree::extract_page_layer(), foedus::storage::hash::HashDataPage::get_bin_shifts(), foedus::storage::masstree::MasstreePage::get_layer(), foedus::storage::masstree::MasstreePage::initialize_snapshot_common(), foedus::storage::masstree::MasstreePage::initialize_volatile_common(), foedus::storage::operator<<(), and foedus::storage::hash::HashDataPage::protected_set_bin_shifts().

uint64_t foedus::storage::PageHeader::page_id_

Page ID of this page.

If this page is a snapshot page, it stores SnapshotPagePointer. If this page is a volatile page, it stores VolatilePagePointer (only numa_node/offset matters).

Definition at line 191 of file page.hpp.

Referenced by foedus::storage::masstree::allocate_new_border_page(), foedus::storage::assert_valid_volatile_page(), foedus::storage::assert_within_valid_volatile_page_impl(), foedus::storage::sequential::SequentialComposer::compose(), foedus::storage::array::ArrayComposer::construct_root(), foedus::storage::hash::HashComposer::construct_root(), foedus::storage::masstree::MasstreeComposer::construct_root(), foedus::storage::sequential::SequentialComposer::construct_root(), foedus::storage::masstree::SplitIntermediate::decide_strategy(), foedus::thread::ThreadPimpl::find_or_read_a_snapshot_page(), foedus::thread::ThreadPimpl::find_or_read_snapshot_pages_batch(), foedus::storage::hash::HashStoragePimpl::follow_page_bin_head(), foedus::storage::hash::HashIntermediatePage::get_snapshot_page_id(), foedus::storage::masstree::MasstreePage::get_snapshot_page_id(), foedus::storage::hash::HashDataPage::get_snapshot_page_id(), foedus::storage::Page::get_snapshot_page_id(), foedus::storage::hash::HashIntermediatePage::get_volatile_page_id(), foedus::storage::masstree::MasstreePage::get_volatile_page_id(), foedus::storage::hash::HashDataPage::get_volatile_page_id(), foedus::storage::Page::get_volatile_page_id(), foedus::thread::ThreadPimpl::install_a_volatile_page(), foedus::storage::masstree::SplitBorder::lock_existing_records(), foedus::snapshot::SnapshotWriter::open(), foedus::storage::hash::ComposedBinsMergedStream::open_path(), foedus::storage::operator<<(), foedus::storage::StorageManagerPimpl::reinitialize_for_recovered_snapshot(), foedus::storage::hash::HashIntermediatePage::release_pages_recursive(), foedus::storage::hash::HashDataPage::release_pages_recursive(), foedus::storage::masstree::MasstreeIntermediatePage::release_pages_recursive(), foedus::storage::masstree::MasstreeBorderPage::release_pages_recursive(), foedus::storage::hash::HashIntermediatePage::release_pages_recursive_parallel(), foedus::storage::masstree::MasstreeIntermediatePage::release_pages_recursive_parallel(), foedus::storage::hash::resolve_data_impl(), foedus::storage::hash::resolve_intermediate_impl(), foedus::memory::GlobalVolatilePageResolver::resolve_offset(), and foedus::storage::masstree::ReserveRecords::run().

uint8_t foedus::storage::PageHeader::page_type_

Actually of PageType.

Definition at line 205 of file page.hpp.

Referenced by get_page_type(), and foedus::storage::operator<<().

PageVersion foedus::storage::PageHeader::page_version_

Used in several storage types as concurrency control mechanism for the page.

Definition at line 272 of file page.hpp.

Referenced by foedus::storage::sequential::SequentialPage::append_record_nosync(), foedus::storage::hash::ReserveRecords::create_new_record_in_tail_page(), foedus::storage::hash::ReserveRecords::find_and_lock_spacious_tail(), foedus::storage::masstree::MasstreePage::get_lock_address(), foedus::storage::masstree::MasstreePage::get_version(), foedus::storage::masstree::MasstreePage::get_version_address(), foedus::storage::masstree::MasstreePage::has_foster_child(), foedus::storage::masstree::MasstreePage::is_locked(), foedus::storage::hash::HashDataPage::is_locked(), foedus::storage::masstree::MasstreePage::is_moved(), foedus::storage::masstree::MasstreePage::is_retired(), foedus::thread::ThreadPimpl::is_volatile_page_retired(), foedus::storage::hash::HashStoragePimpl::locate_record(), foedus::storage::operator<<(), foedus::xct::SysxctLockList::release_all_locks(), foedus::storage::masstree::MasstreeIntermediatePage::release_pages_recursive(), foedus::storage::masstree::MasstreeBorderPage::release_pages_recursive(), foedus::storage::masstree::MasstreeIntermediatePage::release_pages_recursive_parallel(), foedus::storage::hash::HashDataPage::reserve_record(), foedus::storage::hash::ReserveRecords::search_within_page(), foedus::storage::masstree::MasstreePage::set_moved(), foedus::storage::masstree::MasstreePage::set_retired(), and foedus::storage::hash::HashStoragePimpl::verify_single_thread_intermediate().

bool foedus::storage::PageHeader::snapshot_

Whether this page image is of a snapshot page.

This is one of the properties that don't have permanent meaning.

Definition at line 211 of file page.hpp.

Referenced by foedus::storage::masstree::Adopt::adopt_case_a(), foedus::storage::masstree::MasstreeIntermediatePage::append_minipage_snapshot(), foedus::storage::masstree::MasstreeIntermediatePage::append_pointer_snapshot(), foedus::storage::sequential::SequentialPage::append_record_nosync(), foedus::storage::hash::HashDataPage::assert_entries_impl(), foedus::storage::masstree::MasstreeBorderPage::assert_entries_impl(), foedus::storage::assert_within_valid_volatile_page_impl(), foedus::storage::masstree::MasstreeBorderPage::can_accomodate_snapshot(), foedus::storage::masstree::MasstreeComposer::construct_root(), foedus::storage::hash::HashDataPage::create_record_in_snapshot(), foedus::storage::masstree::MasstreeIntermediatePage::extract_separators_snapshot(), foedus::storage::masstree::MasstreeIntermediatePage::extract_separators_volatile(), foedus::storage::masstree::MasstreeStoragePimpl::fatify_first_root_double(), foedus::storage::masstree::MasstreeBorderPage::find_key_for_snapshot(), foedus::storage::hash::ReserveRecords::find_or_create_or_expand(), foedus::storage::hash::HashStoragePimpl::follow_page(), foedus::storage::hash::HashStoragePimpl::follow_page_bin_head(), foedus::thread::ThreadPimpl::follow_page_pointer(), foedus::thread::ThreadPimpl::follow_page_pointers_for_read_batch(), foedus::thread::ThreadPimpl::follow_page_pointers_for_write_batch(), foedus::storage::array::ArrayStoragePimpl::follow_pointers_for_read_batch(), foedus::storage::array::ArrayStoragePimpl::follow_pointers_for_write_batch(), foedus::storage::masstree::MasstreeStoragePimpl::get_first_root(), foedus::storage::hash::HashIntermediatePage::get_snapshot_page_id(), foedus::storage::masstree::MasstreePage::get_snapshot_page_id(), foedus::storage::hash::HashDataPage::get_snapshot_page_id(), foedus::storage::Page::get_snapshot_page_id(), foedus::storage::hash::HashIntermediatePage::get_volatile_page_id(), foedus::storage::masstree::MasstreePage::get_volatile_page_id(), foedus::storage::hash::HashDataPage::get_volatile_page_id(), foedus::storage::Page::get_volatile_page_id(), foedus::storage::masstree::grow_case_a_common(), foedus::storage::hash::HashStoragePimpl::insert_record(), foedus::thread::ThreadPimpl::install_a_volatile_page(), foedus::storage::hash::HashStoragePimpl::locate_bin(), foedus::storage::masstree::MasstreeStoragePimpl::locate_record(), foedus::storage::hash::HashStoragePimpl::locate_record(), foedus::storage::hash::HashStoragePimpl::locate_record_in_snapshot(), foedus::storage::masstree::MasstreeStoragePimpl::locate_record_normalized(), foedus::storage::array::ArrayStoragePimpl::lookup_for_read(), foedus::storage::array::ArrayStoragePimpl::lookup_for_read_batch(), foedus::storage::array::ArrayStoragePimpl::lookup_for_write(), foedus::storage::array::ArrayStoragePimpl::lookup_for_write_batch(), foedus::storage::masstree::MasstreeIntermediatePointerIterator::MasstreeIntermediatePointerIterator(), foedus::storage::operator<<(), foedus::storage::masstree::MasstreeStoragePimpl::peek_volatile_page_boundaries_next_layer(), foedus::storage::masstree::MasstreeStoragePimpl::peek_volatile_page_boundaries_this_layer(), foedus::storage::masstree::MasstreeStoragePimpl::peek_volatile_page_boundaries_this_layer_recurse(), foedus::thread::ThreadPimpl::place_a_new_volatile_page(), foedus::storage::array::ArrayStoragePimpl::prefetch_pages_recurse(), foedus::storage::hash::ComposedBinsMergedStream::process_a_bin(), foedus::storage::StorageManagerPimpl::reinitialize_for_recovered_snapshot(), foedus::storage::masstree::Adopt::run(), foedus::storage::masstree::GrowNonFirstLayerRoot::run(), foedus::storage::masstree::SplitBorder::run(), foedus::storage::masstree::ReserveRecords::run(), foedus::storage::hash::ReserveRecords::search_within_page(), foedus::storage::masstree::MasstreePage::set_foster_major_offset_unsafe(), foedus::storage::masstree::MasstreePage::set_high_fence_unsafe(), foedus::storage::masstree::SplitIntermediate::split_impl_no_error(), foedus::storage::hash::HashStoragePimpl::track_moved_record_search(), foedus::storage::masstree::MasstreeBorderPage::try_expand_record_in_page_physical(), foedus::storage::hash::HashStoragePimpl::upsert_record(), and foedus::storage::masstree::verify_page_basic().

uint8_t foedus::storage::PageHeader::stat_last_updater_node_

A loosely maintained statistics for volatile pages.

The NUMA node of the thread that has most recently tried to update this page. This is not atomically/transactionally maintained and should be used only as a stat. Depending on page type, this might not be even maintained (eg implicit in sequential pages).

Definition at line 251 of file page.hpp.

Referenced by foedus::storage::masstree::MasstreeStoragePimpl::delete_general(), foedus::storage::masstree::design_partition_first_parallel_recurse(), foedus::storage::masstree::MasstreeStoragePimpl::increment_general(), foedus::storage::masstree::MasstreeStoragePimpl::insert_general(), foedus::storage::hash::HashStoragePimpl::locate_record(), foedus::storage::operator<<(), foedus::storage::masstree::MasstreeStoragePimpl::overwrite_general(), and foedus::storage::masstree::MasstreeStoragePimpl::upsert_general().

StorageId foedus::storage::PageHeader::storage_id_

ID of the storage this page belongs to.

Definition at line 196 of file page.hpp.

Referenced by foedus::storage::sequential::SequentialComposer::compose(), foedus::storage::array::ArrayComposer::construct_root(), foedus::storage::hash::HashComposer::construct_root(), foedus::storage::masstree::MasstreeComposer::construct_root(), foedus::storage::sequential::SequentialComposer::construct_root(), foedus::storage::hash::ReserveRecords::create_new_tail_page(), foedus::storage::array::ArrayComposeContext::execute(), foedus::storage::hash::HashComposeContext::execute(), foedus::storage::array::ArrayPage::get_storage_id(), foedus::storage::masstree::grow_case_b_common(), foedus::storage::hash::hash_data_volatile_page_init(), foedus::storage::hash::hash_intermediate_volatile_page_init(), foedus::storage::masstree::MasstreeBorderPage::initialize_as_layer_root_physical(), foedus::storage::masstree::SplitBorder::lock_existing_records(), foedus::xct::Xct::on_record_read(), foedus::snapshot::SnapshotWriter::open(), foedus::storage::hash::ComposedBinsMergedStream::open_path(), foedus::storage::operator<<(), foedus::storage::StorageManagerPimpl::reinitialize_for_recovered_snapshot(), foedus::storage::masstree::GrowNonFirstLayerRoot::run(), foedus::storage::masstree::SplitBorder::run(), foedus::storage::masstree::ReserveRecords::run(), and foedus::storage::masstree::SplitIntermediate::split_impl_no_error().

---

The documentation for this struct was generated from the following files:

• /home/shino/foedus_code/foedus-core/include/foedus/storage/page.hpp
• /home/shino/foedus_code/foedus-core/src/foedus/storage/page.cpp
