Root package of FOEDUS (Fast Optimistic Engine for Data Unification Services). More...

Detailed Description

Root package of FOEDUS (Fast Optimistic Engine for Data Unification Services).

See Main Page for installation/quick-start/project overview.

Namespaces
	assorted
	Assorted Methods/Classes that are too subtle to have their own packages.

	cache
	Snapshot Cache Manager, which caches data pages retrieved from snapshot files.

	debugging
	Debug-Support functionalities.

	externalize
	Object Externalization.

	fs
	Filesystem wrapper, an analogue of boost::filesystem.

	log
	Log Manager, which writes out transactional logs.

	memory
	Memory Manager, which controls memory allocations, deallocations, and sharing.

	proc
	System and User Procedures.

	restart
	Restart Manager, which recovers the state of database by re-playing transaction logs at start-up.

	savepoint
	Savepoint Manager, which durably and atomically remembers what happened in the engine occasionally (eg.

	snapshot
	Snapshot Manager, which manages snapshot files of the database.

	soc
	System On Chip (SOC) and interprocess communication (IPC).

	storage
	Storage Manager, which implements a couple of key/value stores.

	thread
	Thread and Thread-Group, which abstracts NUMA-core/node and provides API to attach/detach tasks to pooled threads.

	xct
	Transaction Manager, which provides APIs to begin/commit/abort transactions.

Classes
class	Attachable
	Attachable Resources on Shared Memory. More...

class	DefaultInitializable
	Typical implementation of Initializable as a skeleton base class. More...

class	Engine
	Database engine object that holds all resources and provides APIs. More...

struct	EngineOptions
	Set of option values given to the engine at start-up. More...

class	EnginePimpl
	Pimpl object of Engine. More...

class	Epoch
	Represents a time epoch. More...

class	ErrorStack
	Brings error stacktrace information as return value of functions. More...

class	ErrorStackBatch
	Batches zero or more ErrorStack objects to represent in one ErrorStack. More...

class	FixedErrorStack
	Representation of ErrorStack that can be copied to other processes and even serialized to files. More...

class	Initializable
	The pure-virtual interface to initialize/uninitialize non-trivial resources. More...

class	UninitializeGuard
	Calls Initializable::uninitialize() automatically when it gets out of scope. More...

Typedefs
typedef uint64_t	Eid
	An Engine ID to differentiate two Engine objects instantiated in the same process. More...

Enumerations
enum	EngineType { kMaster, kChildEmulated, kChildForked, kChildLocalSpawned, kChildRemoteSpawned }
	Type of an engine instance of how to launch it. More...

enum	ErrorCode { kErrorCodeOk = 0, kErrorCodeOutofmemory = 0x0001, kErrorCodeInvalidParameter = 0x0002, kErrorCodeAlreadyInitialized = 0x0003, kErrorCodeBatchedError = 0x0004, kErrorCodeDepedentModuleUnavailableInit = 0x0005, kErrorCodeDepedentModuleUnavailableUninit = 0x0006, kErrorCodeBeingShutdown = 0x0007, kErrorCodeTimeout = 0x0008, kErrorCodeNotimplemented = 0x0009, kErrorCodeSessionExpired = 0x000A, kErrorCodeUserDefined = 0x000B, kErrorCodeInternalError = 0x000C, kErrorCodeOsMProtectFailed = 0x000D, kErrorCodeEnvPrescreenFailed = 0x000E, kErrorCodeEngineInvalidOption = 0x0101, kErrorCodeFsAlreadyOpened = 0x0201, kErrorCodeFsFailedToOpen = 0x0202, kErrorCodeFsBadSeekInput = 0x0203, kErrorCodeFsSeekFailed = 0x0204, kErrorCodeFsBufferTooSmall = 0x0205, kErrorCodeFsBufferNotAligned = 0x0206, kErrorCodeFsTooShortRead = 0x0207, kErrorCodeFsExcessRead = 0x0208, kErrorCodeFsWriteFail = 0x0209, kErrorCodeFsExcessWrite = 0x020A, kErrorCodeFsNotOpened = 0x020B, kErrorCodeFsSyncFailed = 0x020C, kErrorCodeFsMkdirFailed = 0x020D, kErrorCodeFsTruncateFailed = 0x020E, kErrorCodeFsResultNotAligned = 0x020F, kErrorCodeMemoryNoFreePages = 0x0301, kErrorCodeMemoryDuplicatePage = 0x0302, kErrorCodeMemoryPagePoolTooSmall = 0x0303, kErrorCodeMemoryNumaUnavailable = 0x0304, kErrorCodeConfParseFailed = 0x0401, kErrorCodeConfValueOutofrange = 0x0402, kErrorCodeConfMissingElement = 0x0403, kErrorCodeConfInvalidElement = 0x0404, kErrorCodeConfEmptyXml = 0x0405, kErrorCodeConfFileNotFount = 0x0406, kErrorCodeConfCouldNotWrite = 0x0407, kErrorCodeConfCouldNotRename = 0x0408, kErrorCodeConfMkdirsFailed = 0x0409, kErrorCodeLogInvalidLoggerCount = 0x0501, kErrorCodeLogInvalidApplyType = 0x0502, kErrorCodeLogInvalidLogType = 0x0503, kErrorCodeSnapshotInvalidLogEnd = 0x0601, kErrorCodeSnapshotCancelled = 0x0602, kErrorCodeSnapshotExitTimeout = 0x0603, kErrorCodeSpInconsistentSavepoint = 0x0701, kErrorCodeStrDuplicateStrid = 0x0801, kErrorCodeStrAlreadyExists = 0x0802, kErrorCodeStrDuplicateStrname = 0x0803, kErrorCodeStrMustSeparateXct = 0x0804, kErrorCodeStrArrayInvalidOption = 0x0805, kErrorCodeStrWrongMetadataType = 0x0806, kErrorCodeStrUnsupportedMetadata = 0x0807, kErrorCodeStrTooLongPayload = 0x0808, kErrorCodeStrTooSmallPayloadBuffer = 0x0809, kErrorCodeStrTooShortPayload = 0x080A, kErrorCodeStrKeyAlreadyExists = 0x080B, kErrorCodeStrKeyNotFound = 0x080C, kErrorCodeStrHashBinsTooMany = 0x080D, kErrorCodeStrMasstreeRetry = 0x0811, kErrorCodeStrMasstreeTooManyRetries = 0x0812, kErrorCodeStrMasstreeFailedVerification = 0x0813, kErrorCodeStrMasstreeCursorTooDeep = 0x0814, kErrorCodeStrArrayFailedVerification = 0x0821, kErrorCodeStrTooManyStorages = 0x0822, kErrorCodeStrAlreadyDropped = 0x0823, kErrorCodeStrEmptyName = 0x0824, kErrorCodeStrPartitionerDataMemoryTooSmall = 0x0825, kErrorCodeStrTooLargeArray = 0x0826, kErrorCodeStrHashFailedVerification = 0x0827, kErrorCodeCacheNoFreePages = 0x0901, kErrorCodeCacheTableFull = 0x0902, kErrorCodeCacheTooManyOverflow = 0x0903, kErrorCodeXctReadSetOverflow = 0x0A01, kErrorCodeXctWriteSetOverflow = 0x0A02, kErrorCodeXctAlreadyRunning = 0x0A03, kErrorCodeXctNoXct = 0x0A04, kErrorCodeXctRaceAbort = 0x0A05, kErrorCodeXctPageVersionSetOverflow = 0x0A06, kErrorCodeXctPointerSetOverflow = 0x0A07, kErrorCodeXctUserAbort = 0x0A08, kErrorCodeXctNoMoreLocalWorkMemory = 0x0A09, kErrorCodeRecordTemperatureChange = 0x0AA0, kErrorCodeXctLockAbort = 0x0AA1, kErrorCodeLockCancelled = 0x0AA2, kErrorCodeLockRequested = 0x0AA3, kErrorCodeXctTwoSysXcts = 0x0AA4, kErrorCodeXctMustBeInSysXcts = 0x0AA5, kErrorCodeDbgGperftools = 0x0B01, kErrorCodeSocShmAllocFailed = 0x0C01, kErrorCodeSocShmAttachFailed = 0x0C02, kErrorCodeSocForkFailed = 0x0C03, kErrorCodeSocSpawnFailed = 0x0C04, kErrorCodeSocEmulateFailed = 0x0C05, kErrorCodeSocLaunchTimeout = 0x0C06, kErrorCodeSocMasterDied = 0x0C07, kErrorCodeSocMasterUnexpectedState = 0x0C08, kErrorCodeSocTerminateTimeout = 0x0C09, kErrorCodeSocTerminateFailed = 0x0C0A, kErrorCodeSocChildInitFailed = 0x0C0B, kErrorCodeSocChildUninitFailed = 0x0C0C, kErrorCodeProcPreRegisterTooLate = 0x0D01, kErrorCodeProcRegisterTooEarly = 0x0D02, kErrorCodeProcRegisterUnsupportedSocType = 0x0D03, kErrorCodeProcRegisterMasterOnly = 0x0D04, kErrorCodeProcRegisterChildOnly = 0x0D05, kErrorCodeProcNotFound = 0x0D06, kErrorCodeProcProcAlreadyExists = 0x0D07, kErrorCodeThrNoThreadAvailable = 0x0E01 }
	Enum of error codes defined in error_code.xmacro. More...

enum	ModuleType { kInvalid = 0, kSoc, kDebug, kProc, kMemory, kSavepoint, kThread, kLog, kSnapshot, kCache, kStorage, kXct, kRestart, kDummyTail }
	Enumerates modules in FOEDUS engine. More...

Functions
std::string	print_assert (const char file, const char func, int line, const char *description)
	Helper function to report what assertion failed. More...

std::string	print_backtrace ()
	Prints out backtrace. More...

void	print_assert_backtrace (const char file, const char func, int line, const char *description)
	print_assert() + print_backtrace(). More...

std::string	get_recent_assert_backtrace ()
	Retrieves the info left by print_assert_backtrace(). More...

const char *	get_error_name (ErrorCode code)
	Returns the names of ErrorCode enum defined in error_code.xmacro. More...

const char *	get_error_message (ErrorCode code)
	Returns the error messages corresponding to ErrorCode enum defined in error_code.xmacro. More...

template<typename ENGINE_OPTION_PTR , typename CHILD_PTR >
std::vector< CHILD_PTR >	get_children_impl (ENGINE_OPTION_PTR option)

std::vector< externalize::Externalizable * >	get_children (EngineOptions *option)

std::vector< const externalize::Externalizable * >	get_children (const EngineOptions *option)

std::ostream &	operator<< (std::ostream &o, const Epoch &v)

std::ostream &	operator<< (std::ostream &o, const ErrorStack &obj)

std::ostream &	operator<< (std::ostream &o, const ErrorStackBatch &obj)

std::ostream &	operator<< (std::ostream &o, const FixedErrorStack &obj)

Variables
const Epoch	INVALID_EPOCH
	A constant epoch object that represents an invalid epoch. More...

const ErrorStack	kRetOk
	Normal return value for no-error case. More...

std::string	static_recent_assert_backtrace
	Leaves recent crash information in a static global variable so that a signal handler can pick it. More...

std::string	static_recent_dump_and_abort
	Leaves recent dump information in a static global variable so that a signal handler can pick it. More...

Typedef Documentation

typedef uint64_t foedus::Eid

An Engine ID to differentiate two Engine objects instantiated in the same process.

This and soc::Upid uniquely identify an Engine instance.

Definition at line 29 of file engine_type.hpp.

Function Documentation

std::vector< externalize::Externalizable* > foedus::get_children ( EngineOptions * option )

Definition at line 62 of file engine_options.cpp.

Referenced by foedus::EngineOptions::load(), foedus::EngineOptions::operator=(), and foedus::EngineOptions::save().

                                                                             {
   return get_children_impl<EngineOptions*, externalize::Externalizable*>(option);
 }

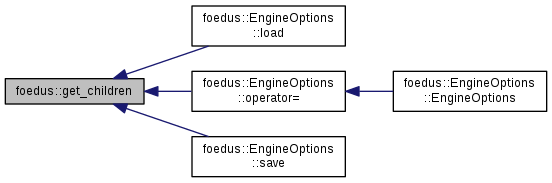

Here is the caller graph for this function:

std::vector< const externalize::Externalizable* > foedus::get_children ( const EngineOptions * option )

Definition at line 65 of file engine_options.cpp.

                                                                                         {
   return get_children_impl<const EngineOptions*, const externalize::Externalizable*>(option);
 }

template<typename ENGINE_OPTION_PTR , typename CHILD_PTR >

std::vector< CHILD_PTR > foedus::get_children_impl ( ENGINE_OPTION_PTR option )

Definition at line 46 of file engine_options.cpp.

                                                                    {
   std::vector< CHILD_PTR > children;
   children.push_back(&option->cache_);
   children.push_back(&option->debugging_);
   children.push_back(&option->log_);
   children.push_back(&option->memory_);
   children.push_back(&option->proc_);
   children.push_back(&option->restart_);
   children.push_back(&option->savepoint_);
   children.push_back(&option->snapshot_);
   children.push_back(&option->soc_);
   children.push_back(&option->storage_);
   children.push_back(&option->thread_);
   children.push_back(&option->xct_);
   return children;
 }

std::string foedus::get_recent_assert_backtrace ( )

Retrieves the info left by print_assert_backtrace().

Called by signal handler

Definition at line 60 of file assert_nd.cpp.

References static_recent_assert_backtrace.

                                         {
   return static_recent_assert_backtrace;
 }

std::ostream& foedus::operator<<	(	std::ostream &	o,
		const Epoch &	v
	)

Definition at line 23 of file epoch.cpp.

References foedus::Epoch::is_valid(), and foedus::Epoch::value().

                                                       {
   if (v.is_valid()) {
     o << v.value();
   } else {
     o << "<INVALID>";
   }
   return o;
 }

Here is the call graph for this function:

std::ostream& foedus::operator<<	(	std::ostream &	o,
		const ErrorStackBatch &	obj
	)

Definition at line 43 of file error_stack_batch.cpp.

References SUMMARIZE_ERROR_BATCH.

                                                                   {
   o << SUMMARIZE_ERROR_BATCH(obj);
   return o;
 }

std::ostream& foedus::operator<<	(	std::ostream &	o,
		const ErrorStack &	obj
	)

Definition at line 78 of file error_stack.cpp.

References foedus::ErrorStack::output().

                                                              {
   obj.output(&o);
   return o;
 }

Here is the call graph for this function:

std::ostream& foedus::operator<<	(	std::ostream &	o,
		const FixedErrorStack &	obj
	)

Definition at line 106 of file fixed_error_stack.cpp.

References foedus::FixedErrorStack::output().

                                                                   {
   obj.output(&o);
   return o;
 }

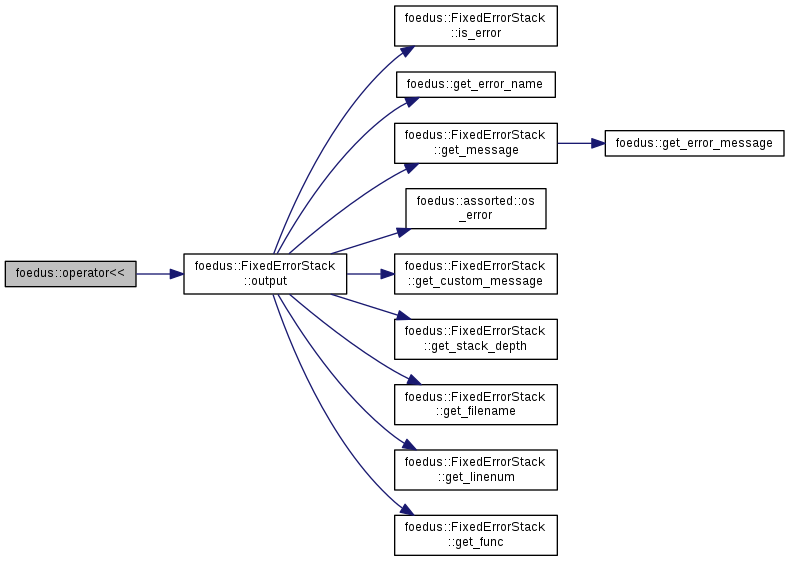

Here is the call graph for this function:

std::string foedus::print_assert	(	const char *	file,
		const char *	func,
		int	line,
		const char *	description
	)

Helper function to report what assertion failed.

Definition at line 28 of file assert_nd.cpp.

Referenced by print_assert_backtrace().

                                                                                               {
   std::stringstream str;
   str << "***************************************************************************" << std::endl;
   str << "**** Assertion failed! \"" << description
     << "\" did not hold in " << func << "(): " << file << ":" << line << std::endl;
   str << "***************************************************************************" << std::endl;
   return str.str();
 }

Here is the caller graph for this function:

void foedus::print_assert_backtrace	(	const char *	file,
		const char *	func,
		int	line,
		const char *	description
	)

print_assert() + print_backtrace().

It also leaves the info in a global variable so that signal handler can show that later.

Definition at line 52 of file assert_nd.cpp.

References print_assert(), and print_backtrace().

                                                                                                    {
   std::string message = print_assert(file, func, line, description);
   message += print_backtrace();
   static_recent_assert_backtrace += message;
   std::cerr << message;
 }

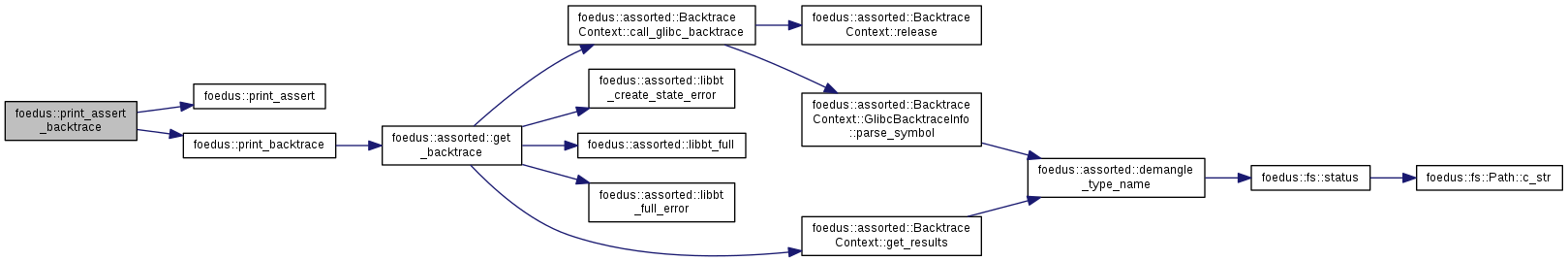

Here is the call graph for this function:

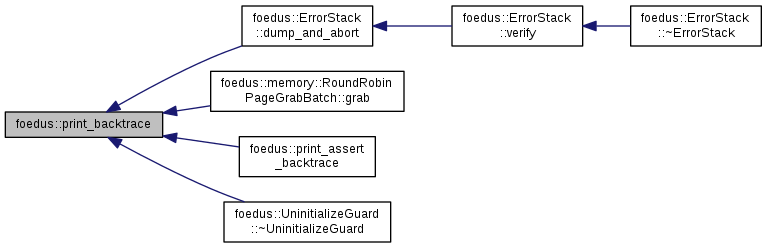

std::string foedus::print_backtrace ( )

Prints out backtrace.

This method is best-effort, maybe do nothing in some compiler/OS.

Definition at line 37 of file assert_nd.cpp.

References foedus::assorted::get_backtrace().

Referenced by foedus::ErrorStack::dump_and_abort(), foedus::memory::RoundRobinPageGrabBatch::grab(), print_assert_backtrace(), and foedus::UninitializeGuard::~UninitializeGuard().

                             {
   std::vector<std::string> traces = assorted::get_backtrace(true);
   std::stringstream str;
   str << "=== Stack frame (length=" << traces.size() << ")" << std::endl;
   for (uint16_t i = 0; i < traces.size(); ++i) {
     str << "- [" << i << "/" << traces.size() << "] " << traces[i] << std::endl;
   }
   return str.str();
 }
