foedus::externalize::Externalizable Struct Referenceabstract
FOEDUS Programming Idioms » Object Externalization

Represents an object that can be written to and read from files/bytes in XML format. More...

Detailed Description

Represents an object that can be written to and read from files/bytes in XML format.

Derived classes must implement load() and save().

Definition at line 53 of file externalizable.hpp.

#include <externalizable.hpp>

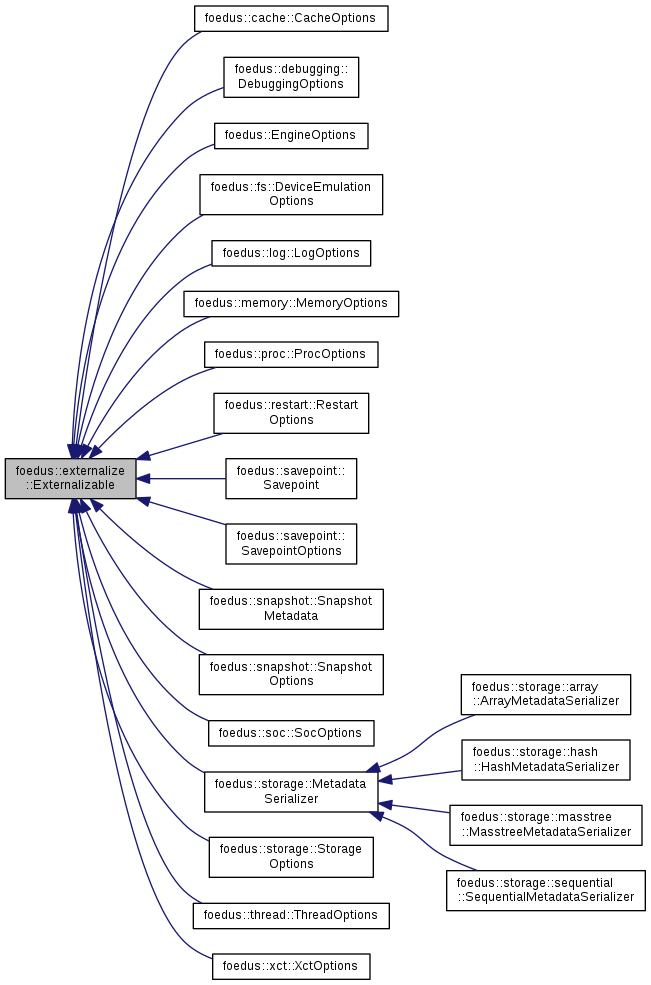

Inheritance diagram for foedus::externalize::Externalizable:
Inheritance graph
[legend]

Public Member Functions

virtual ErrorStack load (tinyxml2::XMLElement *element)=0
 Reads the content of this object from the given XML element. More...

virtual ErrorStack save (tinyxml2::XMLElement *element) const =0
 Writes the content of this object to the given XML element. More...

virtual const char * get_tag_name () const =0
 Returns an XML tag name for this object as a root element. More...

virtual void assign (const foedus::externalize::Externalizable *other)=0
 Polymorphic assign operator. More...

ErrorStack load_from_string (const std::string &xml)
 Load the content of this object from the given XML string. More...

void save_to_stream (std::ostream *ptr) const
 Invokes save() and directs the resulting XML text to the given stream. More...

ErrorStack load_from_file (const fs::Path &path)
 Load the content of this object from the specified XML file. More...

ErrorStack save_to_file (const fs::Path &path) const
 Atomically and durably writes out this object to the specified XML file. More...


Static Public Member Functions

static ErrorStack insert_comment (tinyxml2::XMLElement *element, const std::string &comment)

static ErrorStack append_comment (tinyxml2::XMLElement *parent, const std::string &comment)

static ErrorStack create_element (tinyxml2::XMLElement *parent, const std::string &name, tinyxml2::XMLElement **out)

template<typename T >
static ErrorStack add_element (tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, T value)
 Only declaration in header. More...

template<uint MAXLEN, typename CHAR >
static ErrorStack add_element (tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, const assorted::FixedString< MAXLEN, CHAR > &value)

template<typename T >
static ErrorStack add_element (tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, const std::vector< T > &value)
 vector version More...

template<typename ENUM >
static ErrorStack add_enum_element (tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, ENUM value)
 enum version More...

static ErrorStack add_child_element (tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, const Externalizable &child)
 child Externalizable version More...

template<typename T >
static ErrorStack get_element (tinyxml2::XMLElement *parent, const std::string &tag, T *out, bool optional=false, T value=0)
 Only declaration in header. More...

static ErrorStack get_element (tinyxml2::XMLElement *parent, const std::string &tag, std::string *out, bool optional=false, const char *value="")
 string type is bit special. More...

template<uint MAXLEN, typename CHAR >
static ErrorStack get_element (tinyxml2::XMLElement *parent, const std::string &tag, assorted::FixedString< MAXLEN, CHAR > *out, bool optional=false, const assorted::FixedString< MAXLEN, CHAR > &value=assorted::FixedString< MAXLEN, CHAR >())

template<typename ENUM >
static ErrorStack get_enum_element (tinyxml2::XMLElement *parent, const std::string &tag, ENUM *out, bool optional=false, ENUM default_value=static_cast< ENUM >(0))
 enum version More...

template<typename T >
static ErrorStack get_element (tinyxml2::XMLElement *parent, const std::string &tag, std::vector< T > *out, bool optional=false)
 vector version. More...

static ErrorStack get_child_element (tinyxml2::XMLElement *parent, const std::string &tag, Externalizable *child, bool optional=false)
 child Externalizable version More...


Member Function Documentation

ErrorStack foedus::externalize::Externalizable::add_child_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
const std::string &  comment,
const Externalizable &  child
)
static

child Externalizable version

Definition at line 221 of file externalizable.cpp.

References CHECK_ERROR, CHECK_OUTOFMEMORY, foedus::externalize::insert_comment_impl(), foedus::kRetOk, and save().

Referenced by foedus::log::LogOptions::save(), foedus::EngineOptions::save(), foedus::snapshot::SnapshotOptions::save(), foedus::storage::save_to_xml_array(), foedus::storage::save_to_xml_hash(), foedus::storage::save_to_xml_masstree(), and foedus::storage::save_to_xml_sequential().

222  {
223  tinyxml2::XMLElement* element = parent->GetDocument()->NewElement(tag.c_str());
224  CHECK_OUTOFMEMORY(element);
225  parent->InsertEndChild(element);
226  CHECK_ERROR(insert_comment_impl(element, comment));
227  CHECK_ERROR(child.save(element));
228  return kRetOk;
229 }
foedus::externalize::insert_comment_impl
ErrorStack insert_comment_impl(tinyxml2::XMLElement *element, const std::string &comment)
Definition: externalizable.cpp:159
CHECK_OUTOFMEMORY
#define CHECK_OUTOFMEMORY(ptr)
This macro checks if ptr is nullptr, and if so exists with kErrorCodeOutofmemory error stack...
Definition: error_stack.hpp:590
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T >
ErrorStack foedus::externalize::Externalizable::add_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
const std::string &  comment,
T  value
)
static

Only declaration in header.

Explicitly instantiated in cpp for each type this func handles.

Definition at line 200 of file externalizable.cpp.

References CHECK_ERROR, CHECK_OUTOFMEMORY, foedus::externalize::insert_comment_impl(), and foedus::kRetOk.

Referenced by add_element(), add_enum_element(), foedus::storage::sequential::SequentialMetadataSerializer::save(), foedus::storage::hash::HashMetadataSerializer::save(), foedus::storage::array::ArrayMetadataSerializer::save(), foedus::storage::masstree::MasstreeMetadataSerializer::save(), and foedus::storage::MetadataSerializer::save_base().

201  {
202  tinyxml2::XMLElement* element = parent->GetDocument()->NewElement(tag.c_str());
203  CHECK_OUTOFMEMORY(element);
204  TinyxmlSetter<T> tinyxml_setter;
205  tinyxml_setter(element, value);
206  parent->InsertEndChild(element);
207  if (comment.size() > 0) {
208  CHECK_ERROR(insert_comment_impl(element,
209  tag + " (type=" + assorted::get_pretty_type_name<T>() + "): " + comment));
210  }
211  return kRetOk;
212 }
foedus::externalize::insert_comment_impl
ErrorStack insert_comment_impl(tinyxml2::XMLElement *element, const std::string &comment)
Definition: externalizable.cpp:159
CHECK_OUTOFMEMORY
#define CHECK_OUTOFMEMORY(ptr)
This macro checks if ptr is nullptr, and if so exists with kErrorCodeOutofmemory error stack...
Definition: error_stack.hpp:590
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251

Here is the call graph for this function:

Here is the caller graph for this function:

template<uint MAXLEN, typename CHAR >
static ErrorStack foedus::externalize::Externalizable::add_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
const std::string &  comment,
const assorted::FixedString< MAXLEN, CHAR > &  value
)
inlinestatic

Definition at line 134 of file externalizable.hpp.

References foedus::assorted::FixedString< MAXLEN, CHAR >::str().

138  {
139  return add_element< std::string >(parent, tag, comment, value.str());
140  }

Here is the call graph for this function:

template<typename T >
static ErrorStack foedus::externalize::Externalizable::add_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
const std::string &  comment,
const std::vector< T > &  value
)
inlinestatic

vector version

Definition at line 144 of file externalizable.hpp.

References add_element(), append_comment(), CHECK_ERROR, foedus::assorted::get_pretty_type_name(), and foedus::kRetOk.

145  {
146  if (comment.size() > 0) {
147  CHECK_ERROR(append_comment(parent,
148  tag + " (type=" + assorted::get_pretty_type_name< std::vector< T > >()
149  + "): " + comment));
150  }
151  for (std::size_t i = 0; i < value.size(); ++i) {
152  CHECK_ERROR(add_element(parent, tag, "", value[i]));
153  }
154  return kRetOk;
155  }
foedus::externalize::Externalizable::append_comment
static ErrorStack append_comment(tinyxml2::XMLElement *parent, const std::string &comment)
Definition: externalizable.cpp:181
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
foedus::assorted::get_pretty_type_name
std::string get_pretty_type_name()
Returns the name of the C++ type as readable as possible.
Definition: assorted_func.hpp:215
foedus::externalize::Externalizable::add_element
static ErrorStack add_element(tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, T value)
Only declaration in header.
Definition: externalizable.cpp:200

Here is the call graph for this function:

template<typename ENUM >
static ErrorStack foedus::externalize::Externalizable::add_enum_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
const std::string &  comment,
ENUM  value
)
inlinestatic

enum version

Definition at line 159 of file externalizable.hpp.

References add_element().

Referenced by foedus::storage::MetadataSerializer::save_base().

160  {
161  return add_element(parent, tag, comment, static_cast<int64_t>(value));
162  }
foedus::externalize::Externalizable::add_element
static ErrorStack add_element(tinyxml2::XMLElement *parent, const std::string &tag, const std::string &comment, T value)
Only declaration in header.
Definition: externalizable.cpp:200

Here is the call graph for this function:

Here is the caller graph for this function:

ErrorStack foedus::externalize::Externalizable::append_comment ( tinyxml2::XMLElement *  parent,
const std::string &  comment
)
static

Definition at line 181 of file externalizable.cpp.

References CHECK_OUTOFMEMORY, and foedus::kRetOk.

Referenced by add_element().

182  {
183  if (comment.size() > 0) {
184  tinyxml2::XMLComment* cm = parent->GetDocument()->NewComment(comment.c_str());
185  CHECK_OUTOFMEMORY(cm);
186  parent->InsertEndChild(cm);
187  }
188  return kRetOk;
189 }
CHECK_OUTOFMEMORY
#define CHECK_OUTOFMEMORY(ptr)
This macro checks if ptr is nullptr, and if so exists with kErrorCodeOutofmemory error stack...
Definition: error_stack.hpp:590
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251

Here is the caller graph for this function:

virtual void foedus::externalize::Externalizable::assign ( const foedus::externalize::Externalizable *  other)
pure virtual

Polymorphic assign operator.

This should invoke operator= of the derived class.

Parameters
[in]otherassigned value. It must be dynamic-castable to the assignee class.

Implemented in foedus::snapshot::SnapshotOptions, foedus::EngineOptions, foedus::storage::masstree::MasstreeMetadataSerializer, foedus::memory::MemoryOptions, foedus::savepoint::Savepoint, foedus::log::LogOptions, foedus::debugging::DebuggingOptions, foedus::cache::CacheOptions, foedus::soc::SocOptions, foedus::storage::array::ArrayMetadataSerializer, foedus::storage::hash::HashMetadataSerializer, foedus::storage::sequential::SequentialMetadataSerializer, foedus::proc::ProcOptions, foedus::fs::DeviceEmulationOptions, foedus::thread::ThreadOptions, foedus::xct::XctOptions, foedus::storage::StorageOptions, foedus::snapshot::SnapshotMetadata, foedus::savepoint::SavepointOptions, and foedus::restart::RestartOptions.

ErrorStack foedus::externalize::Externalizable::create_element ( tinyxml2::XMLElement *  parent,
const std::string &  name,
tinyxml2::XMLElement **  out
)
static

Definition at line 191 of file externalizable.cpp.

References CHECK_OUTOFMEMORY, and foedus::kRetOk.

192  {
193  *out = parent->GetDocument()->NewElement(name.c_str());
194  CHECK_OUTOFMEMORY(*out);
195  parent->InsertEndChild(*out);
196  return kRetOk;
197 }
CHECK_OUTOFMEMORY
#define CHECK_OUTOFMEMORY(ptr)
This macro checks if ptr is nullptr, and if so exists with kErrorCodeOutofmemory error stack...
Definition: error_stack.hpp:590
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
ErrorStack foedus::externalize::Externalizable::get_child_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
Externalizable *  child,
bool  optional = false
)
static

child Externalizable version

Definition at line 293 of file externalizable.cpp.

References ERROR_STACK_MSG, foedus::kErrorCodeConfMissingElement, foedus::kRetOk, and load().

Referenced by foedus::log::LogOptions::load(), foedus::EngineOptions::load(), and foedus::snapshot::SnapshotOptions::load().

294  {
295  tinyxml2::XMLElement* element = parent->FirstChildElement(tag.c_str());
296  if (element) {
297  return child->load(element);
298  } else {
299  if (optional) {
300  return kRetOk;
301  } else {
302  return ERROR_STACK_MSG(kErrorCodeConfMissingElement, tag.c_str());
303  }
304  }
305 }
foedus::kErrorCodeConfMissingElement
0x0403 : "CONFIG : The xml element is missing in the config file." .
Definition: error_code.hpp:149
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T >
ErrorStack foedus::externalize::Externalizable::get_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
T *  out,
bool  optional = false,
T  value = 0
)
static

Only declaration in header.

Explicitly instantiated in cpp for each type this func handles.

Definition at line 232 of file externalizable.cpp.

References ERROR_STACK_MSG, foedus::kErrorCodeConfInvalidElement, foedus::kErrorCodeConfMissingElement, and foedus::kRetOk.

Referenced by get_element(), foedus::storage::sequential::SequentialMetadataSerializer::load(), foedus::storage::hash::HashMetadataSerializer::load(), foedus::storage::array::ArrayMetadataSerializer::load(), foedus::storage::masstree::MasstreeMetadataSerializer::load(), foedus::storage::MetadataSerializer::load_all_storages_from_xml(), and foedus::storage::MetadataSerializer::load_base().

233  {
234  TinyxmlGetter<T> tinyxml_getter;
235  tinyxml2::XMLElement* element = parent->FirstChildElement(tag.c_str());
236  if (element) {
237  tinyxml2::XMLError xml_error = tinyxml_getter(element, out);
238  if (xml_error == tinyxml2::XML_SUCCESS) {
239  return kRetOk;
240  } else {
241  return ERROR_STACK_MSG(kErrorCodeConfInvalidElement, tag.c_str());
242  }
243  } else {
244  if (optional) {
245  *out = default_value;
246  return kRetOk;
247  } else {
248  return ERROR_STACK_MSG(kErrorCodeConfMissingElement, tag.c_str());
249  }
250  }
251 }
foedus::kErrorCodeConfInvalidElement
0x0404 : "CONFIG : An invalid valud in the xml element." .
Definition: error_code.hpp:150
foedus::kErrorCodeConfMissingElement
0x0403 : "CONFIG : The xml element is missing in the config file." .
Definition: error_code.hpp:149
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498

Here is the caller graph for this function:

ErrorStack foedus::externalize::Externalizable::get_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
std::string *  out,
bool  optional = false,
const char *  value = ""
)
static

string type is bit special.

Definition at line 260 of file externalizable.cpp.

261  {
262  return get_element<std::string>(parent, tag, out, optional, std::string(default_value));
263 }
template<uint MAXLEN, typename CHAR >
static ErrorStack foedus::externalize::Externalizable::get_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
assorted::FixedString< MAXLEN, CHAR > *  out,
bool  optional = false,
const assorted::FixedString< MAXLEN, CHAR > &  value = assorted::FixedString<MAXLEN, CHAR>()
)
inlinestatic

Definition at line 178 of file externalizable.hpp.

References foedus::assorted::FixedString< MAXLEN, CHAR >::assign(), CHECK_ERROR, get_element(), and foedus::kRetOk.

183  {
184  std::string tmp_out;
185  CHECK_ERROR(get_element(parent, tag, &tmp_out, optional, value.str().c_str()));
186  out->assign(tmp_out.data(), tmp_out.size());
187  return kRetOk;
188  }
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
foedus::externalize::Externalizable::get_element
static ErrorStack get_element(tinyxml2::XMLElement *parent, const std::string &tag, T *out, bool optional=false, T value=0)
Only declaration in header.
Definition: externalizable.cpp:232

Here is the call graph for this function:

template<typename T>
ErrorStack foedus::externalize::Externalizable::get_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
std::vector< T > *  out,
bool  optional = false
)
static

vector version.

Only declaration in header. Explicitly instantiated in cpp for each type this func handles.

Definition at line 266 of file externalizable.cpp.

References ERROR_STACK_MSG, foedus::kErrorCodeConfInvalidElement, foedus::kErrorCodeConfMissingElement, and foedus::kRetOk.

267  {
268  out->clear();
269  TinyxmlGetter<T> tinyxml_getter;
270  for (tinyxml2::XMLElement* element = parent->FirstChildElement(tag.c_str());
271  element; element = element->NextSiblingElement(tag.c_str())) {
272  T tmp;
273  tinyxml2::XMLError xml_error = tinyxml_getter(element, &tmp);
274  if (xml_error == tinyxml2::XML_SUCCESS) {
275  out->push_back(tmp); // vector<bool> doesn't support emplace_back!
276  } else {
277  return ERROR_STACK_MSG(kErrorCodeConfInvalidElement, tag.c_str());
278  }
279  }
280  if (out->size() == 0 && !optional) {
281  return ERROR_STACK_MSG(kErrorCodeConfMissingElement, tag.c_str());
282  }
283  return kRetOk;
284 }
foedus::kErrorCodeConfInvalidElement
0x0404 : "CONFIG : An invalid valud in the xml element." .
Definition: error_code.hpp:150
foedus::kErrorCodeConfMissingElement
0x0403 : "CONFIG : The xml element is missing in the config file." .
Definition: error_code.hpp:149
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498
template<typename ENUM >
static ErrorStack foedus::externalize::Externalizable::get_enum_element ( tinyxml2::XMLElement *  parent,
const std::string &  tag,
ENUM *  out,
bool  optional = false,
ENUM  default_value = static_cast<ENUM>(0)
)
inlinestatic

enum version

Definition at line 192 of file externalizable.hpp.

References CHECK_ERROR, ERROR_STACK_MSG, foedus::kErrorCodeConfValueOutofrange, and foedus::kRetOk.

Referenced by foedus::storage::MetadataSerializer::load_all_storages_from_xml(), and foedus::storage::MetadataSerializer::load_base().

193  {
194  // enum might be signged or unsigned, 1 byte, 2 byte, or 4 byte.
195  // But surely it won't exceed int64_t range.
196  int64_t tmp;
197  CHECK_ERROR(get_element<int64_t>(parent, tag, &tmp, optional, default_value));
198  if (static_cast<int64_t>(static_cast<ENUM>(tmp)) != tmp) {
199  return ERROR_STACK_MSG(kErrorCodeConfValueOutofrange, tag.c_str());
200  }
201  *out = static_cast<ENUM>(tmp);
202  return kRetOk;
203  }
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
foedus::kErrorCodeConfValueOutofrange
0x0402 : "CONFIG : Configuration value out of range." .
Definition: error_code.hpp:148
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498

Here is the caller graph for this function:

virtual const char* foedus::externalize::Externalizable::get_tag_name ( ) const
pure virtual

Returns an XML tag name for this object as a root element.

We might want to give a different name for same externalizable objects, so this is used only when it is the root element of xml.

Implemented in foedus::snapshot::SnapshotOptions, foedus::EngineOptions, foedus::storage::masstree::MasstreeMetadataSerializer, foedus::memory::MemoryOptions, foedus::savepoint::Savepoint, foedus::log::LogOptions, foedus::debugging::DebuggingOptions, foedus::cache::CacheOptions, foedus::soc::SocOptions, foedus::storage::array::ArrayMetadataSerializer, foedus::storage::hash::HashMetadataSerializer, foedus::storage::sequential::SequentialMetadataSerializer, foedus::proc::ProcOptions, foedus::fs::DeviceEmulationOptions, foedus::thread::ThreadOptions, foedus::xct::XctOptions, foedus::storage::StorageOptions, foedus::snapshot::SnapshotMetadata, foedus::savepoint::SavepointOptions, and foedus::restart::RestartOptions.

Referenced by save_to_file(), and save_to_stream().

Here is the caller graph for this function:

ErrorStack foedus::externalize::Externalizable::insert_comment ( tinyxml2::XMLElement *  element,
const std::string &  comment
)
static

Definition at line 177 of file externalizable.cpp.

References foedus::externalize::insert_comment_impl().

Referenced by foedus::restart::RestartOptions::save(), foedus::savepoint::SavepointOptions::save(), foedus::snapshot::SnapshotMetadata::save(), foedus::storage::StorageOptions::save(), foedus::xct::XctOptions::save(), foedus::thread::ThreadOptions::save(), foedus::proc::ProcOptions::save(), foedus::soc::SocOptions::save(), foedus::cache::CacheOptions::save(), foedus::debugging::DebuggingOptions::save(), foedus::log::LogOptions::save(), foedus::savepoint::Savepoint::save(), foedus::memory::MemoryOptions::save(), foedus::EngineOptions::save(), and foedus::snapshot::SnapshotOptions::save().

178  {
179  return insert_comment_impl(element, comment);
180 }
foedus::externalize::insert_comment_impl
ErrorStack insert_comment_impl(tinyxml2::XMLElement *element, const std::string &comment)
Definition: externalizable.cpp:159

Here is the call graph for this function:

Here is the caller graph for this function:

virtual ErrorStack foedus::externalize::Externalizable::load ( tinyxml2::XMLElement *  element)
pure virtual

Reads the content of this object from the given XML element.

Parameters
[in]elementthe XML element that represents this object

Expect errors due to missing-elements, out-of-range values, etc.

Implemented in foedus::snapshot::SnapshotOptions, foedus::EngineOptions, foedus::storage::masstree::MasstreeMetadataSerializer, foedus::memory::MemoryOptions, foedus::savepoint::Savepoint, foedus::log::LogOptions, foedus::debugging::DebuggingOptions, foedus::cache::CacheOptions, foedus::soc::SocOptions, foedus::storage::array::ArrayMetadataSerializer, foedus::storage::hash::HashMetadataSerializer, foedus::storage::sequential::SequentialMetadataSerializer, foedus::proc::ProcOptions, foedus::fs::DeviceEmulationOptions, foedus::thread::ThreadOptions, foedus::xct::XctOptions, foedus::storage::StorageOptions, foedus::snapshot::SnapshotMetadata, foedus::savepoint::SavepointOptions, and foedus::restart::RestartOptions.

Referenced by get_child_element(), load_from_file(), and load_from_string().

Here is the caller graph for this function:

ErrorStack foedus::externalize::Externalizable::load_from_file ( const fs::Path &  path)

Load the content of this object from the specified XML file.

Parameters
[in]pathpath of the XML file.

Expect errors due to missing-elements, out-of-range values, etc.

Definition at line 75 of file externalizable.cpp.

References foedus::fs::Path::c_str(), CHECK_ERROR, ERROR_STACK_MSG, foedus::fs::exists(), foedus::kErrorCodeConfEmptyXml, foedus::kErrorCodeConfFileNotFount, foedus::kErrorCodeConfParseFailed, foedus::kRetOk, and load().

Referenced by foedus::savepoint::SavepointManagerPimpl::initialize_once(), and foedus::snapshot::SnapshotManagerPimpl::read_snapshot_metadata().

75  {
76  tinyxml2::XMLDocument document;
77  if (!fs::exists(path)) {
78  return ERROR_STACK_MSG(kErrorCodeConfFileNotFount, path.c_str());
79  }
80
81  tinyxml2::XMLError load_error = document.LoadFile(path.c_str());
82  if (load_error != tinyxml2::XML_SUCCESS) {
83  std::stringstream custom_message;
84  custom_message << "problemtic file=" << path << ", tinyxml2 error=" << load_error
85  << ", GetErrorStr1()=" << document.GetErrorStr1()
86  << ", GetErrorStr2()=" << document.GetErrorStr2();
87  return ERROR_STACK_MSG(kErrorCodeConfParseFailed, custom_message.str().c_str());
88  } else if (!document.RootElement()) {
89  return ERROR_STACK_MSG(kErrorCodeConfEmptyXml, path.c_str());
90  } else {
91  CHECK_ERROR(load(document.RootElement()));
92  }
93  return kRetOk;
94 }
foedus::kErrorCodeConfFileNotFount
0x0406 : "CONFIG : The file doesn't exist." .
Definition: error_code.hpp:152
foedus::kErrorCodeConfParseFailed
0x0401 : "CONFIG : Config file parsing failed. This usually means an invalid XML file." .
Definition: error_code.hpp:147
foedus::fs::exists
bool exists(const Path &p)
Returns if the file exists.
Definition: filesystem.hpp:128
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
foedus::kErrorCodeConfEmptyXml
0x0405 : "CONFIG : No root element in the xml." .
Definition: error_code.hpp:151
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498
foedus::externalize::Externalizable::load
virtual ErrorStack load(tinyxml2::XMLElement *element)=0
Reads the content of this object from the given XML element.

Here is the call graph for this function:

Here is the caller graph for this function:

ErrorStack foedus::externalize::Externalizable::load_from_string ( const std::string &  xml)

Load the content of this object from the given XML string.

Parameters
[in]xmlXML string.

Expect errors due to missing-elements, out-of-range values, etc.

Definition at line 38 of file externalizable.cpp.

References CHECK_ERROR, ERROR_STACK_MSG, foedus::kErrorCodeConfEmptyXml, foedus::kErrorCodeConfParseFailed, foedus::kRetOk, and load().

Referenced by foedus::soc::SharedMemoryRepo::attach_shared_memories().

38  {
39  tinyxml2::XMLDocument document;
40  tinyxml2::XMLError load_error = document.Parse(xml.data(), xml.size());
41  if (load_error != tinyxml2::XML_SUCCESS) {
42  std::stringstream custom_message;
43  custom_message << "xml=" << xml << ", tinyxml2 error=" << load_error
44  << ", GetErrorStr1()=" << document.GetErrorStr1()
45  << ", GetErrorStr2()=" << document.GetErrorStr2();
46  return ERROR_STACK_MSG(kErrorCodeConfParseFailed, custom_message.str().c_str());
47  } else if (!document.RootElement()) {
48  return ERROR_STACK_MSG(kErrorCodeConfEmptyXml, xml.c_str());
49  } else {
50  CHECK_ERROR(load(document.RootElement()));
51  }
52  return kRetOk;
53 }
foedus::kErrorCodeConfParseFailed
0x0401 : "CONFIG : Config file parsing failed. This usually means an invalid XML file." .
Definition: error_code.hpp:147
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
foedus::kErrorCodeConfEmptyXml
0x0405 : "CONFIG : No root element in the xml." .
Definition: error_code.hpp:151
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498
foedus::externalize::Externalizable::load
virtual ErrorStack load(tinyxml2::XMLElement *element)=0
Reads the content of this object from the given XML element.

Here is the call graph for this function:

Here is the caller graph for this function:

virtual ErrorStack foedus::externalize::Externalizable::save ( tinyxml2::XMLElement *  element) const
pure virtual

Writes the content of this object to the given XML element.

Parameters
[in]elementthe XML element that represents this object

Expect only out-of-memory error. We receive the XML element this object will represent, so this method does not determine the XML element name of itself. The parent object determines children's tag names because one parent object might have multiple child objects of the same type with different XML element name.

Implemented in foedus::snapshot::SnapshotOptions, foedus::EngineOptions, foedus::storage::masstree::MasstreeMetadataSerializer, foedus::memory::MemoryOptions, foedus::savepoint::Savepoint, foedus::log::LogOptions, foedus::debugging::DebuggingOptions, foedus::cache::CacheOptions, foedus::soc::SocOptions, foedus::storage::array::ArrayMetadataSerializer, foedus::storage::hash::HashMetadataSerializer, foedus::storage::sequential::SequentialMetadataSerializer, foedus::proc::ProcOptions, foedus::fs::DeviceEmulationOptions, foedus::thread::ThreadOptions, foedus::xct::XctOptions, foedus::storage::StorageOptions, foedus::snapshot::SnapshotMetadata, foedus::savepoint::SavepointOptions, and foedus::restart::RestartOptions.

Referenced by add_child_element(), save_to_file(), and save_to_stream().

Here is the caller graph for this function:

ErrorStack foedus::externalize::Externalizable::save_to_file ( const fs::Path &  path) const

Atomically and durably writes out this object to the specified XML file.

Parameters
[in]pathpath of the XML file.

If the file exists, this method atomically overwrites it via POSIX's atomic rename semantics. If the parent folder doesn't exist, this method automatically creates the folder. Expect errors due to file-permission (and other file I/O issue), out-of-memory, etc.

Definition at line 96 of file externalizable.cpp.

References foedus::memory::AlignedMemory::alloc(), CHECK_ERROR, CHECK_OUTOFMEMORY, foedus::fs::DirectIoFile::close(), foedus::fs::create_directories(), foedus::fs::durable_atomic_rename(), ERROR_STACK_MSG, foedus::fs::exists(), foedus::fs::fsync(), get_tag_name(), foedus::kErrorCodeConfCouldNotRename, foedus::kErrorCodeConfCouldNotWrite, foedus::kErrorCodeConfMkdirsFailed, foedus::memory::AlignedMemory::kPosixMemalign, foedus::kRetOk, foedus::fs::DirectIoFile::open(), foedus::assorted::os_error(), foedus::fs::Path::parent_path(), save(), foedus::fs::unique_name(), WRAP_ERROR_CODE, and foedus::fs::DirectIoFile::write().

Referenced by foedus::savepoint::SavepointManagerPimpl::initialize_once(), foedus::savepoint::SavepointManagerPimpl::savepoint_main(), and foedus::snapshot::SnapshotManagerPimpl::snapshot_metadata().

96  {
97  // construct the XML in memory
98  tinyxml2::XMLDocument document;
99  tinyxml2::XMLElement* root = document.NewElement(get_tag_name());
100  CHECK_OUTOFMEMORY(root);
101  document.InsertFirstChild(root);
102  CHECK_ERROR(save(root));
103
104  fs::Path folder = path.parent_path();
105  // create the folder if not exists
106  if (!fs::exists(folder)) {
107  if (!fs::create_directories(folder, true)) {
108  std::stringstream custom_message;
109  custom_message << "file=" << path << ", folder=" << folder
110  << ", err=" << assorted::os_error();
111  return ERROR_STACK_MSG(kErrorCodeConfMkdirsFailed, custom_message.str().c_str());
112  }
113  }
114
115  // Retrieve an XML representation. We initially used document.SaveFile(), but
116  // it is not ideal as it uses non-aligned non-O_DIRECT APIs.
117  // This caused a data loss in our NVDIMM environment.
118  tinyxml2::XMLPrinter xml_stream;
119  document.Print(&xml_stream);
120  const uint32_t non_aligned_size = xml_stream.CStrSize();
121  const uint32_t aligned_size = assorted::align<uint32_t, 1U << 12>(non_aligned_size);
122  memory::AlignedMemory xml_memory;
123  xml_memory.alloc(aligned_size, 1U << 12, memory::AlignedMemory::kPosixMemalign, 0);
124  if (xml_memory.is_null()) {
125  return ERROR_STACK_MSG(kErrorCodeConfCouldNotWrite, "Out of memory in posix_memalign");
126  }
127  char* buffer = reinterpret_cast<char*>(xml_memory.get_block());
128  std::memcpy(buffer, xml_stream.CStr(), non_aligned_size);
129  std::memset(buffer + non_aligned_size, '\n', aligned_size - non_aligned_size); // LF padding
130
131  // To atomically save a file, we write to a temporary file and call sync, then use POSIX rename.
132  fs::Path tmp_path(path);
133  tmp_path += ".tmp_";
134  tmp_path += fs::unique_name("%%%%%%%%");
135
136  {
137  // Use Direct I/O to save this file. For all critical files, we always use
138  // open/write with O_DIRECT.
139  fs::DirectIoFile tmp_file(tmp_path);
140  WRAP_ERROR_CODE(tmp_file.open(false, true, true, true));
141  WRAP_ERROR_CODE(tmp_file.write(aligned_size, xml_memory));
142  tmp_file.close();
143  // TASK(Hideaki) We should not need the following fsync. Let's test this later.
144  // For now, do a safer thing.
145  fs::fsync(tmp_path, true);
146  }
147
148  if (!fs::durable_atomic_rename(tmp_path, path)) {
149  std::stringstream custom_message;
150  custom_message << "dest file=" << path << ", src file=" << tmp_path
151  << ", err=" << assorted::os_error();
152  return ERROR_STACK_MSG(kErrorCodeConfCouldNotRename, custom_message.str().c_str());
153  }
154
155  return kRetOk;
156 }
foedus::kErrorCodeConfCouldNotRename
0x0408 : "CONFIG : Failed to atomically rename the temporary file to destination." ...
Definition: error_code.hpp:154
CHECK_OUTOFMEMORY
#define CHECK_OUTOFMEMORY(ptr)
This macro checks if ptr is nullptr, and if so exists with kErrorCodeOutofmemory error stack...
Definition: error_stack.hpp:590
foedus::kErrorCodeConfMkdirsFailed
0x0409 : "CONFIG : Failed to create a directory. Check permissions." .
Definition: error_code.hpp:155
foedus::kErrorCodeConfCouldNotWrite
0x0407 : "CONFIG : Failed to write a configuration file." .
Definition: error_code.hpp:153
foedus::fs::durable_atomic_rename
bool durable_atomic_rename(const Path &old_path, const Path &new_path)
fsync() on source file before rename, then fsync() on the parent folder after rename.
Definition: filesystem.cpp:236
foedus::fs::create_directories
bool create_directories(const Path &p, bool sync=false)
Recursive mkdir (mkdirs).
Definition: filesystem.cpp:89
foedus::fs::exists
bool exists(const Path &p)
Returns if the file exists.
Definition: filesystem.hpp:128
foedus::externalize::Externalizable::get_tag_name
virtual const char * get_tag_name() const =0
Returns an XML tag name for this object as a root element.
foedus::assorted::os_error
std::string os_error()
Thread-safe strerror(errno).
Definition: assorted_func.cpp:67
foedus::externalize::Externalizable::save
virtual ErrorStack save(tinyxml2::XMLElement *element) const =0
Writes the content of this object to the given XML element.
CHECK_ERROR
#define CHECK_ERROR(x)
This macro calls x and checks its returned value.
Definition: error_stack.hpp:517
foedus::fs::unique_name
std::string unique_name(uint64_t differentiator=0)
Equivalent to unique_path("%%%%-%%%%-%%%%-%%%%").
Definition: filesystem.cpp:174
foedus::kRetOk
const ErrorStack kRetOk
Normal return value for no-error case.
Definition: error_stack.hpp:251
ERROR_STACK_MSG
#define ERROR_STACK_MSG(e, m)
Overload of ERROR_STACK(e) to receive a custom error message.
Definition: error_stack.hpp:498
WRAP_ERROR_CODE
#define WRAP_ERROR_CODE(x)
Same as CHECK_ERROR(x) except it receives only an error code, thus more efficient.
Definition: error_stack.hpp:533
foedus::fs::fsync
bool fsync(const Path &path, bool sync_parent_directory=false)
Makes the content and metadata of the file durable all the way up to devices.
Definition: filesystem.cpp:203

Here is the call graph for this function:

Here is the caller graph for this function:

void foedus::externalize::Externalizable::save_to_stream ( std::ostream *  ptr) const

Invokes save() and directs the resulting XML text to the given stream.

Parameters
[in]ptrostream to write to.

Definition at line 55 of file externalizable.cpp.

References get_tag_name(), foedus::ErrorStack::is_error(), and save().

Referenced by foedus::soc::SharedMemoryRepo::allocate_shared_memories().

55  {
56  std::ostream &o = *ptr;
57  tinyxml2::XMLDocument doc;
58  // root element name is class name.
59  tinyxml2::XMLElement* element = doc.NewElement(get_tag_name());
60  if (!element) {
61  o << "Out-of-memory during Externalizable::save_to_stream()";
62  return;
63  }
64  doc.InsertFirstChild(element);
65  ErrorStack error_stack = save(element);
66  if (error_stack.is_error()) {
67  o << "Failed during Externalizable::save_to_stream(): " << error_stack;
68  return;
69  }
70  tinyxml2::XMLPrinter printer;
71  doc.Print(&printer);
72  o << printer.CStr();
73 }
foedus::externalize::Externalizable::get_tag_name
virtual const char * get_tag_name() const =0
Returns an XML tag name for this object as a root element.
foedus::externalize::Externalizable::save
virtual ErrorStack save(tinyxml2::XMLElement *element) const =0
Writes the content of this object to the given XML element.

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this struct was generated from the following files:
