foedus::storage::StorageManager Class Reference

Storage Manager class that provides API to create/open/close/drop key-value stores. More...

Detailed Description

Storage Manager class that provides API to create/open/close/drop key-value stores.

Definition at line 46 of file storage_manager.hpp.

#include <storage_manager.hpp>

Inheritance diagram for foedus::storage::StorageManager:

Collaboration diagram for foedus::storage::StorageManager:

Public Member Functions
	StorageManager (Engine *engine)
	~StorageManager ()
	StorageManager ()=delete
	StorageManager (const StorageManager &)=delete
StorageManager &	operator= (const StorageManager &)=delete
Engine *	get_engine () const
ErrorStack	initialize () override
	Acquires resources in this object, usually called right after constructor. More...
bool	is_initialized () const override
	Returns whether the object has been already initialized or not. More...
ErrorStack	uninitialize () override
	An idempotent method to release all resources of this object, if any. More...
ErrorStack	reinitialize_for_recovered_snapshot ()
	Special method called only from recovery manager. More...
StorageId	issue_next_storage_id ()
	Issue a unique and atomically/monotonically increasing storage ID for a new storage. More...
StorageId	get_largest_storage_id ()
	Returns the largest StorageId that does or did exist. More...
const StorageName &	get_name (StorageId id)
	Returns the name of the given storage ID. More...
StorageControlBlock *	get_storage (StorageId id)
	Returns the storage of given ID. More...
array::ArrayStorage	get_array (StorageId id)
	Returns the array storage of given ID. More...
hash::HashStorage	get_hash (StorageId id)
	Returns the hash storage of given ID. More...
sequential::SequentialStorage	get_sequential (StorageId id)
	Returns the sequential storage of given ID. More...
masstree::MasstreeStorage	get_masstree (StorageId id)
	Returns the masstree storage of given ID. More...
StorageControlBlock *	get_storage (const StorageName &name)
	Returns the storage of given name. More...
array::ArrayStorage	get_array (const StorageName &name)
	Returns the array storage of given name. More...
hash::HashStorage	get_hash (const StorageName &name)
	Returns the hash storage of given name. More...
sequential::SequentialStorage	get_sequential (const StorageName &name)
	Returns the sequential storage of given name. More...
masstree::MasstreeStorage	get_masstree (const StorageName &name)
	Returns the masstree storage of given name. More...
ErrorStack	drop_storage (StorageId id, Epoch *commit_epoch)
	Removes the storage object. More...
void	drop_storage_apply (StorageId id)
	This is called while restart to apply DROP STORAGE logs. More...
ErrorStack	create_storage (Metadata *metadata, Epoch *commit_epoch)
	Newly creates a storage with the specified metadata and registers it to this manager. More...
void	create_storage_apply (const Metadata &metadata)
	This is called while restart to apply CREATE STORAGE logs. More...
ErrorStack	create_array (array::ArrayMetadata *metadata, array::ArrayStorage *storage, Epoch *commit_epoch)
	Just a type-wrapper of create_storage() for array storages. More...
ErrorStack	create_hash (hash::HashMetadata *metadata, hash::HashStorage *storage, Epoch *commit_epoch)
	Just a type-wrapper of create_storage() for hash storages. More...
ErrorStack	create_sequential (sequential::SequentialMetadata *metadata, sequential::SequentialStorage *storage, Epoch *commit_epoch)
	Just a type-wrapper of create_storage() for sequential storages. More...
ErrorStack	create_masstree (masstree::MasstreeMetadata *metadata, masstree::MasstreeStorage *storage, Epoch *commit_epoch)
	Just a type-wrapper of create_storage() for masstree storages. More...
ErrorStack	clone_all_storage_metadata (snapshot::SnapshotMetadata *metadata)
	This method is called during snapshotting to clone metadata of all existing storages to the given object. More...
xct::TrackMovedRecordResult	track_moved_record (StorageId storage_id, xct::RwLockableXctId *old_address, xct::WriteXctAccess *write_set)
	Resolves a "moved" record. More...
StorageManagerPimpl *	get_pimpl ()
	Returns pimpl object. More...
Public Member Functions inherited from foedus::Initializable
virtual	~Initializable ()

Constructor & Destructor Documentation

foedus::storage::StorageManager::StorageManager ( Engine *  engine )

explicit

Definition at line 34 of file storage_manager.cpp.

                                             : pimpl_(nullptr) {
  pimpl_ = new StorageManagerPimpl(engine);
}

foedus::storage::StorageManager::~StorageManager

(

)

Definition at line 37 of file storage_manager.cpp.

                                {
  delete pimpl_;
  pimpl_ = nullptr;
}

foedus::storage::StorageManager::StorageManager ( )

delete

foedus::storage::StorageManager::StorageManager ( const StorageManager &  )

delete

Member Function Documentation

ErrorStack foedus::storage::StorageManager::clone_all_storage_metadata

(

snapshot::SnapshotMetadata *

metadata

)

This method is called during snapshotting to clone metadata of all existing storages to the given object.

Definition at line 119 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::clone_all_storage_metadata().

Referenced by foedus::snapshot::SnapshotManagerPimpl::snapshot_metadata().

                                                                                        {
  return pimpl_->clone_all_storage_metadata(metadata);
}

Here is the call graph for this function:

Here is the caller graph for this function:

ErrorStack foedus::storage::StorageManager::create_array	(	array::ArrayMetadata *	metadata,
		array::ArrayStorage *	storage,
		Epoch *	commit_epoch
	)

Just a type-wrapper of create_storage() for array storages.

See also

create_storage()

Definition at line 83 of file storage_manager.cpp.

References CHECK_ERROR, create_storage(), get_array(), foedus::storage::Metadata::id_, and foedus::kRetOk.

                       {
  CHECK_ERROR(create_storage(metadata, commit_epoch));
  *storage = get_array(metadata->id_);
  return kRetOk;
}

Here is the call graph for this function:

ErrorStack foedus::storage::StorageManager::create_hash	(	hash::HashMetadata *	metadata,
		hash::HashStorage *	storage,
		Epoch *	commit_epoch
	)

Just a type-wrapper of create_storage() for hash storages.

See also

create_storage()

Definition at line 92 of file storage_manager.cpp.

References CHECK_ERROR, create_storage(), get_hash(), foedus::storage::Metadata::id_, and foedus::kRetOk.

                       {
  CHECK_ERROR(create_storage(metadata, commit_epoch));
  *storage = get_hash(metadata->id_);
  return kRetOk;
}

Here is the call graph for this function:

ErrorStack foedus::storage::StorageManager::create_masstree	(	masstree::MasstreeMetadata *	metadata,
		masstree::MasstreeStorage *	storage,
		Epoch *	commit_epoch
	)

Just a type-wrapper of create_storage() for masstree storages.

See also

create_storage()

Definition at line 110 of file storage_manager.cpp.

References CHECK_ERROR, create_storage(), get_masstree(), foedus::storage::Metadata::id_, and foedus::kRetOk.

                       {
  CHECK_ERROR(create_storage(metadata, commit_epoch));
  *storage = get_masstree(metadata->id_);
  return kRetOk;
}

Here is the call graph for this function:

ErrorStack foedus::storage::StorageManager::create_sequential	(	sequential::SequentialMetadata *	metadata,
		sequential::SequentialStorage *	storage,
		Epoch *	commit_epoch
	)

Just a type-wrapper of create_storage() for sequential storages.

See also

create_storage()

Definition at line 101 of file storage_manager.cpp.

References CHECK_ERROR, create_storage(), get_sequential(), foedus::storage::Metadata::id_, and foedus::kRetOk.

                       {
  CHECK_ERROR(create_storage(metadata, commit_epoch));
  *storage = get_sequential(metadata->id_);
  return kRetOk;
}

Here is the call graph for this function:

ErrorStack foedus::storage::StorageManager::create_storage	(	Metadata *	metadata,
		Epoch *	commit_epoch
	)

Newly creates a storage with the specified metadata and registers it to this manager.

Parameters

[in,out]	metadata	Specifies metadata of the newly created storage, such as name. The metadata object must be an instance of derived metadata such as ArrayMetadata. This method, when succeeded, changes only one property of the given metadata; id_.
[out]	commit_epoch	The epoch at whose end the storage is really deemed as created.

Definition at line 76 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::create_storage().

Referenced by create_array(), create_hash(), create_masstree(), and create_sequential().

                                                                                 {
  return pimpl_->create_storage(metadata, commit_epoch);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void foedus::storage::StorageManager::create_storage_apply

(

const Metadata &

metadata

)

This is called while restart to apply CREATE STORAGE logs.

Definition at line 79 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::create_storage_apply().

Referenced by foedus::storage::CreateLogType::apply_storage().

                                                                  {
  pimpl_->create_storage_apply(metadata);
}

Here is the call graph for this function:

Here is the caller graph for this function:

ErrorStack foedus::storage::StorageManager::drop_storage	(	StorageId	id,
		Epoch *	commit_epoch
	)

Removes the storage object.

Parameters

[in]	id	ID of the storage to remove
[out]	commit_epoch	The epoch at whose end the storage is really deemed as deleted.

This method is idempotent, although it logs warning for non-existing id.

Definition at line 69 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::drop_storage().

                                                                         {
  return pimpl_->drop_storage(id, commit_epoch);
}

Here is the call graph for this function:

void foedus::storage::StorageManager::drop_storage_apply

(

StorageId

id

)

This is called while restart to apply DROP STORAGE logs.

Definition at line 72 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::drop_storage_apply().

Referenced by foedus::storage::DropLogType::apply_storage(), and foedus::restart::RestartManagerPimpl::redo_meta_logs().

                                                    {
  pimpl_->drop_storage_apply(id);
}

Here is the call graph for this function:

Here is the caller graph for this function:

array::ArrayStorage foedus::storage::StorageManager::get_array ( StorageId  id )

inline

Returns the array storage of given ID.

Parameters

[in]

id

Storage ID

Returns

Array Storage. If there is no storage with the ID, an empty object.

Definition at line 94 of file storage_manager.hpp.

References get_engine(), and get_storage().

Referenced by create_array().

                                            {
    return array::ArrayStorage(get_engine(), get_storage(id));
  }

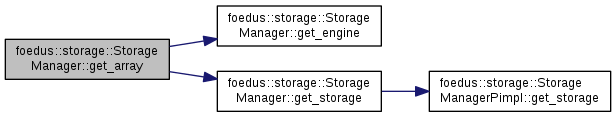

Here is the call graph for this function:

Here is the caller graph for this function:

array::ArrayStorage foedus::storage::StorageManager::get_array ( const StorageName &  name )

inline

Returns the array storage of given name.

Parameters

[in]

name

Storage name

Returns

Array Storage. If there is no storage with the name, an empty object.

Definition at line 140 of file storage_manager.hpp.

References get_engine(), and get_storage().

                                                       {
    return array::ArrayStorage(get_engine(), get_storage(name));
  }

Here is the call graph for this function:

Engine * foedus::storage::StorageManager::get_engine

(

)

const

Definition at line 42 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::engine_.

Referenced by get_array(), get_hash(), get_masstree(), and get_sequential().

{ return pimpl_->engine_; }

Here is the caller graph for this function:

hash::HashStorage foedus::storage::StorageManager::get_hash ( StorageId  id )

inline

Returns the hash storage of given ID.

Parameters

[in]

id

Storage ID

Returns

Hash Storage. If there is no storage with the ID, an empty object.

Definition at line 103 of file storage_manager.hpp.

References get_engine(), and get_storage().

Referenced by create_hash().

                                         {
    return hash::HashStorage(get_engine(), get_storage(id));
  }

Here is the call graph for this function:

Here is the caller graph for this function:

hash::HashStorage foedus::storage::StorageManager::get_hash ( const StorageName &  name )

inline

Returns the hash storage of given name.

Parameters

[in]

name

Storage name

Returns

Hash Storage. If there is no storage with the name, an empty object.

Definition at line 149 of file storage_manager.hpp.

References get_engine(), and get_storage().

                                                    {
    return hash::HashStorage(get_engine(), get_storage(name));
  }

Here is the call graph for this function:

StorageId foedus::storage::StorageManager::get_largest_storage_id

(

)

Returns the largest StorageId that does or did exist.

Definition at line 55 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::control_block_, and foedus::storage::StorageManagerControlBlock::largest_storage_id_.

Referenced by foedus::snapshot::SnapshotManagerPimpl::handle_snapshot_triggered().

                                                 {
  return pimpl_->control_block_->largest_storage_id_;
}

Here is the caller graph for this function:

masstree::MasstreeStorage foedus::storage::StorageManager::get_masstree ( StorageId  id )

inline

Returns the masstree storage of given ID.

Parameters

[in]

id

Storage ID

Returns

Masstree Storage. If there is no storage with the ID, an empty object.

Definition at line 121 of file storage_manager.hpp.

References get_engine(), and get_storage().

Referenced by create_masstree().

                                                     {
    return masstree::MasstreeStorage(get_engine(), get_storage(id));
  }

Here is the call graph for this function:

Here is the caller graph for this function:

masstree::MasstreeStorage foedus::storage::StorageManager::get_masstree ( const StorageName &  name )

inline

Returns the masstree storage of given name.

Parameters

[in]

name

Storage name

Returns

Masstree Storage. If there is no storage with the name, an empty object.

Definition at line 167 of file storage_manager.hpp.

References get_engine(), and get_storage().

                                                                {
    return masstree::MasstreeStorage(get_engine(), get_storage(name));
  }

Here is the call graph for this function:

const StorageName & foedus::storage::StorageManager::get_name

(

StorageId

id

)

Returns the name of the given storage ID.

Returns

name of the storage. If the ID doesn't exist, an empty string.

Definition at line 60 of file storage_manager.cpp.

References foedus::storage::StorageControlBlock::exists(), get_storage(), foedus::storage::kEmptyString, foedus::storage::StorageControlBlock::meta_, and foedus::storage::Metadata::name_.

Referenced by foedus::xct::XctManagerPimpl::precommit_xct_apply(), foedus::xct::XctManagerPimpl::precommit_xct_verify_readonly(), and foedus::xct::XctManagerPimpl::precommit_xct_verify_readwrite().

                                                        {
  StorageControlBlock* block = get_storage(id);
  if (block->exists()) {
    return block->meta_.name_;
  } else {
    return kEmptyString;
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

StorageManagerPimpl* foedus::storage::StorageManager::get_pimpl ( )

inline

Returns pimpl object.

Use this only if you know what you are doing.

Definition at line 252 of file storage_manager.hpp.

{ return pimpl_; }

sequential::SequentialStorage foedus::storage::StorageManager::get_sequential ( StorageId  id )

inline

Returns the sequential storage of given ID.

Parameters

[in]

id

Storage ID

Returns

Sequential Storage. If there is no storage with the ID, an empty object.

Definition at line 112 of file storage_manager.hpp.

References get_engine(), and get_storage().

Referenced by foedus::storage::sequential::SequentialAppendLogType::apply_record(), and create_sequential().

                                                           {
    return sequential::SequentialStorage(get_engine(), get_storage(id));
  }

Here is the call graph for this function:

Here is the caller graph for this function:

sequential::SequentialStorage foedus::storage::StorageManager::get_sequential ( const StorageName &  name )

inline

Returns the sequential storage of given name.

Parameters

[in]

name

Storage name

Returns

Sequential Storage. If there is no storage with the name, an empty object.

Definition at line 158 of file storage_manager.hpp.

References get_engine(), and get_storage().

                                                                      {
    return sequential::SequentialStorage(get_engine(), get_storage(name));
  }

Here is the call graph for this function:

StorageControlBlock * foedus::storage::StorageManager::get_storage

(

StorageId

id

)

Returns the storage of given ID.

Parameters

[in]

id

Storage ID

Returns

Control block of the storage in this engine. If there is no storage with the ID, the returned control block is not initialized (though not null).

Definition at line 47 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::get_storage().

Referenced by foedus::snapshot::SnapshotManagerPimpl::drop_volatile_pages_parallel(), get_array(), get_hash(), get_masstree(), get_name(), get_sequential(), foedus::storage::get_storage_control_block(), and foedus::storage::Partitioner::Partitioner().

                                                             {
  return pimpl_->get_storage(id);
}

Here is the call graph for this function:

Here is the caller graph for this function:

StorageControlBlock * foedus::storage::StorageManager::get_storage

(

const StorageName &

name

)

Returns the storage of given name.

This one is convenient, but prefer get_storage(StorageId) for better performance. Or, write your code so that you don't have to invoke this method too often.

Parameters

[in]

name

Storage name

Returns

Control block of the storage in this engine. If there is no storage with the name, the returned control block is not initialized (though not null).

Definition at line 50 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::get_storage().

                                                                        {
  return pimpl_->get_storage(name);
}

Here is the call graph for this function:

ErrorStack foedus::storage::StorageManager::initialize ( )

overridevirtual

Acquires resources in this object, usually called right after constructor.

Precondition

is_initialized() == FALSE

If and only if the return value was not an error, is_initialized() will return TRUE. This method is usually not idempotent, but some implementation can choose to be. In that case, the implementation class should clarify that it's idempotent. This method is responsible for releasing all acquired resources when initialization fails. This method itself is NOT thread-safe. Do not call this in a racy situation.

Implements foedus::Initializable.

Definition at line 43 of file storage_manager.cpp.

References foedus::DefaultInitializable::initialize().

{ return pimpl_->initialize(); }

Here is the call graph for this function:

bool foedus::storage::StorageManager::is_initialized ( ) const

overridevirtual

Returns whether the object has been already initialized or not.

Implements foedus::Initializable.

Definition at line 44 of file storage_manager.cpp.

References foedus::DefaultInitializable::is_initialized().

Referenced by foedus::snapshot::SnapshotManagerPimpl::handle_snapshot_triggered(), foedus::xct::XctManagerPimpl::initialize_once(), and foedus::xct::XctManagerPimpl::uninitialize_once().

{ return pimpl_->is_initialized(); }

Here is the call graph for this function:

Here is the caller graph for this function:

StorageId foedus::storage::StorageManager::issue_next_storage_id

(

)

Issue a unique and atomically/monotonically increasing storage ID for a new storage.

The caller might later fail, so StorageId might have holes.

Definition at line 54 of file storage_manager.cpp.

References foedus::storage::StorageManagerPimpl::issue_next_storage_id().

{ return pimpl_->issue_next_storage_id(); }

Here is the call graph for this function:

StorageManager& foedus::storage::StorageManager::operator= ( const StorageManager &  )

delete

ErrorStack foedus::storage::StorageManager::reinitialize_for_recovered_snapshot

(

)

Special method called only from recovery manager.

Definition at line 154 of file storage_manager_pimpl.cpp.

References foedus::storage::StorageManagerPimpl::reinitialize_for_recovered_snapshot().

Referenced by foedus::restart::RestartManagerPimpl::recover().

                                                               {
  return pimpl_->reinitialize_for_recovered_snapshot();
}

Here is the call graph for this function:

Here is the caller graph for this function:

xct::TrackMovedRecordResult foedus::storage::StorageManager::track_moved_record	(	StorageId	storage_id,
		xct::RwLockableXctId *	old_address,
		xct::WriteXctAccess *	write_set
	)

Resolves a "moved" record.

This is the core of the moved-bit protocol. Receiving a xct_id address that points to a moved record, track the physical record in another page. This method does not take lock, so it is possible that concurrent threads again move the record after this. The only case it fails to track is the record moved to deeper layers. If the write-set is supplied, we use the key information in it to track even in that case.

Definition at line 445 of file storage_manager_pimpl.cpp.

References foedus::storage::StorageManagerPimpl::track_moved_record().

Referenced by foedus::xct::XctManagerPimpl::precommit_xct_verify_track_read().

                                {
  return pimpl_->track_moved_record(storage_id, old_address, write_set);
}

Here is the call graph for this function:

Here is the caller graph for this function:

ErrorStack foedus::storage::StorageManager::uninitialize ( )

overridevirtual

An idempotent method to release all resources of this object, if any.

After this method, is_initialized() will return FALSE. Whether this method encounters an error or not, the implementation should make the best effort to release as many resources as possible. In other words, Do not leak all resources because of one issue. This method itself is NOT thread-safe. Do not call this in a racy situation.

Attention

This method is NOT automatically called from the destructor. This is due to the fundamental limitation in C++. Explicitly call this method as soon as you are done, checking the returned value. You can also use UninitializeGuard to ameliorate the issue, but it's not perfect.

Returns

The error this method encounters, if any. In case there are multiple errors while uninitialization, the implementation should use ErrorStackBatch to produce a batched ErrorStack object.

Implements foedus::Initializable.

Definition at line 45 of file storage_manager.cpp.

References foedus::DefaultInitializable::uninitialize().

{ return pimpl_->uninitialize(); }

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /home/shino/foedus_code/foedus-core/include/foedus/storage/storage_manager.hpp
• /home/shino/foedus_code/foedus-core/src/foedus/storage/storage_manager.cpp
• /home/shino/foedus_code/foedus-core/src/foedus/storage/storage_manager_pimpl.cpp
