foedus::storage::array::ArrayStorage Class Reference

Represents a key-value store based on a dense and regular array. More...

Detailed Description

Represents a key-value store based on a dense and regular array.

Definition at line 47 of file array_storage.hpp.

#include <array_storage.hpp>

Inheritance diagram for foedus::storage::array::ArrayStorage:

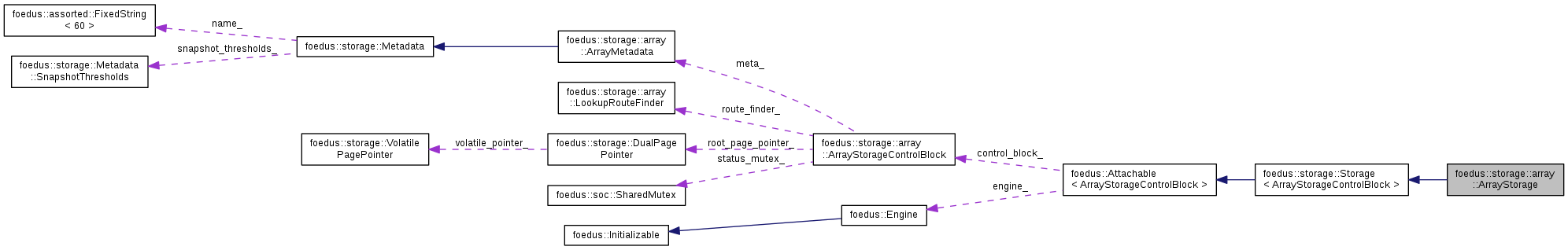

Collaboration diagram for foedus::storage::array::ArrayStorage:

Public Types
typedef ArrayStoragePimpl	ThisPimpl
typedef ArrayCreateLogType	ThisCreateLogType
typedef ArrayMetadata	ThisMetadata

Public Member Functions
	ArrayStorage ()
	ArrayStorage (Engine *engine, ArrayStorageControlBlock *control_block)
	ArrayStorage (Engine *engine, StorageControlBlock *control_block)
	ArrayStorage (Engine *engine, StorageId id)
	ArrayStorage (Engine *engine, const StorageName &name)
	ArrayStorage (const ArrayStorage &other)
ArrayStorage &	operator= (const ArrayStorage &other)
const ArrayMetadata *	get_array_metadata () const
ErrorStack	create (const Metadata &metadata)
ErrorStack	load (const StorageControlBlock &snapshot_block)
ErrorStack	drop ()
ErrorCode	prefetch_pages (thread::Thread *context, bool install_volatile, bool cache_snapshot, ArrayOffset from, ArrayOffset to)
	Prefetch data pages in this storage. More...
uint16_t	get_payload_size () const
	Returns byte size of one record in this array storage without internal overheads. More...
ArrayOffset	get_array_size () const
	Returns the size of this array. More...
uint8_t	get_levels () const
	Returns the number of levels. More...
ErrorCode	get_record (thread::Thread *context, ArrayOffset offset, void *payload)
	Retrieves one record of the given offset in this array storage. More...
ErrorCode	get_record (thread::Thread *context, ArrayOffset offset, void *payload, uint16_t payload_offset, uint16_t payload_count)
	Retrieves a part of record of the given offset in this array storage. More...
template<typename T >
ErrorCode	get_record_primitive (thread::Thread *context, ArrayOffset offset, T *payload, uint16_t payload_offset)
	Retrieves a part of record of the given offset as a primitive type in this array storage. More...
ErrorCode	get_record_payload (thread::Thread *context, ArrayOffset offset, const void **payload)
	Retrieves a pointer to the entire payload. More...
ErrorCode	get_record_for_write (thread::Thread *context, ArrayOffset offset, Record **record)
	Retrieves a pointer to the entire record for write (thus always in volatile page). More...
template<typename T >
ErrorCode	get_record_primitive_batch (thread::Thread *context, uint16_t payload_offset, uint16_t batch_size, const ArrayOffset *offset_batch, T *payload)
	batched interface More...
ErrorCode	get_record_payload_batch (thread::Thread *context, uint16_t batch_size, const ArrayOffset *offset_batch, const void **payload_batch)
ErrorCode	get_record_for_write_batch (thread::Thread *context, uint16_t batch_size, const ArrayOffset *offset_batch, Record **record_batch)
ErrorCode	overwrite_record (thread::Thread *context, ArrayOffset offset, const void *payload)
	Overwrites one record of the given offset in this array storage. More...
ErrorCode	overwrite_record (thread::Thread *context, ArrayOffset offset, const void *payload, uint16_t payload_offset, uint16_t payload_count)
	Overwrites a part of one record of the given offset in this array storage. More...
template<typename T >
ErrorCode	overwrite_record_primitive (thread::Thread *context, ArrayOffset offset, T payload, uint16_t payload_offset)
	Overwrites a part of record of the given offset as a primitive type in this array storage. More...
ErrorCode	overwrite_record (thread::Thread *context, ArrayOffset offset, Record *record, const void *payload, uint16_t payload_offset, uint16_t payload_count)
	Overwrites a part of the pre-searched record in this array storage. More...
template<typename T >
ErrorCode	overwrite_record_primitive (thread::Thread *context, ArrayOffset offset, Record *record, T payload, uint16_t payload_offset)
	Overwrites a part of pre-searched record as a primitive type in this array storage. More...
template<typename T >
ErrorCode	increment_record (thread::Thread *context, ArrayOffset offset, T *value, uint16_t payload_offset)
	This one further optimizes overwrite_record_primitive() for the frequent use case of incrementing some data in primitive type. More...
template<typename T >
ErrorCode	increment_record_oneshot (thread::Thread *context, ArrayOffset offset, T value, uint16_t payload_offset)
	This is a faster increment that does not return the value after increment. More...
ErrorStack	hcc_reset_all_temperature_stat ()
	Resets all volatile pages' temperature stat to be zero in this storage. More...
ErrorStack	verify_single_thread (thread::Thread *context)
Public Member Functions inherited from foedus::storage::Storage< ArrayStorageControlBlock >
	Storage ()
	Storage (Engine *engine, ArrayStorageControlBlock *control_block)
	Storage (Engine *engine, StorageControlBlock *control_block)
	Storage (Engine *engine, StorageId id)
	Shorthand for engine->get_storage_manager()->get_storage(id) More...
	Storage (Engine *engine, const StorageName &name)
	Shorthand for engine->get_storage_manager()->get_storage(name) More...
	Storage (const Storage &other)
Storage &	operator= (const Storage &other)
StorageId	get_id () const
	Returns the unique ID of this storage. More...
StorageType	get_type () const
	Returns the type of this storage. More...
const StorageName &	get_name () const
	Returns the unique name of this storage. More...
const Metadata *	get_metadata () const
	Returns the metadata of this storage. More...
bool	exists () const
	Returns whether this storage is already created. More...
Public Member Functions inherited from foedus::Attachable< ArrayStorageControlBlock >
	Attachable ()
	Attachable (Engine *engine)
	Attachable (Engine *engine, ArrayStorageControlBlock *control_block)
	Attachable (ArrayStorageControlBlock *control_block)
	Attachable (const Attachable &other)
virtual	~Attachable ()
Attachable &	operator= (const Attachable &other)
virtual void	attach (ArrayStorageControlBlock *control_block)
	Attaches to the given shared memory. More...
bool	is_attached () const
	Returns whether the object has been already attached to some shared memory. More...
ArrayStorageControlBlock *	get_control_block () const
Engine *	get_engine () const
void	set_engine (Engine *engine)

Friends
std::ostream &	operator<< (std::ostream &o, const ArrayStorage &v)

Additional Inherited Members
Protected Attributes inherited from foedus::Attachable< ArrayStorageControlBlock >
Engine *	engine_
	Most attachable object stores an engine pointer (local engine), so we define it here. More...
ArrayStorageControlBlock *	control_block_
	The shared data on shared memory that has been initialized in some SOC or master engine. More...

Member Typedef Documentation

typedef ArrayCreateLogType foedus::storage::array::ArrayStorage::ThisCreateLogType

Definition at line 50 of file array_storage.hpp.

typedef ArrayMetadata foedus::storage::array::ArrayStorage::ThisMetadata

Definition at line 51 of file array_storage.hpp.

typedef ArrayStoragePimpl foedus::storage::array::ArrayStorage::ThisPimpl

Definition at line 49 of file array_storage.hpp.

Constructor & Destructor Documentation

foedus::storage::array::ArrayStorage::ArrayStorage

(

)

Definition at line 31 of file array_storage.cpp.

: Storage<ArrayStorageControlBlock>() {}

foedus::storage::array::ArrayStorage::ArrayStorage	(	Engine *	engine,
		ArrayStorageControlBlock *	control_block
	)

Definition at line 32 of file array_storage.cpp.

References ASSERT_ND, foedus::storage::Storage< ArrayStorageControlBlock >::exists(), foedus::storage::Storage< ArrayStorageControlBlock >::get_type(), and foedus::storage::kArrayStorage.

  : Storage<ArrayStorageControlBlock>(engine, control_block) {
  ASSERT_ND(get_type() == kArrayStorage || !exists());
}

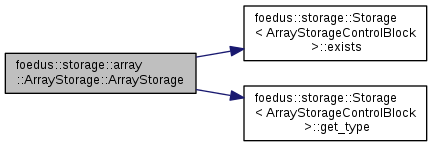

Here is the call graph for this function:

foedus::storage::array::ArrayStorage::ArrayStorage	(	Engine *	engine,
		StorageControlBlock *	control_block
	)

Definition at line 36 of file array_storage.cpp.

References ASSERT_ND, foedus::storage::Storage< ArrayStorageControlBlock >::exists(), foedus::storage::Storage< ArrayStorageControlBlock >::get_type(), and foedus::storage::kArrayStorage.

  : Storage<ArrayStorageControlBlock>(engine, control_block) {
  ASSERT_ND(get_type() == kArrayStorage || !exists());
}

Here is the call graph for this function:

foedus::storage::array::ArrayStorage::ArrayStorage	(	Engine *	engine,
		StorageId	id
	)

Definition at line 40 of file array_storage.cpp.

  : Storage<ArrayStorageControlBlock>(engine, id) {}

foedus::storage::array::ArrayStorage::ArrayStorage	(	Engine *	engine,
		const StorageName &	name
	)

Definition at line 42 of file array_storage.cpp.

  : Storage<ArrayStorageControlBlock>(engine, name) {}

foedus::storage::array::ArrayStorage::ArrayStorage

(

const ArrayStorage &

other

)

Definition at line 44 of file array_storage.cpp.

  : Storage<ArrayStorageControlBlock>(other.engine_, other.control_block_) {
}

Member Function Documentation

ErrorStack foedus::storage::array::ArrayStorage::create

(

const Metadata &

metadata

)

Definition at line 52 of file array_storage.cpp.

References foedus::storage::array::ArrayStoragePimpl::create().

                                                        {
  return ArrayStoragePimpl(this).create(metadata);
}

Here is the call graph for this function:

ErrorStack foedus::storage::array::ArrayStorage::drop

(

)

Definition at line 227 of file array_storage_pimpl.cpp.

References foedus::Attachable< ArrayStorageControlBlock >::control_block_, foedus::Attachable< ArrayStorageControlBlock >::engine_, foedus::memory::EngineMemory::get_global_volatile_page_resolver(), foedus::Engine::get_memory_manager(), foedus::kRetOk, foedus::memory::PageReleaseBatch::release_all(), and foedus::storage::array::ArrayStoragePimpl::release_pages_recursive().

                              {
  LOG(INFO) << "Uninitializing an array-storage " << *this;
  if (!control_block_->root_page_pointer_.volatile_pointer_.is_null()) {
    memory::PageReleaseBatch release_batch(engine_);
    ArrayStoragePimpl::release_pages_recursive(
      engine_->get_memory_manager()->get_global_volatile_page_resolver(),
      &release_batch,
      control_block_->root_page_pointer_.volatile_pointer_);
    release_batch.release_all();
    control_block_->root_page_pointer_.volatile_pointer_.word = 0;
  }
  return kRetOk;
}

Here is the call graph for this function:

const ArrayMetadata * foedus::storage::array::ArrayStorage::get_array_metadata

(

)

const

Definition at line 59 of file array_storage_pimpl.cpp.

References foedus::Attachable< ArrayStorageControlBlock >::control_block_.

Referenced by foedus::storage::array::ArrayComposer::drop_root_volatile(), and foedus::storage::array::ArrayComposer::drop_volatiles().

{ return &control_block_->meta_; }

Here is the caller graph for this function:

ArrayOffset foedus::storage::array::ArrayStorage::get_array_size

(

)

const

Returns the size of this array.

Definition at line 57 of file array_storage_pimpl.cpp.

References foedus::Attachable< ArrayStorageControlBlock >::control_block_.

Referenced by foedus::storage::array::array_volatile_page_init(), foedus::storage::array::ArrayComposeContext::ArrayComposeContext(), foedus::storage::array::ArrayComposer::construct_root(), foedus::storage::array::ArrayPartitioner::design_partition(), foedus::storage::array::ArrayComposer::drop_root_volatile(), foedus::storage::array::operator<<(), and prefetch_pages().

{ return control_block_->meta_.array_size_; }

Here is the caller graph for this function:

uint8_t foedus::storage::array::ArrayStorage::get_levels

(

)

const

Returns the number of levels.

Definition at line 58 of file array_storage_pimpl.cpp.

References foedus::Attachable< ArrayStorageControlBlock >::control_block_.

Referenced by foedus::storage::array::ArrayComposer::construct_root(), foedus::storage::array::ArrayPartitioner::design_partition(), and foedus::storage::array::ArrayComposer::drop_root_volatile().

{ return control_block_->levels_; }

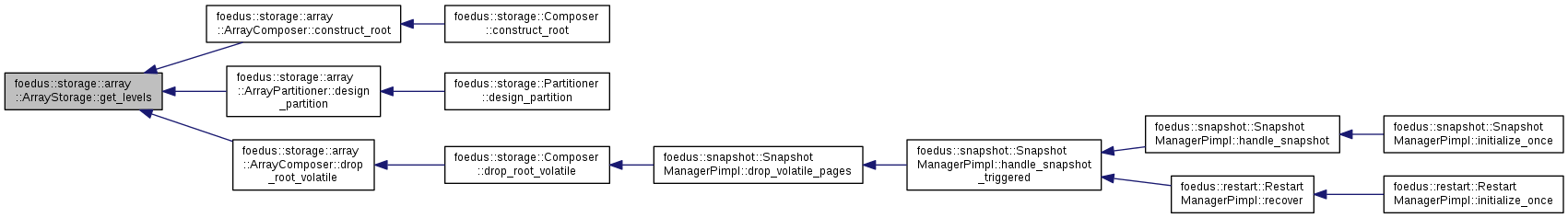

Here is the caller graph for this function:

uint16_t foedus::storage::array::ArrayStorage::get_payload_size

(

)

const

Returns byte size of one record in this array storage without internal overheads.

ArrayStorage is a fix-sized storage, thus we have this interface in storage level rather than in record level.

Definition at line 56 of file array_storage_pimpl.cpp.

References foedus::Attachable< ArrayStorageControlBlock >::control_block_.

Referenced by foedus::storage::array::array_volatile_page_init(), foedus::storage::array::ArrayComposer::construct_root(), foedus::storage::array::ArrayComposer::drop_root_volatile(), get_record(), foedus::storage::array::operator<<(), and overwrite_record().

{ return control_block_->meta_.payload_size_; }

Here is the caller graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::get_record	(	thread::Thread *	context,
		ArrayOffset	offset,
		void *	payload
	)

Retrieves one record of the given offset in this array storage.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[out]	payload	We copy the record to this address. Must be at least get_payload_size().

Precondition

offset < get_array_size()

Equivalent to get_record(context, offset, payload, 0, get_payload_size()).

Definition at line 65 of file array_storage_pimpl.cpp.

References get_payload_size().

                                                            {
  return get_record(context, offset, payload, 0, get_payload_size());
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::get_record	(	thread::Thread *	context,
		ArrayOffset	offset,
		void *	payload,
		uint16_t	payload_offset,
		uint16_t	payload_count
	)

Retrieves a part of record of the given offset in this array storage.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[out]	payload	We copy the record to this address. Must be at least payload_count.
[in]	payload_offset	We copy from this byte position of the record.
[in]	payload_count	How many bytes we copy.

Precondition

payload_offset + payload_count <= get_payload_size()

offset < get_array_size()

Definition at line 70 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::get_record().

                                                                          {
  return ArrayStoragePimpl(this).get_record(
    context, offset, payload, payload_offset, payload_count);
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::get_record_for_write	(	thread::Thread *	context,
		ArrayOffset	offset,
		Record **	record
	)

Retrieves a pointer to the entire record for write (thus always in volatile page).

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[out]	record	Sets the pointer to the record in a volatile page.

Precondition

offset < get_array_size()

This is used to retrieve entire record without copying and also to prepare for writes. Though "record" is a non-const pointer, of course don't directly write to it. Use overwrite_xxx etc which does the pre-commit protocol to write. This also adds to read-set.

Definition at line 89 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::get_record_for_write().

                   {
  return ArrayStoragePimpl(this).get_record_for_write(context, offset, record);
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::get_record_for_write_batch	(	thread::Thread *	context,
		uint16_t	batch_size,
		const ArrayOffset *	offset_batch,
		Record **	record_batch
	)

Definition at line 655 of file array_storage_pimpl.cpp.

References CHECK_ERROR_CODE, foedus::storage::array::ArrayStoragePimpl::get_record_for_write_batch(), foedus::storage::array::ArrayStoragePimpl::kBatchMax, and foedus::kErrorCodeOk.

                         {
  ArrayStoragePimpl pimpl(this);
  for (uint16_t cur = 0; cur < batch_size;) {
    uint16_t chunk = batch_size - cur;
    if (chunk > ArrayStoragePimpl::kBatchMax) {
      chunk = ArrayStoragePimpl::kBatchMax;
    }
    CHECK_ERROR_CODE(pimpl.get_record_for_write_batch(
      context,
      chunk,
      &offset_batch[cur],
      &record_batch[cur]));
    cur += chunk;
  }
  return kErrorCodeOk;
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::get_record_payload	(	thread::Thread *	context,
		ArrayOffset	offset,
		const void **	payload
	)

Retrieves a pointer to the entire payload.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[out]	payload	Sets the pointer to the payload.

Precondition

offset < get_array_size()

This is used to retrieve entire record without copying. The record is protected by read-set (if there is any change, it will abort at pre-commit). However, we might read a half-changed value in the meantime.

Definition at line 82 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::get_record_payload().

                        {
  return ArrayStoragePimpl(this).get_record_payload(context, offset, payload);
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::get_record_payload_batch	(	thread::Thread *	context,
		uint16_t	batch_size,
		const ArrayOffset *	offset_batch,
		const void **	payload_batch
	)

Definition at line 634 of file array_storage_pimpl.cpp.

References CHECK_ERROR_CODE, foedus::storage::array::ArrayStoragePimpl::get_record_payload_batch(), foedus::storage::array::ArrayStoragePimpl::kBatchMax, and foedus::kErrorCodeOk.

                              {
  ArrayStoragePimpl pimpl(this);
  for (uint16_t cur = 0; cur < batch_size;) {
    uint16_t chunk = batch_size - cur;
    if (chunk > ArrayStoragePimpl::kBatchMax) {
      chunk = ArrayStoragePimpl::kBatchMax;
    }
    CHECK_ERROR_CODE(pimpl.get_record_payload_batch(
      context,
      chunk,
      &offset_batch[cur],
      &payload_batch[cur]));
    cur += chunk;
  }
  return kErrorCodeOk;
}

Here is the call graph for this function:

template<typename T >

ErrorCode foedus::storage::array::ArrayStorage::get_record_primitive	(	thread::Thread *	context,
		ArrayOffset	offset,
		T *	payload,
		uint16_t	payload_offset
	)

Retrieves a part of record of the given offset as a primitive type in this array storage.

A bit more efficient than get_record().

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[out]	payload	We copy the record to this address.
[in]	payload_offset	We copy from this byte position of the record.

Template Parameters

T	primitive type. All integers and floats are allowed.

Precondition

payload_offset + sizeof(T) <= get_payload_size()

offset < get_array_size()

Definition at line 77 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::get_record_primitive().

                                               {
  return ArrayStoragePimpl(this).get_record_primitive<T>(context, offset, payload, payload_offset);
}

Here is the call graph for this function:

template<typename T >

ErrorCode foedus::storage::array::ArrayStorage::get_record_primitive_batch	(	thread::Thread *	context,
		uint16_t	payload_offset,
		uint16_t	batch_size,
		const ArrayOffset *	offset_batch,
		T *	payload
	)

batched interface

Definition at line 611 of file array_storage_pimpl.cpp.

References CHECK_ERROR_CODE, foedus::storage::array::ArrayStoragePimpl::get_record_primitive_batch(), foedus::storage::array::ArrayStoragePimpl::kBatchMax, and foedus::kErrorCodeOk.

                    {
  ArrayStoragePimpl pimpl(this);
  for (uint16_t cur = 0; cur < batch_size;) {
    uint16_t chunk = batch_size - cur;
    if (chunk > ArrayStoragePimpl::kBatchMax) {
      chunk = ArrayStoragePimpl::kBatchMax;
    }
    CHECK_ERROR_CODE(pimpl.get_record_primitive_batch(
      context,
      payload_offset,
      chunk,
      &offset_batch[cur],
      &payload_batch[cur]));
    cur += chunk;
  }
  return kErrorCodeOk;
}

Here is the call graph for this function:

ErrorStack foedus::storage::array::ArrayStorage::hcc_reset_all_temperature_stat

(

)

Resets all volatile pages' temperature stat to be zero in this storage.

Used only in HCC-branch.

Definition at line 964 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::hcc_reset_all_temperature_stat().

                                                        {
  ArrayStoragePimpl pimpl(this);
  return pimpl.hcc_reset_all_temperature_stat();
}

Here is the call graph for this function:

template<typename T >

ErrorCode foedus::storage::array::ArrayStorage::increment_record	(	thread::Thread *	context,
		ArrayOffset	offset,
		T *	value,
		uint16_t	payload_offset
	)

This one further optimizes overwrite_record_primitive() for the frequent use case of incrementing some data in primitive type.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[in,out]	value	(in) addendum, (out) value after addition.
[in]	payload_offset	We write to this byte position of the record.

Template Parameters

T	primitive type. All integers and floats are allowed.

Precondition

payload_offset + sizeof(T) <= get_payload_size()

offset < get_array_size()

This method combines get and overwrite, so it can halve the number of tree lookup. This method can be only provided with template, so we omit "_primitive".

Definition at line 148 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::increment_record().

                                             {
  return ArrayStoragePimpl(this).increment_record<T>(context, offset, value, payload_offset);
}

Here is the call graph for this function:

template<typename T >

ErrorCode foedus::storage::array::ArrayStorage::increment_record_oneshot	(	thread::Thread *	context,
		ArrayOffset	offset,
		T	value,
		uint16_t	payload_offset
	)

This is a faster increment that does not return the value after increment.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[in]	value	addendum
[in]	payload_offset	We write to this byte position of the record.

Template Parameters

T	primitive type. All integers and floats are allowed.

Precondition

payload_offset + sizeof(T) <= get_payload_size()

offset < get_array_size()

This method is faster than increment_record because it doesn't rely on the current value. This uses a rare "write-set only" log. other increments have to check deletion bit at least.

Definition at line 154 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::increment_record_oneshot().

                           {
  return ArrayStoragePimpl(this).increment_record_oneshot<T>(
    context,
    offset,
    value,
    payload_offset);
}

Here is the call graph for this function:

ErrorStack foedus::storage::array::ArrayStorage::load

(

const StorageControlBlock &

snapshot_block

)

Definition at line 56 of file array_storage.cpp.

References foedus::storage::array::ArrayStoragePimpl::load().

                                                                       {
  return ArrayStoragePimpl(this).load(snapshot_block);
}

Here is the call graph for this function:

ArrayStorage & foedus::storage::array::ArrayStorage::operator=

(

const ArrayStorage &

other

)

Definition at line 47 of file array_storage.cpp.

References foedus::Attachable< ArrayStorageControlBlock >::control_block_, foedus::Attachable< CONTROL_BLOCK >::control_block_, foedus::Attachable< ArrayStorageControlBlock >::engine_, and foedus::Attachable< CONTROL_BLOCK >::engine_.

                                                               {
  engine_ = other.engine_;
  control_block_ = other.control_block_;
  return *this;
}

ErrorCode foedus::storage::array::ArrayStorage::overwrite_record ( thread::Thread *  context, ArrayOffset  offset, const void *  payload  )

inline

Overwrites one record of the given offset in this array storage.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[in]	payload	We copy from this buffer. Must be at least get_payload_size().

Precondition

offset < get_array_size()

Equivalent to overwrite_record(context, offset, payload, 0, get_payload_size()).

Definition at line 198 of file array_storage.hpp.

References get_payload_size().

                                                                                              {
    return overwrite_record(context, offset, payload, 0, get_payload_size());
  }

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::overwrite_record	(	thread::Thread *	context,
		ArrayOffset	offset,
		const void *	payload,
		uint16_t	payload_offset,
		uint16_t	payload_count
	)

Overwrites a part of one record of the given offset in this array storage.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[in]	payload	We copy from this buffer. Must be at least get_payload_size().
[in]	payload_offset	We copy to this byte position of the record.
[in]	payload_count	How many bytes we copy.

Precondition

payload_offset + payload_count <= get_payload_size()

offset < get_array_size()

Definition at line 96 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::overwrite_record().

                                                                            {
  return ArrayStoragePimpl(this).overwrite_record(
    context,
    offset,
    payload,
    payload_offset,
    payload_count);
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::overwrite_record	(	thread::Thread *	context,
		ArrayOffset	offset,
		Record *	record,
		const void *	payload,
		uint16_t	payload_offset,
		uint16_t	payload_count
	)

Overwrites a part of the pre-searched record in this array storage.

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array. Used for logging.
[in]	record	Pointer to the record.
[in]	payload	We copy from this buffer.
[in]	payload_offset	We copy to this byte position of the record.
[in]	payload_count	How many bytes we copy.

Precondition

payload_offset + payload_count <= get_payload_size()

offset < get_array_size()

See also

get_record_for_write()

Definition at line 116 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::overwrite_record().

                          {
  return ArrayStoragePimpl(this).overwrite_record(
    context,
    offset,
    record,
    payload,
    payload_offset,
    payload_count);
}

Here is the call graph for this function:

template<typename T >

ErrorCode foedus::storage::array::ArrayStorage::overwrite_record_primitive	(	thread::Thread *	context,
		ArrayOffset	offset,
		T	payload,
		uint16_t	payload_offset
	)

Overwrites a part of record of the given offset as a primitive type in this array storage.

A bit more efficient than overwrite_record().

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array
[in]	payload	The value as primitive type.
[in]	payload_offset	We copy to this byte position of the record.

Template Parameters

T	primitive type. All integers and floats are allowed.

Precondition

payload_offset + sizeof(T) <= get_payload_size()

offset < get_array_size()

Definition at line 107 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::overwrite_record_primitive().

                                              {
  return ArrayStoragePimpl(this).overwrite_record_primitive<T>(
    context,
    offset,
    payload,
    payload_offset);
}

Here is the call graph for this function:

template<typename T >

ErrorCode foedus::storage::array::ArrayStorage::overwrite_record_primitive	(	thread::Thread *	context,
		ArrayOffset	offset,
		Record *	record,
		T	payload,
		uint16_t	payload_offset
	)

Overwrites a part of pre-searched record as a primitive type in this array storage.

A bit more efficient than overwrite_record().

Parameters

[in]	context	Thread context
[in]	offset	The offset in this array. Used for logging.
[in]	record	Pointer to the record.
[in]	payload	The value as primitive type.
[in]	payload_offset	We copy to this byte position of the record.

Template Parameters

T	primitive type. All integers and floats are allowed.

Precondition

payload_offset + sizeof(T) <= get_payload_size()

offset < get_array_size()

Definition at line 133 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::overwrite_record_primitive().

                           {
  return ArrayStoragePimpl(this).overwrite_record_primitive<T>(
    context,
    offset,
    record,
    payload,
    payload_offset);
}

Here is the call graph for this function:

ErrorCode foedus::storage::array::ArrayStorage::prefetch_pages	(	thread::Thread *	context,
		bool	install_volatile,
		bool	cache_snapshot,
		ArrayOffset	from,
		ArrayOffset	to
	)

Prefetch data pages in this storage.

Parameters

[in]	context	Thread context.
[in]	install_volatile	Whether to install/prefetch volatile pages based on the recent snapshot page if there is none.
[in]	cache_snapshot	Whether to cache/prefetch snapshot pages if exists.
[in]	from	inclusive begin offset of records that are specifically prefetched even in data pages.
[in]	to	exclusive end offset of records that are specifically prefetched even in data pages. 0 means up to the end of the storage.

This is to warmup the storage for the current core. Data pages are prefetched within from/to.

Definition at line 71 of file array_storage.cpp.

References get_array_size(), and foedus::storage::array::ArrayStoragePimpl::prefetch_pages().

                  {
  if (to == 0) {
    to = get_array_size();
  }
  return ArrayStoragePimpl(this).prefetch_pages(
    context,
    install_volatile,
    cache_snapshot,
    from,
    to);
}

Here is the call graph for this function:

ErrorStack foedus::storage::array::ArrayStorage::verify_single_thread

(

thread::Thread *

context

)

Definition at line 61 of file array_storage_pimpl.cpp.

References foedus::storage::array::ArrayStoragePimpl::verify_single_thread().

                                                                   {
  return ArrayStoragePimpl(this).verify_single_thread(context);
}

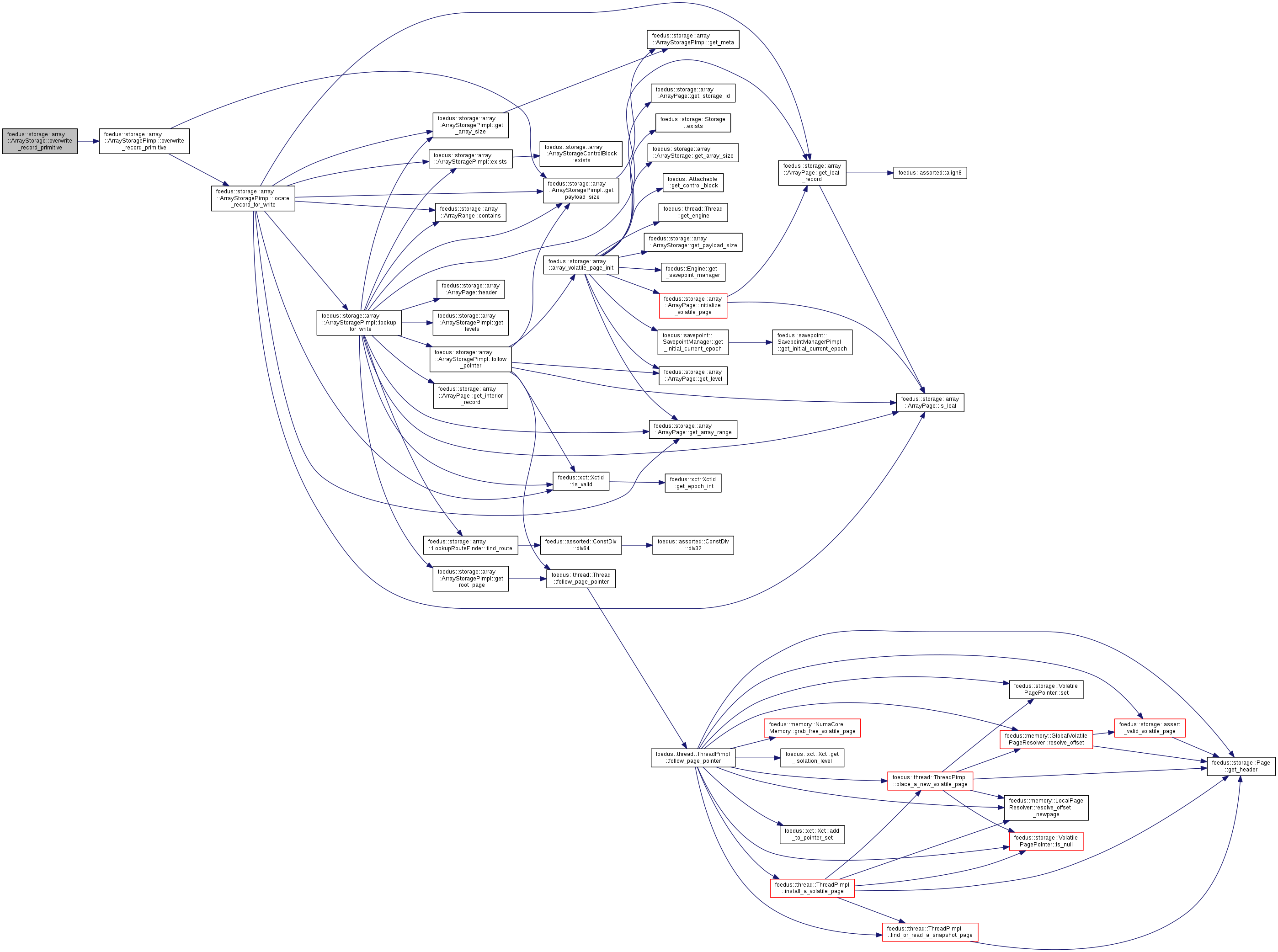

Here is the call graph for this function:

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  o, const ArrayStorage &  v  )

friend

Definition at line 60 of file array_storage.cpp.

                                                             {
  o << "<ArrayStorage>"
    << "<id>" << v.get_id() << "</id>"
    << "<name>" << v.get_name() << "</name>"
    << "<payload_size>" << v.get_payload_size() << "</payload_size>"
    << "<array_size>" << v.get_array_size() << "</array_size>"
    << "</ArrayStorage>";
  return o;
}

---

The documentation for this class was generated from the following files:

• /home/shino/foedus_code/foedus-core/include/foedus/storage/array/array_storage.hpp
• /home/shino/foedus_code/foedus-core/src/foedus/storage/array/array_storage.cpp
• /home/shino/foedus_code/foedus-core/src/foedus/storage/array/array_storage_pimpl.cpp
