foedus::storage::hash::HashCombo Struct Reference
FOEDUS Components » Storage Manager » Hashtable Storage

A set of information that are used in many places, extracted from the given key. More...

Detailed Description

A set of information that are used in many places, extracted from the given key.

These are just "usual" combo, and of course we occasionally need only some of them. In such a place, constructing this object is a waste, so be careful. This is a POD. Also, header-only except ostream.

Why This Does NOT Contain Key Itself
Because a pointer is not a self-contained information. The user has to be careful on the lifetime of pointee, most likely causing bugs. We initially contained key_, but we think it's more harm than good due to the lifetime issue. Thus, the user passes around key/key_length too.

Definition at line 48 of file hash_combo.hpp.

#include <hash_combo.hpp>

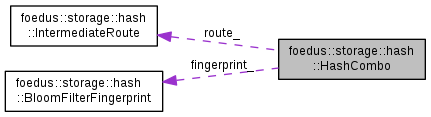

Collaboration diagram for foedus::storage::hash::HashCombo:
Collaboration graph
[legend]

Public Member Functions

 HashCombo (const void *key, uint16_t key_length, const HashMetadata &meta)


Public Attributes

HashValue hash_

HashBin bin_

BloomFilterFingerprint fingerprint_

IntermediateRoute route_


Friends

std::ostream & operator<< (std::ostream &o, const HashCombo &v)


Constructor & Destructor Documentation

foedus::storage::hash::HashCombo::HashCombo ( const void *  key,
uint16_t  key_length,
const HashMetadata &  meta
)

Definition at line 29 of file hash_combo.cpp.

References bin_, foedus::storage::hash::IntermediateRoute::construct(), foedus::storage::hash::DataPageBloomFilter::extract_fingerprint(), fingerprint_, foedus::storage::hash::HashMetadata::get_bin_shifts(), hash_, foedus::storage::hash::hashinate(), and route_.

29  {
30  uint8_t bin_shifts = meta.get_bin_shifts();
31  hash_ = hashinate(key, key_length);
32  bin_ = hash_ >> bin_shifts;
33  fingerprint_ = DataPageBloomFilter::extract_fingerprint(hash_);
34  route_ = IntermediateRoute::construct(bin_);
35 }
foedus::storage::hash::hashinate
HashValue hashinate(const void *key, uint16_t key_length)
Calculates hash value for general input.
Definition: hash_hashinate.cpp:31
foedus::storage::hash::HashCombo::fingerprint_
BloomFilterFingerprint fingerprint_
Definition: hash_combo.hpp:51
foedus::storage::hash::DataPageBloomFilter::extract_fingerprint
static BloomFilterFingerprint extract_fingerprint(HashValue fullhash)
Definition: hash_hashinate.hpp:175
foedus::storage::hash::IntermediateRoute::construct
static IntermediateRoute construct(HashBin bin)
Calculates the rout for the given hash bin.
Definition: hash_hashinate.hpp:233

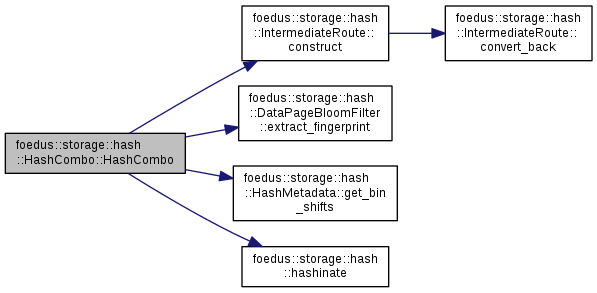

Here is the call graph for this function:

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  o,
const HashCombo &  v
)
friend

Definition at line 37 of file hash_combo.cpp.

37  {
38  o << "<HashCombo>"
39  << "<hash>" << assorted::Hex(v.hash_, 16) << "</hash>"
40  << "<bin>" << v.bin_ << "</bin>"
41  << v.fingerprint_
42  << v.route_
43  << "</HashCombo>";
44  return o;
45 }

Member Data Documentation

HashBin foedus::storage::hash::HashCombo::bin_

Definition at line 50 of file hash_combo.hpp.

Referenced by HashCombo(), foedus::storage::hash::HashStoragePimpl::locate_bin(), foedus::storage::hash::HashStoragePimpl::locate_record(), foedus::storage::hash::HashStoragePimpl::locate_record_in_snapshot(), and foedus::storage::hash::operator<<().

BloomFilterFingerprint foedus::storage::hash::HashCombo::fingerprint_

Definition at line 51 of file hash_combo.hpp.

Referenced by foedus::storage::hash::ReserveRecords::append_record_to_page(), HashCombo(), foedus::storage::hash::HashStoragePimpl::insert_record(), foedus::storage::hash::HashStoragePimpl::locate_record(), foedus::storage::hash::HashStoragePimpl::locate_record_in_snapshot(), foedus::storage::hash::operator<<(), foedus::storage::hash::ReserveRecords::search_within_page(), foedus::storage::hash::HashStoragePimpl::track_moved_record_search(), and foedus::storage::hash::HashStoragePimpl::upsert_record().

HashValue foedus::storage::hash::HashCombo::hash_

Definition at line 49 of file hash_combo.hpp.

Referenced by foedus::storage::hash::ReserveRecords::append_record_to_page(), foedus::storage::hash::HashStoragePimpl::delete_record(), HashCombo(), foedus::storage::hash::HashStoragePimpl::increment_record(), foedus::storage::hash::HashStoragePimpl::insert_record(), foedus::storage::hash::HashStoragePimpl::locate_record(), foedus::storage::hash::HashStoragePimpl::locate_record_in_snapshot(), foedus::storage::hash::operator<<(), foedus::storage::hash::HashStoragePimpl::overwrite_record(), foedus::storage::hash::ReserveRecords::search_within_page(), foedus::storage::hash::HashStoragePimpl::track_moved_record_search(), and foedus::storage::hash::HashStoragePimpl::upsert_record().

IntermediateRoute foedus::storage::hash::HashCombo::route_

Definition at line 52 of file hash_combo.hpp.

Referenced by HashCombo(), foedus::storage::hash::HashStoragePimpl::locate_bin(), and foedus::storage::hash::operator<<().

The documentation for this struct was generated from the following files:
