A log-gleaner, which constructs a new set of snapshot files during snapshotting. More...

Detailed Description

A log-gleaner, which constructs a new set of snapshot files during snapshotting.

Log Gleaner Overview

LogGleaner is the main class that manages most mechanisms to construct a new set of snapshot files. Snapshot procedure constructs and calls this object during snapshot. It receives partitioning policy (which snapshot partitions to send ranges of keys) per storage and beginning/ending epoch of logs to glean while log-gleaning.

Log-gleaning consists of two components; mapper (foedus::snapshot::LogMapper) and reducer (foedus::snapshot::LogReducer), obviously named after the well-known map-reduce concepts.

Mapper

LogGleaner launches a set of mapper threads (foedus::snapshot::LogMapper) to read log files. Each LogMapper corresponds to foedus::log::Logger, the NUMA-local log writer which simply writes out log entries produced by local worker threads. Thus, the log files contain log entries that might be sent to any partitions. LogMapper maps each log entry to some partition and send it to a reducer corresponding to the partition. For more details, see foedus::snapshot::LogMapper.

Reducer

LogGleaner also launches a set of reducer threads (foedus::snapshot::LogReducer), one for each NUMA node. LogReducer sorts log entries sent from LogMapper. The log entries are sorted by key and ordinal (*), then processed just like usual APPLY at the end of transaction, but on top of snapshot files.

(*) otherwise correct result is not guaranteed. For example, imagine the following case:

UPDATE rec-1 to A. Log-ordinal 1.
UPDATE rec-1 to B. Log-ordinal 2.

Ordinal-1 must be processed before ordinal 2.

Synchronization

LogGleaner coordinates the synchronization between mappers and reducers during snapshotting. At the beginning of snapshotting, gleaner wakes up reducers and mappers. Mappers go in to sleep when they process all logs. When all mappers went to sleep, reducers start to also go into sleep when they process all logs they receive. When all of them are done, gleaner initiates the last wrap-up phase. Additionally, LogGleaner is in charge of receiving termination request from the engine if the user invokes Engine::uninitialize() and requesting reducers/mappers to stop.

Reducers/mappers occasionally check if they are requested to stop when they get idle or complete all work. They do the check at least once for a while so that the latency to stop can not be catastrophic.

Constructing Root Pages

After all mappers and reducers complete, the last phase of log gleaning is to construct root pages for the storages modified in this snapshotting. Gleaner collects root-page-info from each reducer and combines them to create the root page(s). When all set, gleaner produces maps from storage ID to a new root page ID. This will be written out in a snapshot metadata file by snapshot manager.

Note: This is a private implementation-details of Snapshot Manager, thus file name ends with _impl. Do not include this header from a client program. There is no case client program needs to access this internal class.

Definition at line 104 of file log_gleaner_impl.hpp.

#include <log_gleaner_impl.hpp>

Inheritance diagram for foedus::snapshot::LogGleaner:

[legend]

Collaboration diagram for foedus::snapshot::LogGleaner:

[legend]

Public Member Functions
	LogGleaner (Engine engine, LogGleanerResource gleaner_resource, const Snapshot &new_snapshot)

	LogGleaner ()=delete

	LogGleaner (const LogGleaner &other)=delete

LogGleaner &	operator= (const LogGleaner &other)=delete

ErrorStack	execute ()
	Main routine of log gleaner. More...

std::string	to_string () const

const std::map< storage::StorageId, storage::SnapshotPagePointer > &	get_new_root_page_pointers () const
	Returns pointers to new root pages constructed at the end of gleaning. More...

Public Member Functions inherited from foedus::snapshot::LogGleanerRef
	LogGleanerRef ()

	LogGleanerRef (Engine *engine)

bool	is_error () const

void	wakeup ()

const Snapshot &	get_cur_snapshot () const

SnapshotId	get_snapshot_id () const

Epoch	get_base_epoch () const

Epoch	get_valid_until_epoch () const

uint16_t	increment_completed_count ()

uint16_t	increment_completed_mapper_count ()

uint16_t	increment_error_count ()

uint16_t	increment_exit_count ()

bool	is_all_exitted () const

bool	is_all_completed () const

bool	is_all_mappers_completed () const

uint16_t	get_mappers_count () const

uint16_t	get_reducers_count () const

uint16_t	get_all_count () const

Public Member Functions inherited from foedus::Attachable< LogGleanerControlBlock >
	Attachable ()

	Attachable (Engine *engine)

	Attachable (Engine engine, LogGleanerControlBlock control_block)

	Attachable (LogGleanerControlBlock *control_block)

	Attachable (const Attachable &other)

virtual	~Attachable ()

Attachable &	operator= (const Attachable &other)

virtual void	attach (LogGleanerControlBlock *control_block)
	Attaches to the given shared memory. More...

bool	is_attached () const
	Returns whether the object has been already attached to some shared memory. More...

LogGleanerControlBlock *	get_control_block () const

Engine *	get_engine () const

void	set_engine (Engine *engine)

Friends
std::ostream &	operator<< (std::ostream &o, const LogGleaner &v)

Additional Inherited Members
Protected Attributes inherited from foedus::snapshot::LogGleanerRef
storage::PartitionerMetadata *	partitioner_metadata_

void *	partitioner_data_

Protected Attributes inherited from foedus::Attachable< LogGleanerControlBlock >
Engine *	engine_
	Most attachable object stores an engine pointer (local engine), so we define it here. More...

LogGleanerControlBlock *	control_block_
	The shared data on shared memory that has been initialized in some SOC or master engine. More...

Constructor & Destructor Documentation

foedus::snapshot::LogGleaner::LogGleaner	(	Engine *	engine,
		LogGleanerResource *	gleaner_resource,
		const Snapshot &	new_snapshot
	)

Definition at line 52 of file log_gleaner_impl.cpp.

   : LogGleanerRef(engine),
     gleaner_resource_(gleaner_resource),
     new_snapshot_(new_snapshot) {
 }

foedus::snapshot::LogGleaner::LogGleaner ( )

delete

foedus::snapshot::LogGleaner::LogGleaner ( const LogGleaner & other )

delete

Member Function Documentation

ErrorStack foedus::snapshot::LogGleaner::execute ( )

Main routine of log gleaner.

Definition at line 148 of file log_gleaner_impl.cpp.

References ASSERT_ND, CHECK_ERROR, foedus::Attachable< LogGleanerControlBlock >::control_block_, foedus::debugging::StopWatch::elapsed_sec(), foedus::Attachable< LogGleanerControlBlock >::engine_, foedus::soc::SharedMemoryRepo::get_global_memory_anchors(), foedus::soc::SocManager::get_shared_memory_repo(), foedus::snapshot::LogGleanerRef::get_snapshot_id(), foedus::Engine::get_soc_manager(), foedus::snapshot::LogGleanerRef::is_all_completed(), foedus::snapshot::LogGleanerRef::is_all_exitted(), foedus::snapshot::LogGleanerRef::is_error(), foedus::kRetOk, SPINLOCK_WHILE, and foedus::debugging::StopWatch::stop().

Referenced by foedus::snapshot::SnapshotManagerPimpl::glean_logs().

                                {
   LOG(INFO) << "Gleaner starts running: snapshot_id=" << get_snapshot_id();
   clear_all();

   LOG(INFO) << "Gleaner Step 1: Design partitions for all storages...";
   debugging::StopWatch watch1;
   // Another approach is to delay this step until some mapper really needs it so that we can
   // skip partition-designing for storages that weren't modified.
   // However, it requires synchronization in mapper/reducer and this step is anyway fast enough.
   // So, we so far simply design partitions for all of them.
   CHECK_ERROR(design_partitions());
   watch1.stop();
   LOG(INFO) << "Gleaner Step 1: Ended in " << watch1.elapsed_sec() << "s";

   LOG(INFO) << "Gleaner Step 2: Run mappers/reducers...";
   debugging::StopWatch watch2;
   // Request each node's snapshot manager to launch mappers/reducers threads
   control_block_->gleaning_ = true;
   engine_->get_soc_manager()->get_shared_memory_repo()->get_global_memory_anchors()->
     snapshot_manager_memory_->wakeup_snapshot_children();

   // then, wait until all mappers/reducers are done
   SPINLOCK_WHILE(!is_error() && !is_all_completed()) {
     // snapshot is an infrequent operation, doesn't have to wake up immediately.
     // just sleep for a while
     std::this_thread::sleep_for(std::chrono::milliseconds(10));
   }

   control_block_->gleaning_ = false;
   watch2.stop();
   LOG(INFO) << "Gleaner Step 2: Ended in " << watch2.elapsed_sec() << "s";

   LOG(INFO) << "Gleaner Step 3: Combine outputs from reducers (root page info)..." << *this;
   debugging::StopWatch watch3;
   if (is_error()) {
     LOG(ERROR) << "Some mapper/reducer got an error. " << *this;
   } else if (!is_all_completed()) {
     LOG(WARNING) << "gleaner stopped without completion. cancelled? " << *this;
   } else {
     LOG(INFO) << "All mappers/reducers successfully done. Now on to the final phase." << *this;
     CHECK_ERROR(construct_root_pages());
   }
   watch3.stop();
   LOG(INFO) << "Gleaner Step 3: Ended in " << watch3.elapsed_sec() << "s";

   LOG(INFO) << "Gleaner Step 4: Uninitializing...";
   CHECK_ERROR(cancel_reducers_mappers());
   ASSERT_ND(is_error() || is_all_exitted());
   LOG(INFO) << "Gleaner ends";
   return kRetOk;
 }

Here is the call graph for this function:

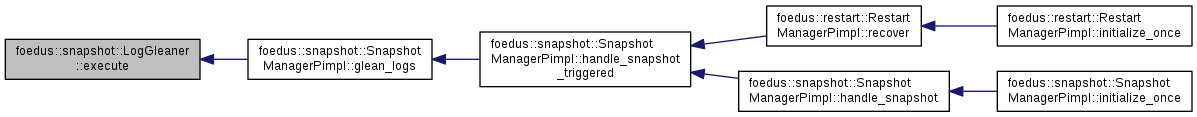

Here is the caller graph for this function:

const std::map<storage::StorageId, storage::SnapshotPagePointer>& foedus::snapshot::LogGleaner::get_new_root_page_pointers ( ) const

inline

Returns pointers to new root pages constructed at the end of gleaning.

Definition at line 119 of file log_gleaner_impl.hpp.

Referenced by foedus::snapshot::SnapshotManagerPimpl::glean_logs().

           {
     return new_root_page_pointers_;
   }

Here is the caller graph for this function:

LogGleaner& foedus::snapshot::LogGleaner::operator= ( const LogGleaner & other )

delete

std::string foedus::snapshot::LogGleaner::to_string ( ) const

Definition at line 307 of file log_gleaner_impl.cpp.

                                       {
   std::stringstream stream;
   stream << *this;
   return stream.str();
 }

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	o,
		const LogGleaner &	v
	)

friend

Definition at line 312 of file log_gleaner_impl.cpp.

                                                            {
   o << "<LogGleaner>"
     << v.new_snapshot_
     << "<completed_count_>" << v.control_block_->completed_count_ << "</completed_count_>"
     << "<completed_mapper_count_>"
       << v.control_block_->completed_mapper_count_ << "</completed_mapper_count_>"
     << "<error_count_>" << v.control_block_->error_count_ << "</error_count_>"
     << "<exit_count_>" << v.control_block_->exit_count_ << "</exit_count_>";
   o << "</LogGleaner>";
   return o;
 }

The documentation for this class was generated from the following files:

/home/shino/foedus_code/foedus-core/include/foedus/snapshot/log_gleaner_impl.hpp
/home/shino/foedus_code/foedus-core/src/foedus/snapshot/log_gleaner_impl.cpp
