Fix-sized slot for each record, which is placed at the end of data region. More...

Detailed Description

Fix-sized slot for each record, which is placed at the end of data region.

Each slot takes 32-bytes, which are not small but not bad either to reduce cache-line contentios on TIDs. Every slot is also aligned to 32-bytes.

Definition at line 500 of file masstree_page_impl.hpp.

#include <masstree_page_impl.hpp>

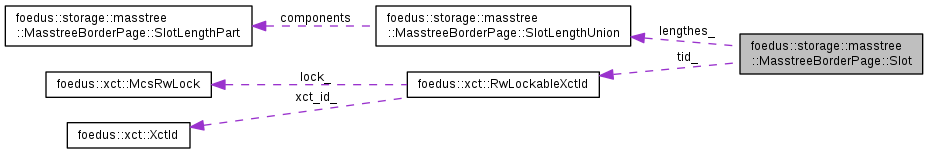

Collaboration diagram for foedus::storage::masstree::MasstreeBorderPage::Slot:

[legend]

Public Member Functions
	Slot ()=delete
	only reinterpret_cast More...

	Slot (const Slot &)=delete

Slot &	operator= (const Slot &)=delete

	~Slot ()=delete

KeyLength	get_aligned_suffix_length () const __attribute__((always_inline))

KeyLength	get_suffix_length () const __attribute__((always_inline))

PayloadLength	get_max_payload_peek () const __attribute__((always_inline))
	This might be affected by concurrent threads. More...

PayloadLength	get_max_payload_stable (SlotLengthPart stable_length) const __attribute__((always_inline))
	This is not affected by concurrent threads. More...

bool	does_point_to_layer () const __attribute__((always_inline))

SlotLengthPart	read_lengthes_oneshot () const __attribute__((always_inline))
	Reads lengthes_ of this slot in one-shot. More...

void	write_lengthes_oneshot (SlotLengthPart new_value) __attribute__((always_inline))
	Writes lengthes_ in one-shot. More...

Public Attributes
xct::RwLockableXctId	tid_
	TID of the record. More...

SlotLengthUnion	lengthes_
	Stores mutable length information of the record. More...

KeyLength	remainder_length_
	Followings are immutable. More...

DataOffset	original_physical_record_length_
	The value of physical_record_length_ as of the creation of this record. More...

DataOffset	original_offset_
	The value of offset_ as of the creation of this record. More...

char	filler_ [2]

Constructor & Destructor Documentation

foedus::storage::masstree::MasstreeBorderPage::Slot::Slot ( )

delete

only reinterpret_cast

foedus::storage::masstree::MasstreeBorderPage::Slot::Slot ( const Slot & )

delete

foedus::storage::masstree::MasstreeBorderPage::Slot::~Slot ( )

delete

Member Function Documentation

bool foedus::storage::masstree::MasstreeBorderPage::Slot::does_point_to_layer ( ) const

inline

Definition at line 560 of file masstree_page_impl.hpp.

References foedus::xct::XctId::is_next_layer(), and foedus::xct::RwLockableXctId::xct_id_.

Referenced by foedus::storage::masstree::MasstreeBorderPage::try_expand_record_in_page_physical(), and foedus::storage::masstree::MasstreeBorderPage::verify_slot_lengthes().

                                                           {
       return tid_.xct_id_.is_next_layer();
     }

Here is the call graph for this function:

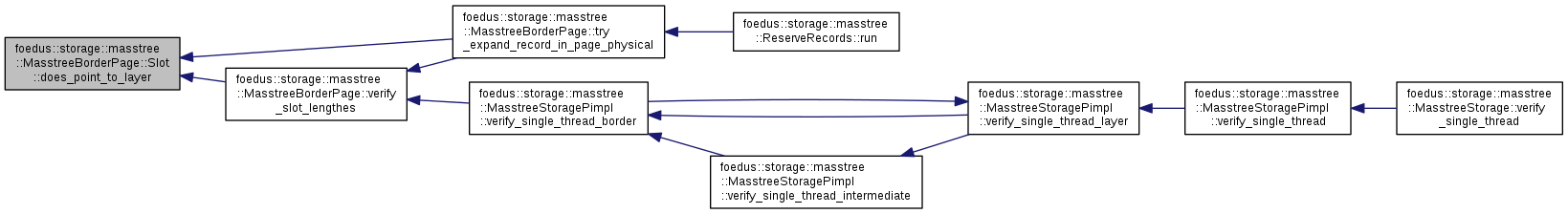

Here is the caller graph for this function:

KeyLength foedus::storage::masstree::MasstreeBorderPage::Slot::get_aligned_suffix_length ( ) const

inline

Definition at line 546 of file masstree_page_impl.hpp.

References foedus::storage::masstree::calculate_suffix_length_aligned().

Referenced by get_max_payload_peek(), and get_max_payload_stable().

                                                                      {
       return calculate_suffix_length_aligned(remainder_length_);
     }

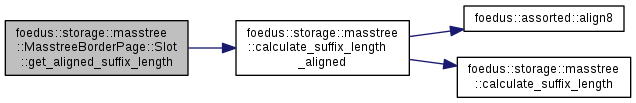

Here is the call graph for this function:

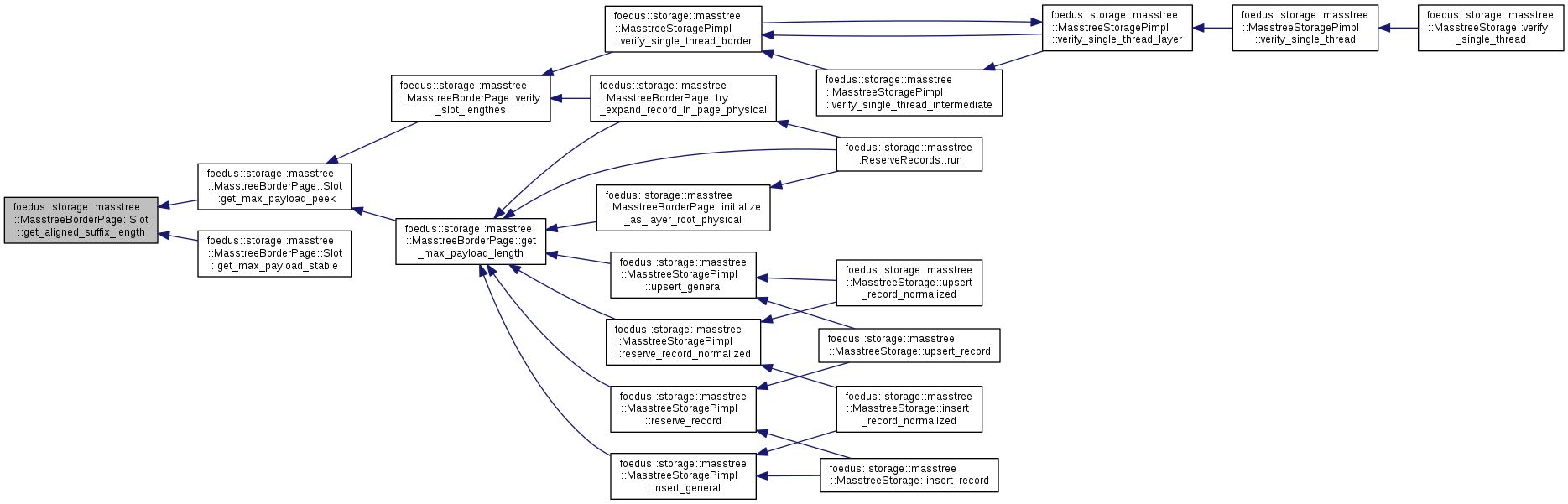

Here is the caller graph for this function:

PayloadLength foedus::storage::masstree::MasstreeBorderPage::Slot::get_max_payload_peek ( ) const

inline

This might be affected by concurrent threads.

Definition at line 553 of file masstree_page_impl.hpp.

References foedus::storage::masstree::MasstreeBorderPage::SlotLengthUnion::components, get_aligned_suffix_length(), and foedus::storage::masstree::MasstreeBorderPage::SlotLengthPart::physical_record_length_.

Referenced by foedus::storage::masstree::MasstreeBorderPage::get_max_payload_length(), and foedus::storage::masstree::MasstreeBorderPage::verify_slot_lengthes().

                                                                     {
       return lengthes_.components.physical_record_length_ - get_aligned_suffix_length();
     }

Here is the call graph for this function:

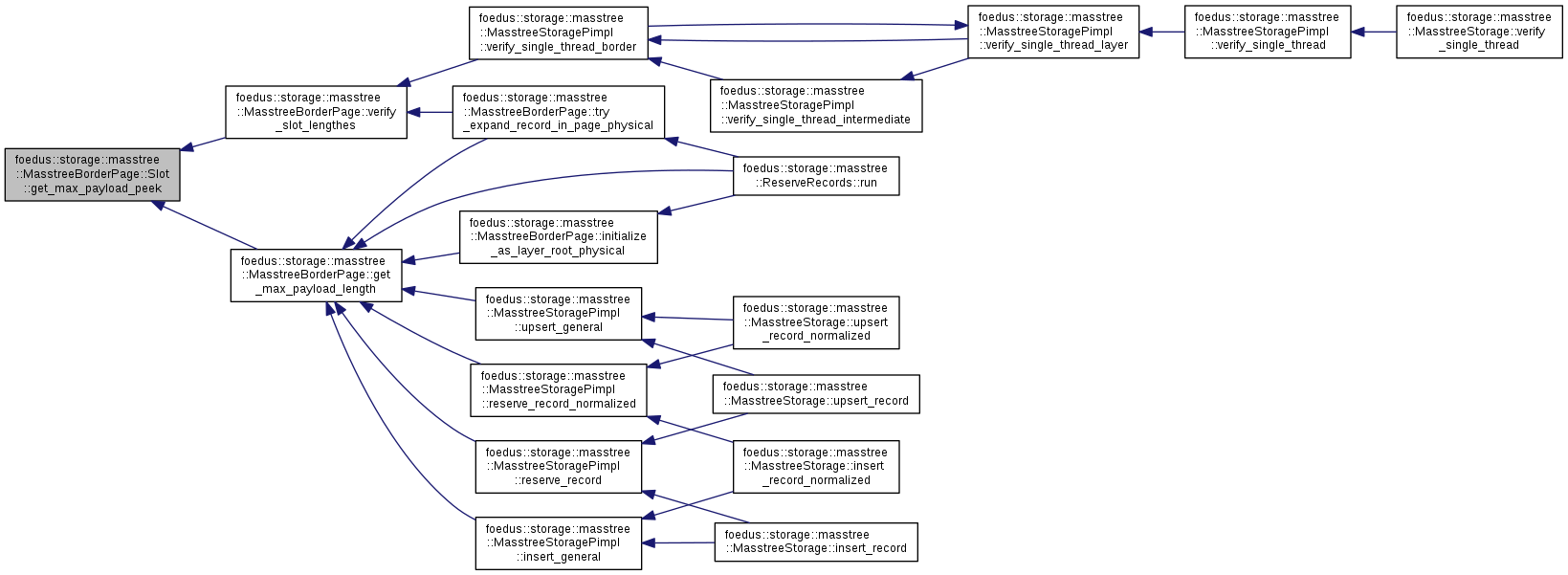

Here is the caller graph for this function:

PayloadLength foedus::storage::masstree::MasstreeBorderPage::Slot::get_max_payload_stable ( SlotLengthPart stable_length ) const

inline

This is not affected by concurrent threads.

Definition at line 557 of file masstree_page_impl.hpp.

References get_aligned_suffix_length().

                                                                                                   {
       return stable_length.physical_record_length_ - get_aligned_suffix_length();
     }

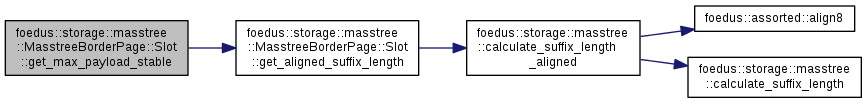

Here is the call graph for this function:

KeyLength foedus::storage::masstree::MasstreeBorderPage::Slot::get_suffix_length ( ) const

inline

Definition at line 549 of file masstree_page_impl.hpp.

References foedus::storage::masstree::calculate_suffix_length().

                                                              {
       return calculate_suffix_length(remainder_length_);
     }

Here is the call graph for this function:

Slot& foedus::storage::masstree::MasstreeBorderPage::Slot::operator= ( const Slot & )

delete

SlotLengthPart foedus::storage::masstree::MasstreeBorderPage::Slot::read_lengthes_oneshot ( ) const

inline

Reads lengthes_ of this slot in one-shot.

It returns a complete value, not half-written, of lengthes_ at some point of time.

Definition at line 568 of file masstree_page_impl.hpp.

References foedus::storage::masstree::MasstreeBorderPage::SlotLengthUnion::components, and foedus::storage::masstree::MasstreeBorderPage::SlotLengthUnion::word.

Referenced by foedus::storage::masstree::MasstreeBorderPage::try_expand_record_in_page_physical().

                                                                       {
       SlotLengthUnion ret;
       ret.word = lengthes_.word;
       return ret.components;
     }

Here is the caller graph for this function:

void foedus::storage::masstree::MasstreeBorderPage::Slot::write_lengthes_oneshot ( SlotLengthPart new_value )

inline

Writes lengthes_ in one-shot.

Use this to update an existing slot. You don't need to use it if you are creating a new slot as there is no race.

Definition at line 577 of file masstree_page_impl.hpp.

References foedus::storage::masstree::MasstreeBorderPage::SlotLengthUnion::components, and foedus::storage::masstree::MasstreeBorderPage::SlotLengthUnion::word.

Referenced by foedus::storage::masstree::MasstreeBorderPage::try_expand_record_in_page_physical().

                                                                                {
       SlotLengthUnion tmp;
       tmp.components = new_value;
       lengthes_.word = tmp.word;
     }

Here is the caller graph for this function:

Member Data Documentation

char foedus::storage::masstree::MasstreeBorderPage::Slot::filler_[2]

Definition at line 538 of file masstree_page_impl.hpp.

SlotLengthUnion foedus::storage::masstree::MasstreeBorderPage::Slot::lengthes_

Stores mutable length information of the record.

Because these are mutable, in some cases you must read this 8-byte in one-shot. Use read_lengthes_oneshot() then.

Definition at line 510 of file masstree_page_impl.hpp.

DataOffset foedus::storage::masstree::MasstreeBorderPage::Slot::original_offset_

The value of offset_ as of the creation of this record.

Immutable once made.

Definition at line 537 of file masstree_page_impl.hpp.

Referenced by foedus::storage::masstree::MasstreeBorderPage::append_next_layer_snapshot(), foedus::storage::masstree::MasstreeBorderPage::initialize_layer_root(), foedus::storage::masstree::MasstreeBorderPage::reserve_initially_next_layer(), foedus::storage::masstree::MasstreeBorderPage::reserve_record_space(), and foedus::storage::masstree::MasstreeBorderPage::verify_slot_lengthes().

DataOffset foedus::storage::masstree::MasstreeBorderPage::Slot::original_physical_record_length_

The value of physical_record_length_ as of the creation of this record.

Immutable once made.

Definition at line 532 of file masstree_page_impl.hpp.

Referenced by foedus::storage::masstree::MasstreeBorderPage::append_next_layer_snapshot(), foedus::storage::masstree::MasstreeBorderPage::initialize_layer_root(), foedus::storage::masstree::MasstreeBorderPage::replace_next_layer_snapshot(), foedus::storage::masstree::MasstreeBorderPage::reserve_initially_next_layer(), foedus::storage::masstree::MasstreeBorderPage::reserve_record_space(), and foedus::storage::masstree::MasstreeBorderPage::verify_slot_lengthes().

KeyLength foedus::storage::masstree::MasstreeBorderPage::Slot::remainder_length_

Followings are immutable.

Length of remainder, the key excluding slices in previous layers, but including this layer (which might be less than 8!) and suffix if exists. 8 is kind of optimal, storing everything in slice. 0-7 also stores everything in slice, but note that you have to distinct the same slice with different length. 9- stores a suffix in this page. 0xFFFF (kInitiallyNextLayer) is a special value that is used only for a record that was initially next-layer. Unlike the original Masstree, this is an immutable property and unchanged even when now this record points to next layer. Immutable once made. Remainder vs Remaining Key

Definition at line 527 of file masstree_page_impl.hpp.

xct::RwLockableXctId foedus::storage::masstree::MasstreeBorderPage::Slot::tid_

TID of the record.

Definition at line 504 of file masstree_page_impl.hpp.

The documentation for this struct was generated from the following file:

/home/shino/foedus_code/foedus-core/include/foedus/storage/masstree/masstree_page_impl.hpp
