return value of MasstreeStoragePimpl::locate_record()/reserve_record(). More...

Detailed Description

return value of MasstreeStoragePimpl::locate_record()/reserve_record().

See foedus::storage::hash::RecordLocation regarding observed_. Masstree's locate_record() is also now a logical operation.

See also: foedus::storage::hash::RecordLocation

Definition at line 39 of file masstree_record_location.hpp.

#include <masstree_record_location.hpp>

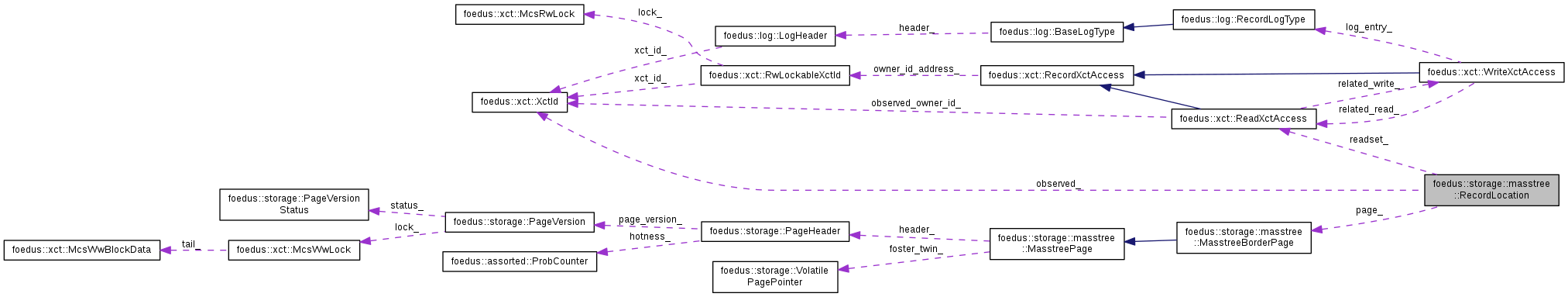

Collaboration diagram for foedus::storage::masstree::RecordLocation:

[legend]

Public Member Functions
bool	is_found () const

void	clear ()

ErrorCode	populate_logical (xct::Xct cur_xct, MasstreeBorderPage page, SlotIndex index, bool intended_for_write)
	Populates the result with XID and possibly readset. More...

Public Attributes
MasstreeBorderPage *	page_
	The border page containing the record. More...

SlotIndex	index_
	Index of the record in the page. More...

xct::XctId	observed_
	TID as of locate_record() identifying the record. More...

xct::ReadXctAccess *	readset_
	If this method took a read-set on the returned record, points to the corresponding read-set. More...

Member Function Documentation

void foedus::storage::masstree::RecordLocation::clear ( )

inline

Definition at line 57 of file masstree_record_location.hpp.

References CXX11_NULLPTR, foedus::xct::XctId::data_, and foedus::storage::masstree::kBorderPageMaxSlots.

Referenced by foedus::storage::masstree::MasstreeStoragePimpl::locate_record(), foedus::storage::masstree::MasstreeStoragePimpl::locate_record_normalized(), foedus::storage::masstree::MasstreeCursor::MasstreeCursor(), foedus::storage::masstree::MasstreeStoragePimpl::reserve_record(), and foedus::storage::masstree::MasstreeStoragePimpl::reserve_record_normalized().

                {
     page_ = CXX11_NULLPTR;
     index_ = kBorderPageMaxSlots;
     observed_.data_ = 0;
     readset_ = CXX11_NULLPTR;
   }

Here is the caller graph for this function:

bool foedus::storage::masstree::RecordLocation::is_found ( ) const

inline

Definition at line 56 of file masstree_record_location.hpp.

References foedus::storage::masstree::kBorderPageMaxSlots.

Referenced by foedus::storage::masstree::MasstreeStorage::insert_record(), foedus::storage::masstree::MasstreeStorage::insert_record_normalized(), foedus::storage::masstree::MasstreeStorage::upsert_record(), and foedus::storage::masstree::MasstreeStorage::upsert_record_normalized().

56 { return index_ != kBorderPageMaxSlots; }

foedus::storage::masstree::kBorderPageMaxSlots

const SlotIndex kBorderPageMaxSlots

Maximum number of slots in one MasstreeBorderPage.

Definition: masstree_id.hpp:163

foedus::storage::masstree::RecordLocation::index_

SlotIndex index_

Index of the record in the page.

Definition: masstree_record_location.hpp:43

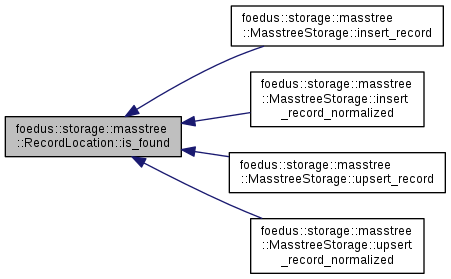

Here is the caller graph for this function:

ErrorCode foedus::storage::masstree::RecordLocation::populate_logical	(	xct::Xct *	cur_xct,
		MasstreeBorderPage *	page,
		SlotIndex	index,
		bool	intended_for_write
	)

Populates the result with XID and possibly readset.

This is a logical operation that might take a readset.

Definition at line 27 of file masstree_record_location.cpp.

References ASSERT_ND, CHECK_ERROR_CODE, foedus::storage::masstree::MasstreeBorderPage::get_owner_id(), index_, foedus::xct::XctId::is_being_written(), foedus::xct::XctId::is_moved(), foedus::xct::XctId::is_next_layer(), foedus::xct::XctId::is_valid(), foedus::kErrorCodeOk, observed_, foedus::xct::Xct::on_record_read(), page_, and readset_.

Referenced by foedus::storage::masstree::MasstreeStoragePimpl::locate_record(), foedus::storage::masstree::MasstreeStoragePimpl::locate_record_normalized(), foedus::storage::masstree::MasstreeStoragePimpl::reserve_record(), and foedus::storage::masstree::MasstreeStoragePimpl::reserve_record_normalized().

                            {
   page_ = page;
   index_ = index;
   readset_ = nullptr;

   // [Logical check]: Read XID in a finalized fashion. If we found it "moved",
   // then we don't need to remember it as read-set.
   CHECK_ERROR_CODE(cur_xct->on_record_read(
     intended_for_write,
     page->get_owner_id(index),
     &observed_,
     &readset_,
     true,       // no_readset_if_moved. see below
     true));     // no_readset_if_next_layer. see below
   ASSERT_ND(!observed_.is_being_written());
   ASSERT_ND(observed_.is_valid());

   if (observed_.is_moved() || observed_.is_next_layer()) {
     // Once it becomes a next-layer or moved pointer, it never goes back to a normal record.
     // so, there is no point to keep the read-set acquired in on_record_read().
     // We thus give parameters above that tell on_record_read() to not take read-set in the case.
     ASSERT_ND(readset_ == nullptr);  // let's confirm it
   }
   return kErrorCodeOk;
 }

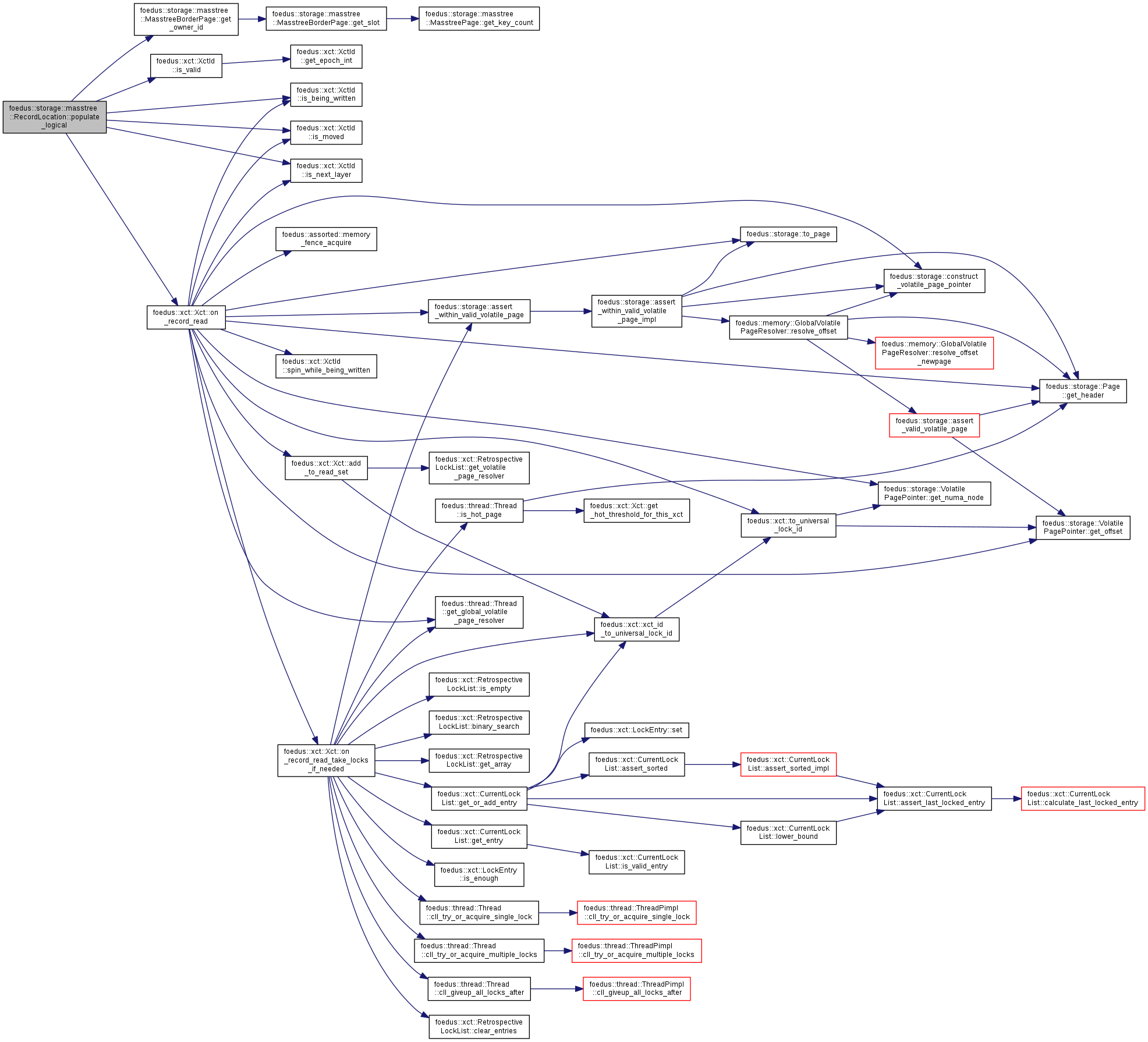

Here is the call graph for this function:

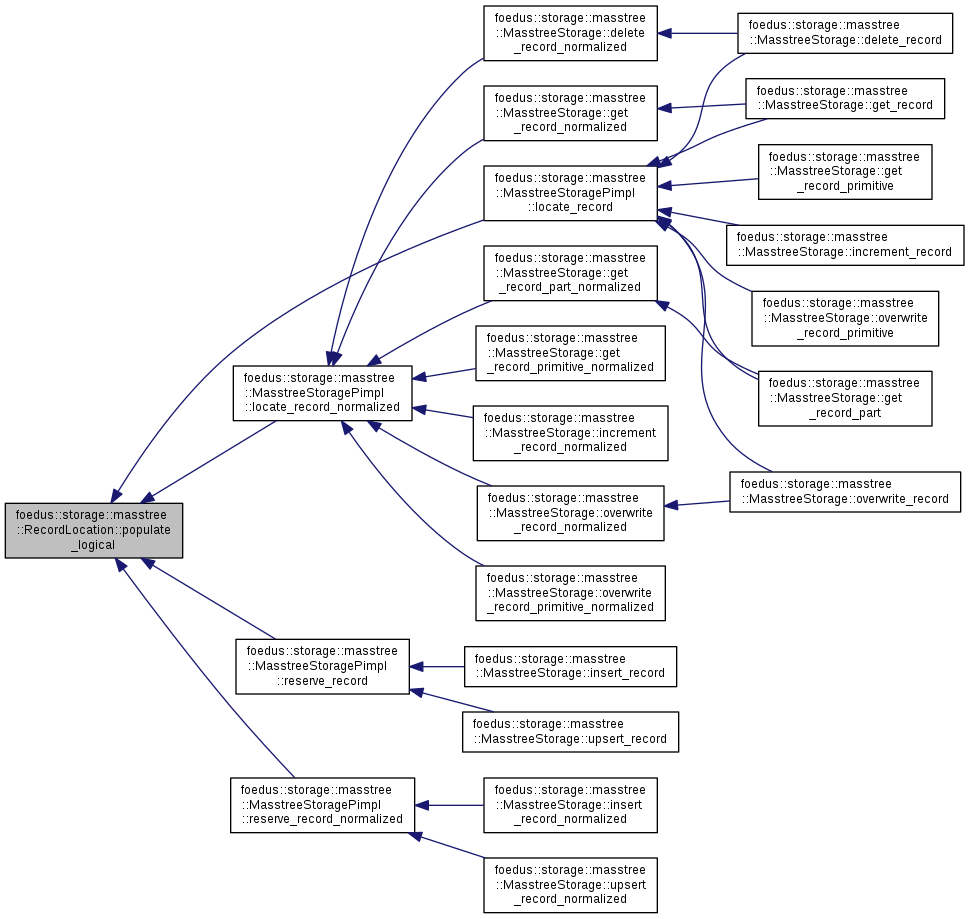

Here is the caller graph for this function:

Member Data Documentation

SlotIndex foedus::storage::masstree::RecordLocation::index_

Index of the record in the page.

kBorderPageMaxSlots if not found.

Definition at line 43 of file masstree_record_location.hpp.

Referenced by foedus::storage::masstree::MasstreeStoragePimpl::increment_general(), foedus::storage::masstree::MasstreeStoragePimpl::insert_general(), foedus::storage::masstree::MasstreeStoragePimpl::overwrite_general(), populate_logical(), foedus::storage::masstree::MasstreeStoragePimpl::register_record_write_log(), foedus::storage::masstree::MasstreeStoragePimpl::retrieve_general(), foedus::storage::masstree::MasstreeStoragePimpl::retrieve_part_general(), and foedus::storage::masstree::MasstreeStoragePimpl::upsert_general().

xct::XctId foedus::storage::masstree::RecordLocation::observed_

TID as of locate_record() identifying the record.

See foedus::storage::hash::RecordLocation.

Definition at line 48 of file masstree_record_location.hpp.

MasstreeBorderPage* foedus::storage::masstree::RecordLocation::page_

The border page containing the record.

Definition at line 41 of file masstree_record_location.hpp.

xct::ReadXctAccess* foedus::storage::masstree::RecordLocation::readset_

If this method took a read-set on the returned record, points to the corresponding read-set.

Otherwise nullptr.

Definition at line 54 of file masstree_record_location.hpp.

Referenced by populate_logical(), and foedus::storage::masstree::MasstreeStoragePimpl::register_record_write_log().

The documentation for this struct was generated from the following files:

/home/shino/foedus_code/foedus-core/include/foedus/storage/masstree/masstree_record_location.hpp
/home/shino/foedus_code/foedus-core/src/foedus/storage/masstree/masstree_record_location.cpp
