Represents one data page in Array Storage. More...

Detailed Description

Represents one data page in Array Storage.

This is a private implementation-details of Array Storage, thus file name ends with _impl. Do not include this header from a client program unless you know what you are doing.

Attention: Do NOT instantiate this object or derive from this class. A page is always reinterpret-ed from a pooled memory region. No meaningful RTTI.

Definition at line 46 of file array_page_impl.hpp.

#include <array_page_impl.hpp>

Classes
union	Data
	Data union for either leaf (dynamic size) or interior (fixed size). More...

Public Member Functions
	ArrayPage ()=delete

	ArrayPage (const ArrayPage &other)=delete

ArrayPage &	operator= (const ArrayPage &other)=delete

PageHeader &	header ()

const PageHeader &	header () const

StorageId	get_storage_id () const

uint16_t	get_leaf_record_count () const

uint16_t	get_payload_size () const

bool	is_leaf () const

uint8_t	get_level () const

const ArrayRange &	get_array_range () const

void	initialize_snapshot_page (Epoch initial_epoch, StorageId storage_id, SnapshotPagePointer page_id, uint16_t payload_size, uint8_t level, const ArrayRange &array_range)
	Called only when this page is initialized. More...

void	initialize_volatile_page (Epoch initial_epoch, StorageId storage_id, VolatilePagePointer page_id, uint16_t payload_size, uint8_t level, const ArrayRange &array_range)

const Record *	get_leaf_record (uint16_t record, uint16_t payload_size) const __attribute__((always_inline))

Record *	get_leaf_record (uint16_t record, uint16_t payload_size) __attribute__((always_inline))

const DualPagePointer &	get_interior_record (uint16_t record) const __attribute__((always_inline))

DualPagePointer &	get_interior_record (uint16_t record) __attribute__((always_inline))

uint8_t	unused_dummy_func_reserved1 () const

uint32_t	unused_dummy_func_reserved2 () const

Constructor & Destructor Documentation

foedus::storage::array::ArrayPage::ArrayPage ( )

delete

foedus::storage::array::ArrayPage::ArrayPage ( const ArrayPage & other )

delete

Member Function Documentation

const ArrayRange& foedus::storage::array::ArrayPage::get_array_range ( ) const

inline

Definition at line 72 of file array_page_impl.hpp.

Referenced by foedus::storage::array::array_volatile_page_init(), foedus::storage::array::ArrayComposer::construct_root(), foedus::storage::array::ArrayComposeContext::execute(), foedus::storage::array::ArrayStoragePimpl::locate_record_for_read(), foedus::storage::array::ArrayStoragePimpl::locate_record_for_write(), foedus::storage::array::ArrayStoragePimpl::lookup_for_read(), foedus::storage::array::ArrayStoragePimpl::lookup_for_write(), and foedus::storage::array::ArrayStoragePimpl::prefetch_pages_recurse().

72 { return array_range_; }

Here is the caller graph for this function:

const DualPagePointer& foedus::storage::array::ArrayPage::get_interior_record ( uint16_t record ) const

inline

Definition at line 105 of file array_page_impl.hpp.

                                                                                     {
     return const_cast<ArrayPage*>(this)->get_interior_record(record);
   }

Here is the caller graph for this function:

DualPagePointer& foedus::storage::array::ArrayPage::get_interior_record ( uint16_t record )

inline

Definition at line 108 of file array_page_impl.hpp.

References ASSERT_ND, foedus::storage::array::ArrayPage::Data::interior_data, is_leaf(), and foedus::storage::array::kInteriorFanout.

                                                                               {
     ASSERT_ND(!is_leaf());
     ASSERT_ND(record < kInteriorFanout);
     return data_.interior_data[record];
   }

Here is the call graph for this function:

const Record* foedus::storage::array::ArrayPage::get_leaf_record	(	uint16_t	record,
		uint16_t	payload_size
	)		const

inline

Definition at line 91 of file array_page_impl.hpp.

References foedus::assorted::align8(), ASSERT_ND, is_leaf(), foedus::storage::array::kDataSize, foedus::storage::kRecordOverhead, and foedus::storage::array::ArrayPage::Data::leaf_data.

                                                                                              {
     ASSERT_ND(payload_size_ == payload_size);
     ASSERT_ND(is_leaf());
     ASSERT_ND((record + 1) * (kRecordOverhead + assorted::align8(payload_size_)) <= kDataSize);
     return reinterpret_cast<const Record*>(
       data_.leaf_data + record * (kRecordOverhead + assorted::align8(payload_size_)));
   }

Here is the call graph for this function:

Here is the caller graph for this function:

Record* foedus::storage::array::ArrayPage::get_leaf_record	(	uint16_t	record,
		uint16_t	payload_size
	)

inline

Definition at line 98 of file array_page_impl.hpp.

References foedus::assorted::align8(), ASSERT_ND, is_leaf(), foedus::storage::array::kDataSize, foedus::storage::kRecordOverhead, and foedus::storage::array::ArrayPage::Data::leaf_data.

                                                                                         {
     ASSERT_ND(payload_size_ == payload_size);
     ASSERT_ND(is_leaf());
     ASSERT_ND((record + 1) * (kRecordOverhead + assorted::align8(payload_size_)) <= kDataSize);
     return reinterpret_cast<Record*>(
       data_.leaf_data + record * (kRecordOverhead + assorted::align8(payload_size_)));
   }

Here is the call graph for this function:

uint16_t foedus::storage::array::ArrayPage::get_leaf_record_count ( ) const

inline

Definition at line 66 of file array_page_impl.hpp.

References foedus::assorted::align8(), foedus::storage::array::kDataSize, and foedus::storage::kRecordOverhead.

Referenced by initialize_snapshot_page(), initialize_volatile_page(), and foedus::storage::array::ArrayStoragePimpl::verify_single_thread().

                                                      {
     return kDataSize / (kRecordOverhead + assorted::align8(payload_size_));
   }

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t foedus::storage::array::ArrayPage::get_level ( ) const

inline

Definition at line 71 of file array_page_impl.hpp.

Referenced by foedus::storage::array::array_volatile_page_init(), foedus::storage::array::ArrayStoragePimpl::follow_pointer(), foedus::storage::array::ArrayStoragePimpl::follow_pointers_for_read_batch(), foedus::storage::array::ArrayStoragePimpl::follow_pointers_for_write_batch(), foedus::storage::array::ArrayStoragePimpl::hcc_reset_all_temperature_stat_intermediate(), and foedus::storage::array::ArrayStoragePimpl::prefetch_pages_recurse().

71 { return level_; }

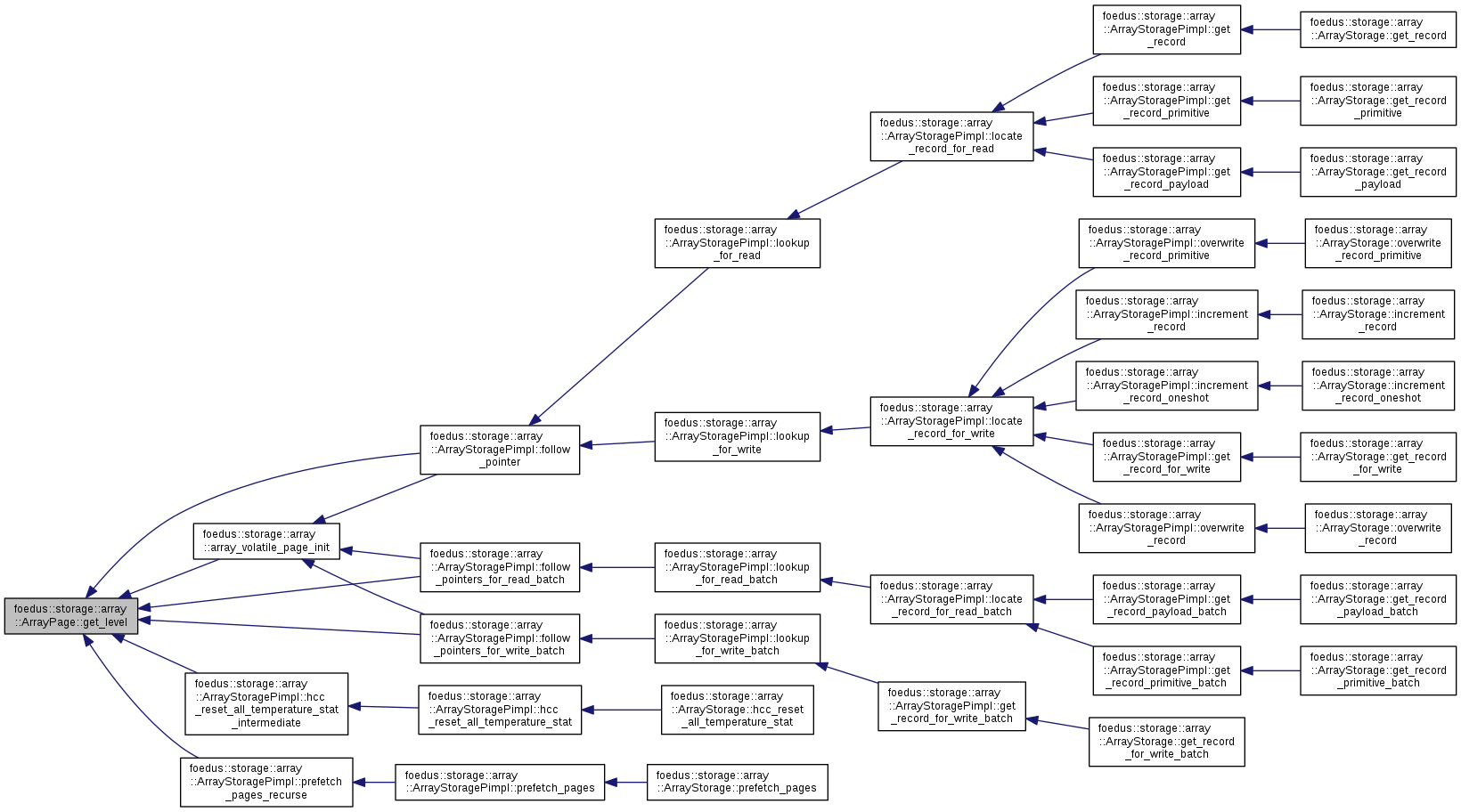

Here is the caller graph for this function:

uint16_t foedus::storage::array::ArrayPage::get_payload_size ( ) const

inline

Definition at line 69 of file array_page_impl.hpp.

69 { return payload_size_; }

StorageId foedus::storage::array::ArrayPage::get_storage_id ( ) const

inline

Definition at line 65 of file array_page_impl.hpp.

References foedus::storage::PageHeader::storage_id_.

Referenced by foedus::storage::array::array_volatile_page_init().

65 { return header_.storage_id_; }

foedus::storage::PageHeader::storage_id_

StorageId storage_id_

ID of the storage this page belongs to.

Definition: page.hpp:196

Here is the caller graph for this function:

PageHeader& foedus::storage::array::ArrayPage::header ( )

inline

Definition at line 63 of file array_page_impl.hpp.

63 { return header_; }

Here is the caller graph for this function:

const PageHeader& foedus::storage::array::ArrayPage::header ( ) const

inline

Definition at line 64 of file array_page_impl.hpp.

64 { return header_; }

void foedus::storage::array::ArrayPage::initialize_snapshot_page	(	Epoch	initial_epoch,
		StorageId	storage_id,
		SnapshotPagePointer	page_id,
		uint16_t	payload_size,
		uint8_t	level,
		const ArrayRange &	array_range
	)

Called only when this page is initialized.

Definition at line 32 of file array_page_impl.cpp.

References ASSERT_ND, get_leaf_record(), get_leaf_record_count(), foedus::storage::PageHeader::init_snapshot(), is_leaf(), foedus::Epoch::is_valid(), foedus::storage::kArrayPageType, and foedus::storage::kPageSize.

Referenced by foedus::storage::array::ArrayComposer::construct_root().

                                  {
   ASSERT_ND(initial_epoch.is_valid());
   std::memset(this, 0, kPageSize);
   header_.init_snapshot(page_id, storage_id, kArrayPageType);
   payload_size_ = payload_size;
   level_ = level;
   array_range_ = array_range;
   if (is_leaf()) {
     uint16_t records = get_leaf_record_count();
     for (uint16_t i = 0; i < records; ++i) {
       auto* rec = get_leaf_record(i, payload_size);
       rec->owner_id_.lock_.reset();
       rec->owner_id_.xct_id_.set_epoch(initial_epoch);
     }
   }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void foedus::storage::array::ArrayPage::initialize_volatile_page	(	Epoch	initial_epoch,
		StorageId	storage_id,
		VolatilePagePointer	page_id,
		uint16_t	payload_size,
		uint8_t	level,
		const ArrayRange &	array_range
	)

Definition at line 55 of file array_page_impl.cpp.

References ASSERT_ND, get_leaf_record(), get_leaf_record_count(), foedus::storage::PageHeader::init_volatile(), is_leaf(), foedus::Epoch::is_valid(), foedus::storage::kArrayPageType, and foedus::storage::kPageSize.

Referenced by foedus::storage::array::array_volatile_page_init(), and foedus::storage::array::ArrayStoragePimpl::load_empty().

                                  {
   ASSERT_ND(initial_epoch.is_valid());
   std::memset(this, 0, kPageSize);
   header_.init_volatile(page_id, storage_id, kArrayPageType);
   payload_size_ = payload_size;
   level_ = level;
   array_range_ = array_range;
   if (is_leaf()) {
     uint16_t records = get_leaf_record_count();
     for (uint16_t i = 0; i < records; ++i) {
       auto* rec = get_leaf_record(i, payload_size);
       rec->owner_id_.lock_.reset();
       rec->owner_id_.xct_id_.set_epoch(initial_epoch);
     }
   }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool foedus::storage::array::ArrayPage::is_leaf ( ) const

inline

Definition at line 70 of file array_page_impl.hpp.

70 { return level_ == 0; }

Here is the caller graph for this function:

ArrayPage& foedus::storage::array::ArrayPage::operator= ( const ArrayPage & other )

delete

uint8_t foedus::storage::array::ArrayPage::unused_dummy_func_reserved1 ( ) const

inline

Definition at line 114 of file array_page_impl.hpp.

114 { return reserved1_; }

uint32_t foedus::storage::array::ArrayPage::unused_dummy_func_reserved2 ( ) const

inline

Definition at line 115 of file array_page_impl.hpp.

115 { return reserved2_; }

The documentation for this class was generated from the following files:

/home/shino/foedus_code/foedus-core/include/foedus/storage/array/array_page_impl.hpp
/home/shino/foedus_code/foedus-core/src/foedus/storage/array/array_page_impl.cpp
